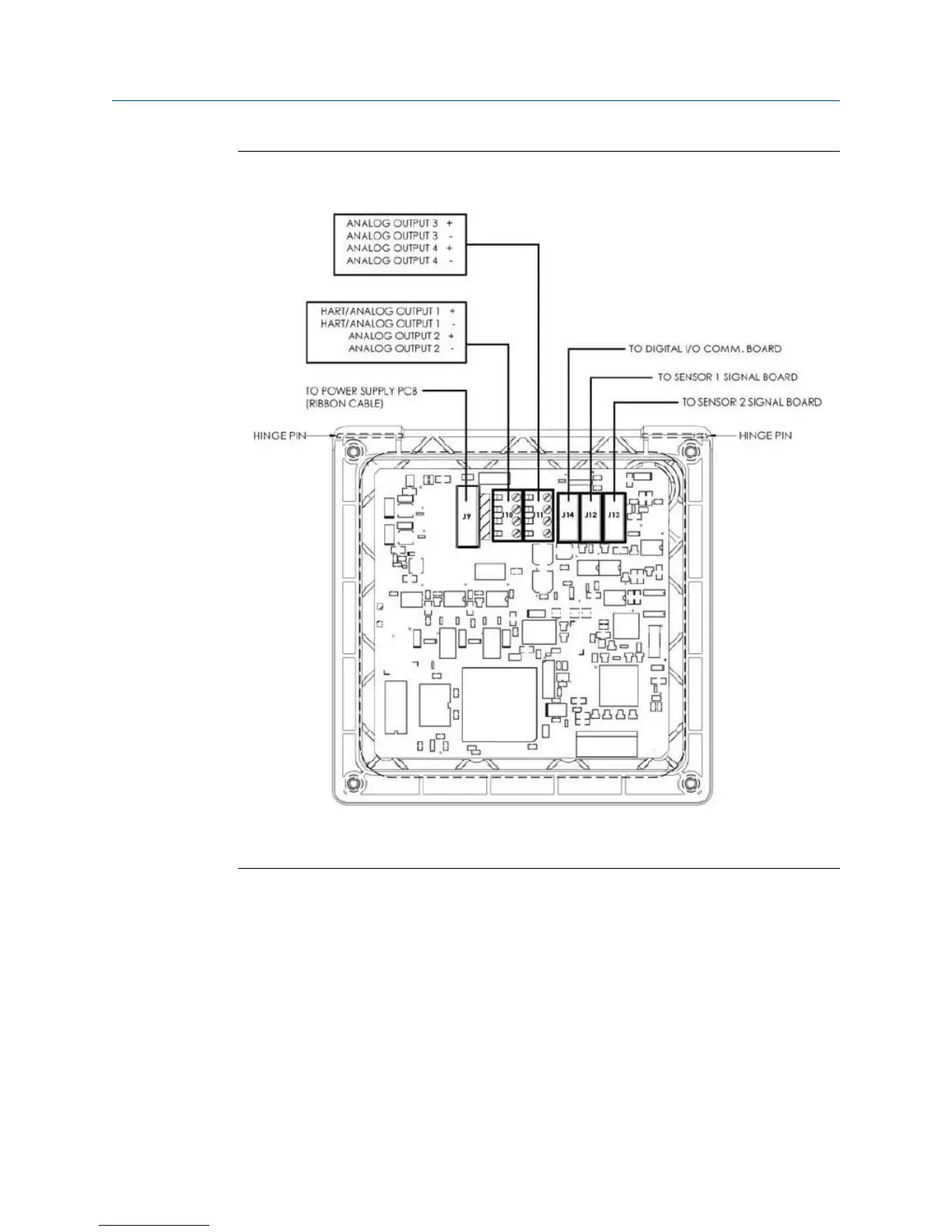

Analog output connectionsFigure 4-2:
The analog outputs are on the main board near the hinged end of the enclosure door.
For best EMI/RFI protection, use shielded output signal cable enclosed in earth-grounded
metal conduit.
Keep output signal wiring separate from power wiring. Do not run signal and power or
relay wiring in the same conduit or close together in a cable tray.
4.3.3 Alarm wiring
The alarm relay terminal strip is located on the power supply board, which is mounted on
the left hand side of the enclosure beneath the gray plastic cover.
See Figure 4-3.
Wiring
20 Rosemount TCL
