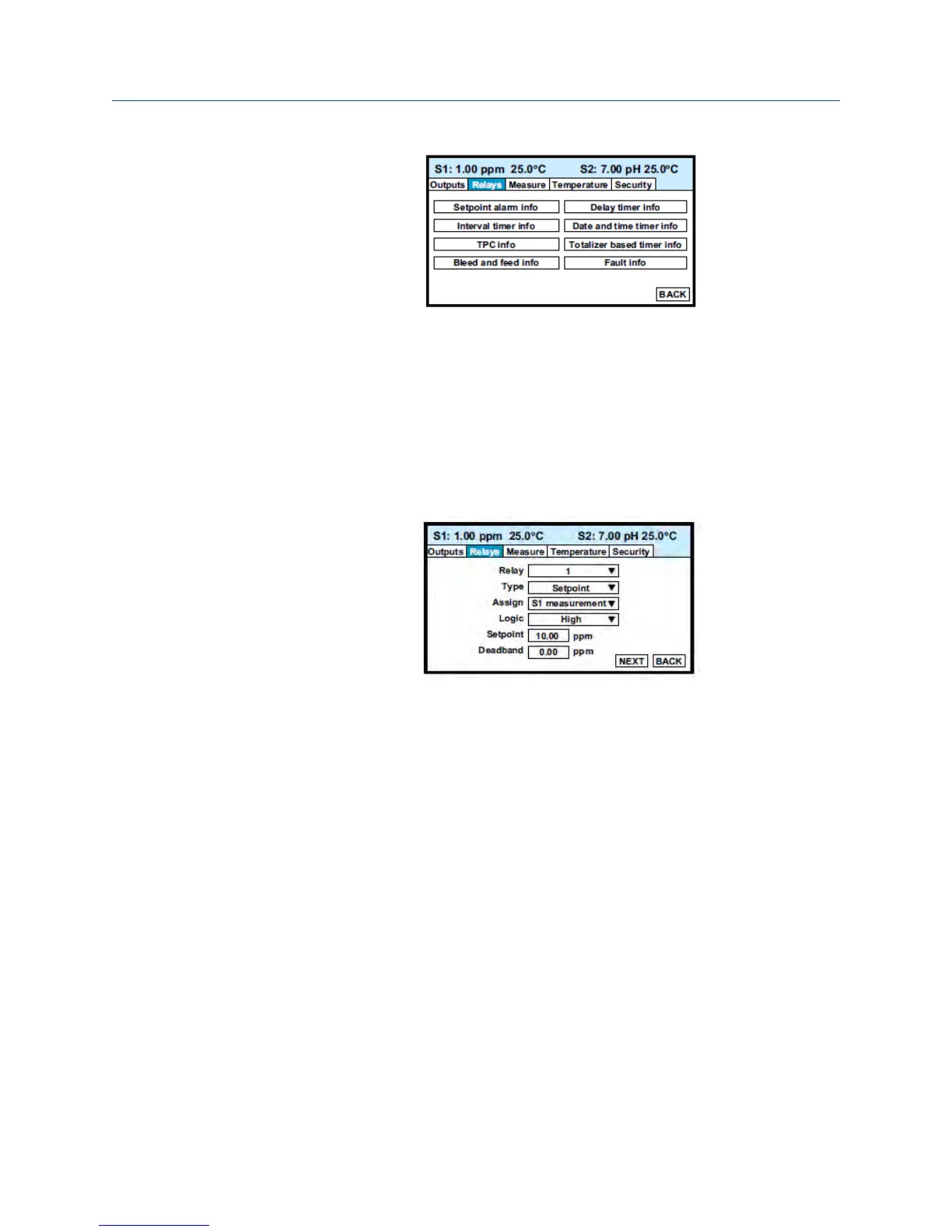

2. Select the desired relay action and press INFO to display the information screen.
3.
To close the information screen, press any key.
The totalizer-based relay timer is not available with the model 56 offered as
standard options with the TCL. It is available only if one of the measurements is flow.
4. To configure a relay, press EXIT to return to the first screen.
5. Move the cursor to the Configure relay button and press ENTER/MENU.
A screen similar to the one below appears.
6. Move the cursor to the appropriate control box and make the desired setting.
7.
For more information about the control the cursor is on, press INFO.
8. To close the information screen, press any key.
7.4 Measurement
7.4.1 Menu tree
Figure 7-3 is the Measurement menu tree.
Programming the transmitter
40 Rosemount TCL
