7.2 Outputs
7.2.1 Menu tree
Figure 7-1 is the Outputs menu tree.

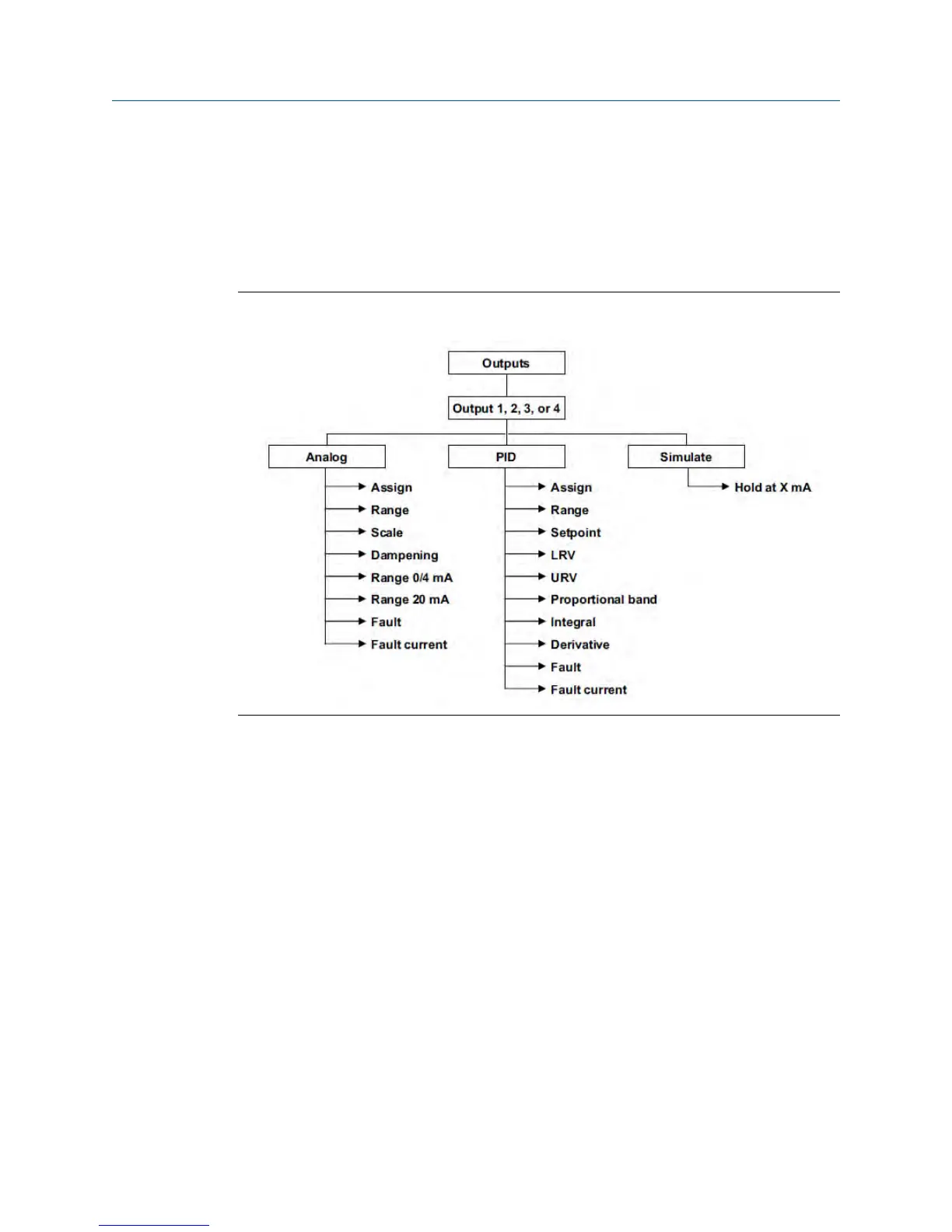

Menu tree for the Outputs submenuFigure 7-1:
7.2.2 Settings
Move the cursor to the appropriate control box and press the desired setting. For more
information about the control box the cursor is on, press INFO. To close the information
screen, press any key.
7.3 Relays
7.3.1 Menu tree
Figure 7-2 is the Relays menu tree.
Programming the transmitter
38 Rosemount TCL
