6.2 Keypad
Local communication with the transmitter is through the membrane keypad.
See Figure 6-2.

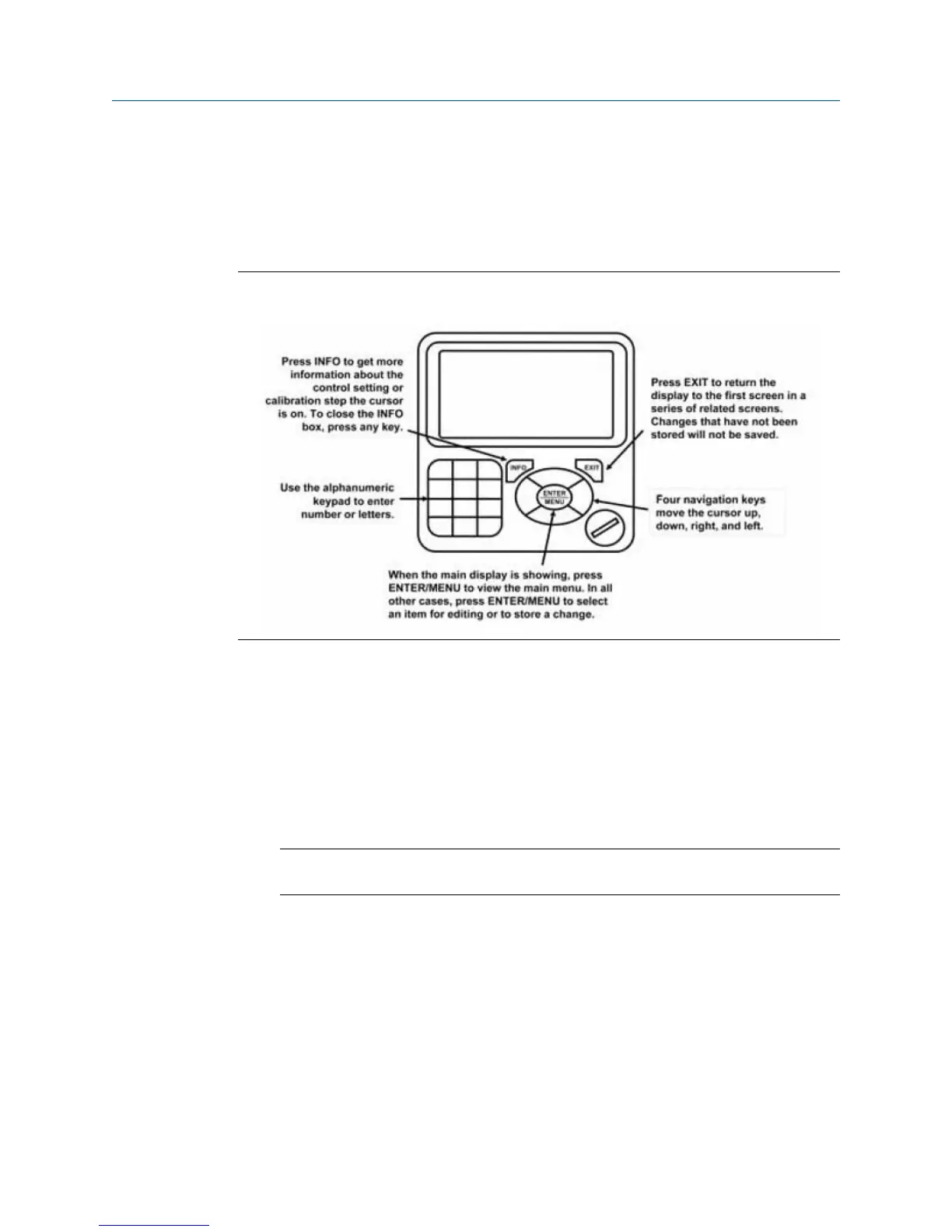

Transmitter KeypadFigure 6-2:
6.3 Operation
The operation of the Rosemount 56 Transmitter can best be understood from the
following example.
1.
With the main display showing (Figure 6-1), press ENTER/MENU.
The main Menu, shown below, appears.
Important
Pressing the ENTER/MENU key will bring up the main Menu only if the main display is showing.
Note that the current reading and temperature for sensor 1 (S1) and sensor 2 (S2),
if applicable, always appear at the top of the screen.
The cursor (dark blue backlit field) is on Calibrate.
Display and operation
28 Rosemount TCL
