3. To view the graphs, move the cursor to the View graph button and press ENTER/
MENU.
The time axis can be expanded or shrunk.
4.
To expand the time scale, use Left or Right to move the pair of dotted green lines to
the area of interest. Press Up to expand the graph. To shrink the time axis, press
Down.

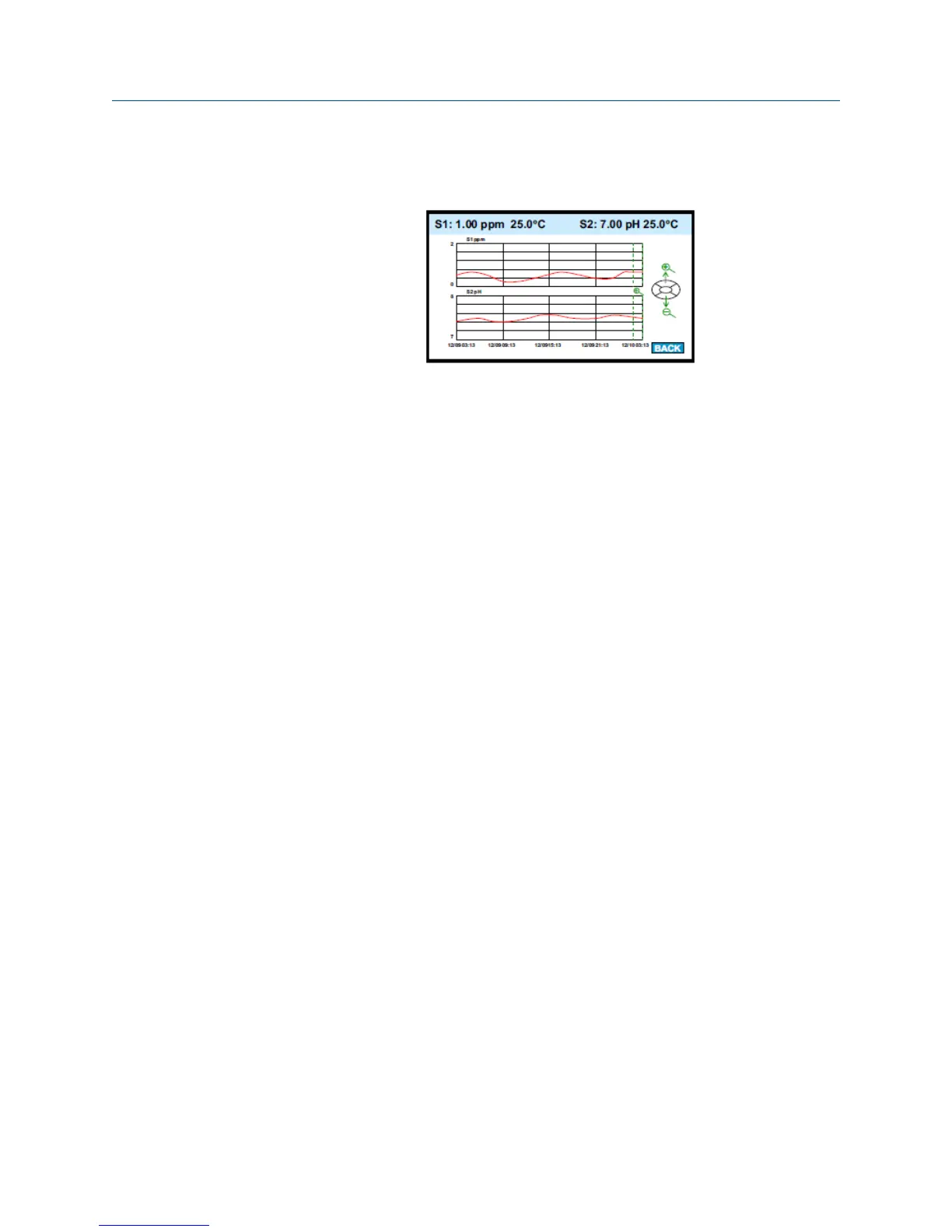

Graphical display
50 Rosemount TCL
