During installation into a metal panel, care should be taken to avoid injury from metal burrs
which might be present. The equipment can loosen from vibration and become dislodged if
installation parts are not properly tightened. These precautions for the safety of the person
who does the panel mounting.
1. Before mounting the device in your panel, make sure that the cut-out is of the right size
2. Make sure that the diameter of the holes are of the right size and coordinate of the holes are true.
3. Check front panel gasket position
4. Insert the device through the cut-out. If the mounting screws are on the unit, put out them before inserting the
unit to the panel.
c
1
3
2
22
2
4

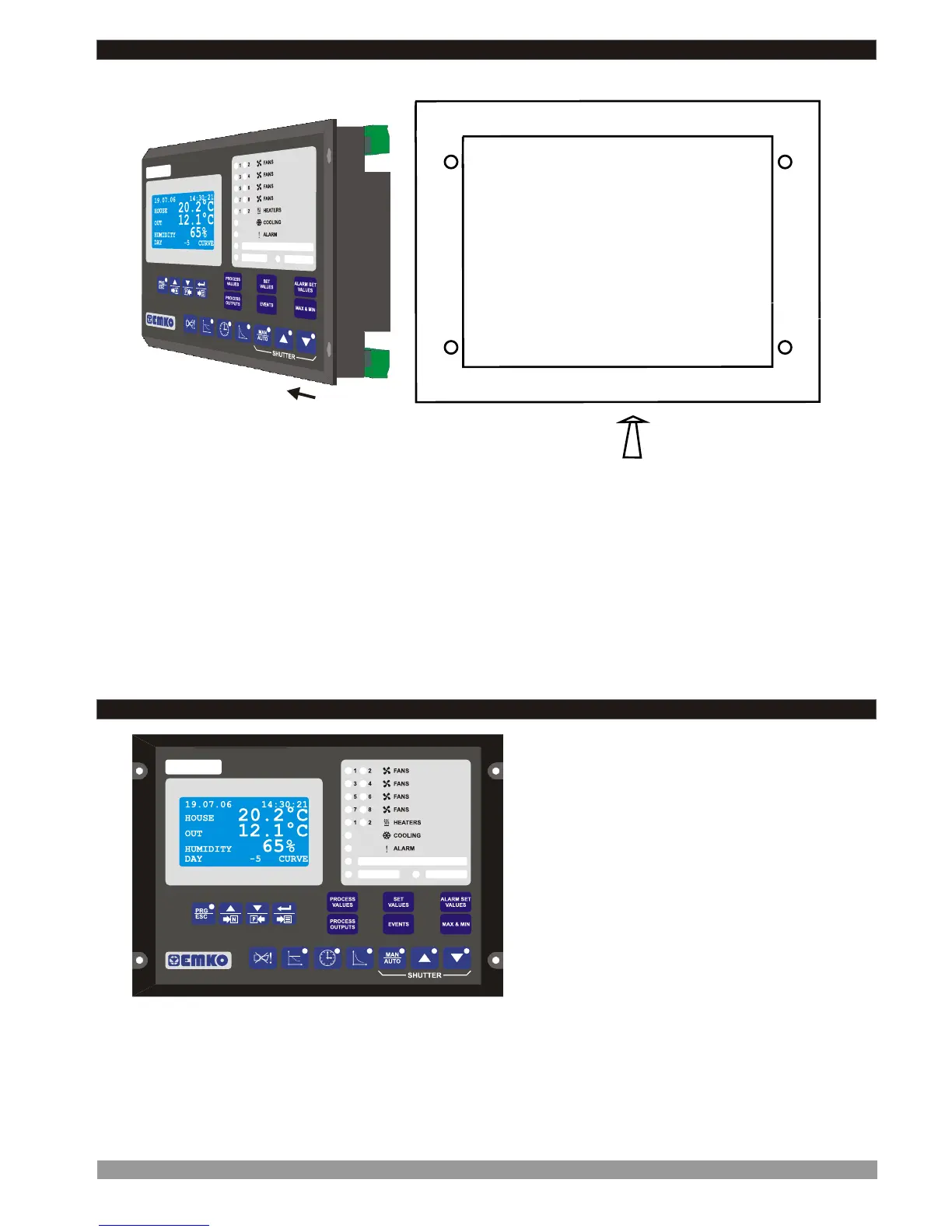

The unit is designed for panel mounting.
1. Insert the unit in the panel cut-out from the front
side.
2. Insert the fixings through the mounting holes and
tighten the fixing screws to secure the unit against
the panel.
Fixing is
done by four screw fixings.
Montage of the unit to a system must be done with it’s own fixing screws. Do not do the montage of
the device with inappropriate fixing screws. Be sure that device will not fall while doing the
montage.
During mechanical installation, beware of any sharp burrs on the metal panel aperture.
Ensure that the fixings are properly tightened to prevent the fixings becoming loose due to
panel vibration.
c
2.6 PANEL MOUNTING
2.7 INSTALLATION FIXING SCREWS
12
