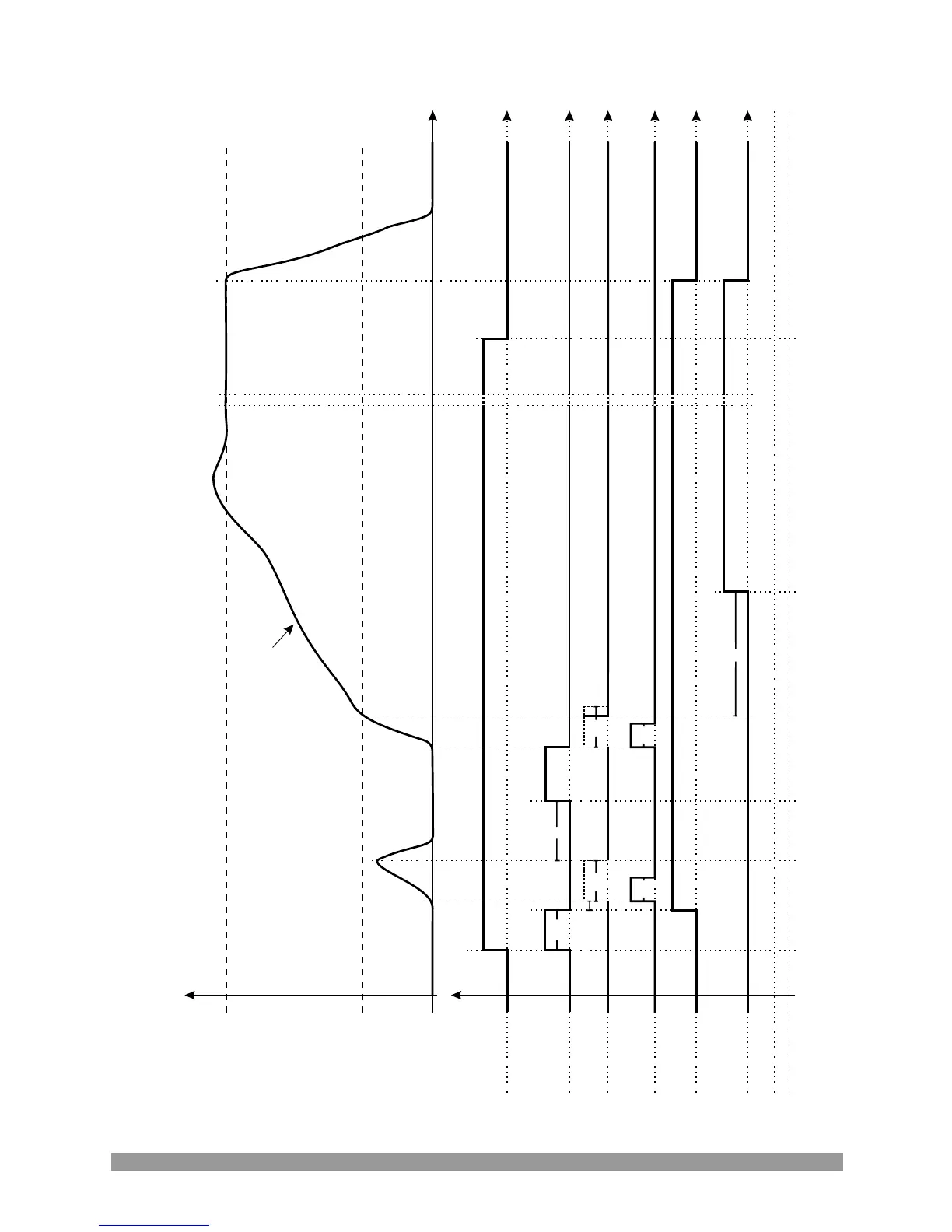

Start/Stop Diagram for GASOLINE ENGINE
Start request
Pre-heat Starter Fuel relay Choke Engine
monitoring ON
Rated speed
[RPM]
t[s]
Starting Unsuccessful
Successful
Stopping
tPH
2s
[1/min;RPM]
t[s] t[s] t[s] t[s] t[s]
tR
tCR
tCR
tD
Crank disconnect
magnetic pick-up speed
tCH
tCH
tPH Preheating time [s]
tCR Engagement time [s]
tR Interval between 2 start attempts [s]
tD Engine delayed monitoring [s]
tCH Choke time [s]
