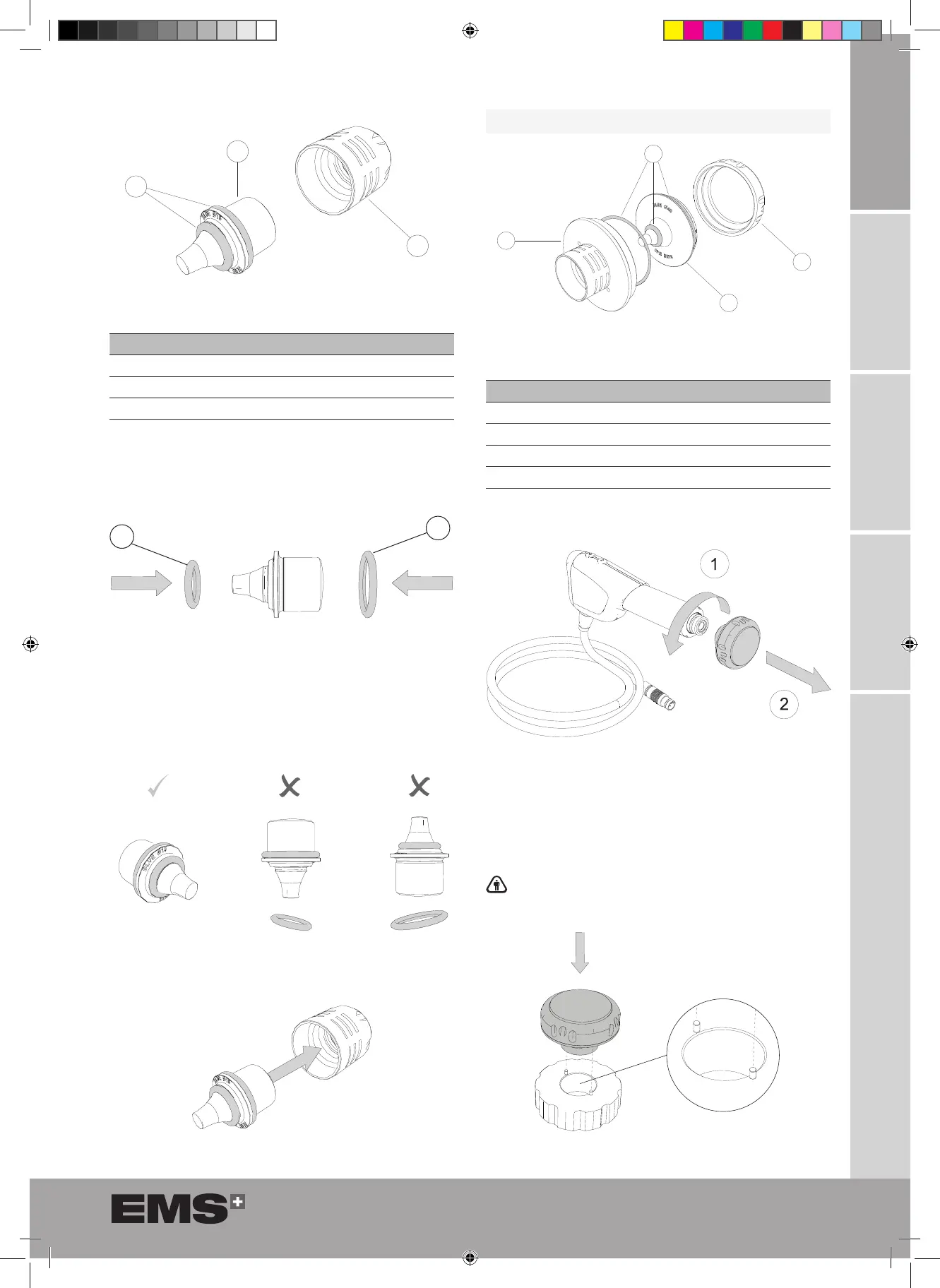

Figure 64
REF DESIGNATION QUANTITY
1 O-rings 2
2 Applicator 1
3 Nose 1
1. Place the O-ring 1a on the applicator.
2. Place the O-ring 1b on the applicator.
Figure 65
3. To make sure that the O-ring is in the correct position,
invert the applicator and check that the O-ring stays
in position.
Figure 66
4. Insert the applicator in the nose.
Figure 67
8.1.2.2. For 25-mm and 40-mm Applicators
Figure 68
REF DESIGNATION QUANTITY
1 Nose 1
2 O-rings 3
3 Applicator 1
4 Nut 1
1. Remove the applicator from the handpiece.
Figure 69
2. Place the applicator on the support. Make sure to align
the positioning pins on the support with the corre-
sponding pin holes on the applicator. This prevents
the applicator from turning.
There are two pins on the support that need to be
attached to join the applicator.
Figure 70
1b
1a
