30

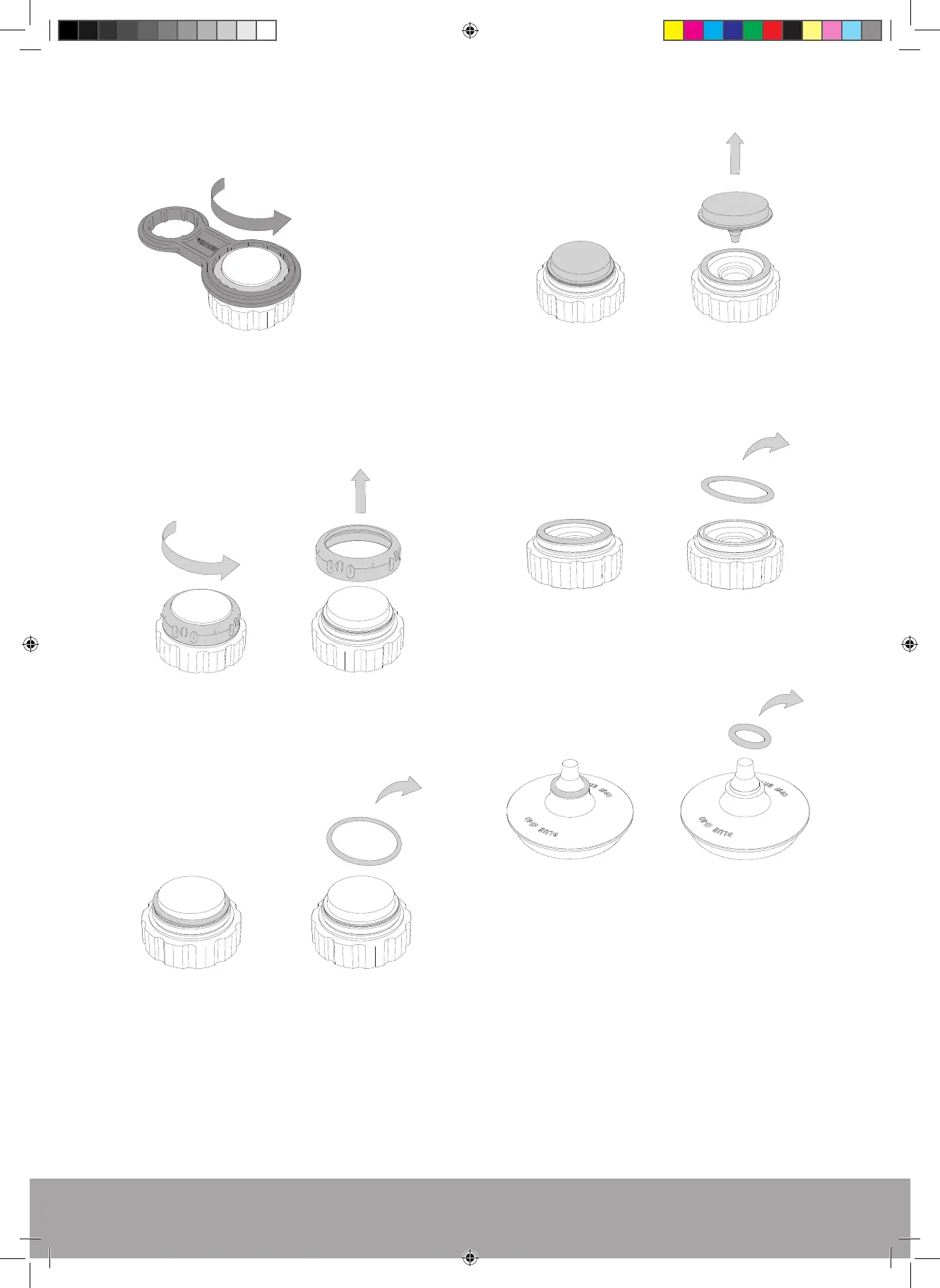

3. Fit the large wrench on the applicator and hold the
support with your hand. Turn the wrench to loosen
the nut.
Figure 71
4. Finish unscrewing the nut manually and remove it
from the applicator. Lift the applicator to access the
O-rings.
Figure 72
5. To replace the O-rings, you need to remove them one
by one. Remove the rst large O-ring.
Figure 73
6. Remove the nose.
Figure 74
7. Remove the second large O-ring.
Figure 75
8. Remove the small O-ring.
Figure 76
