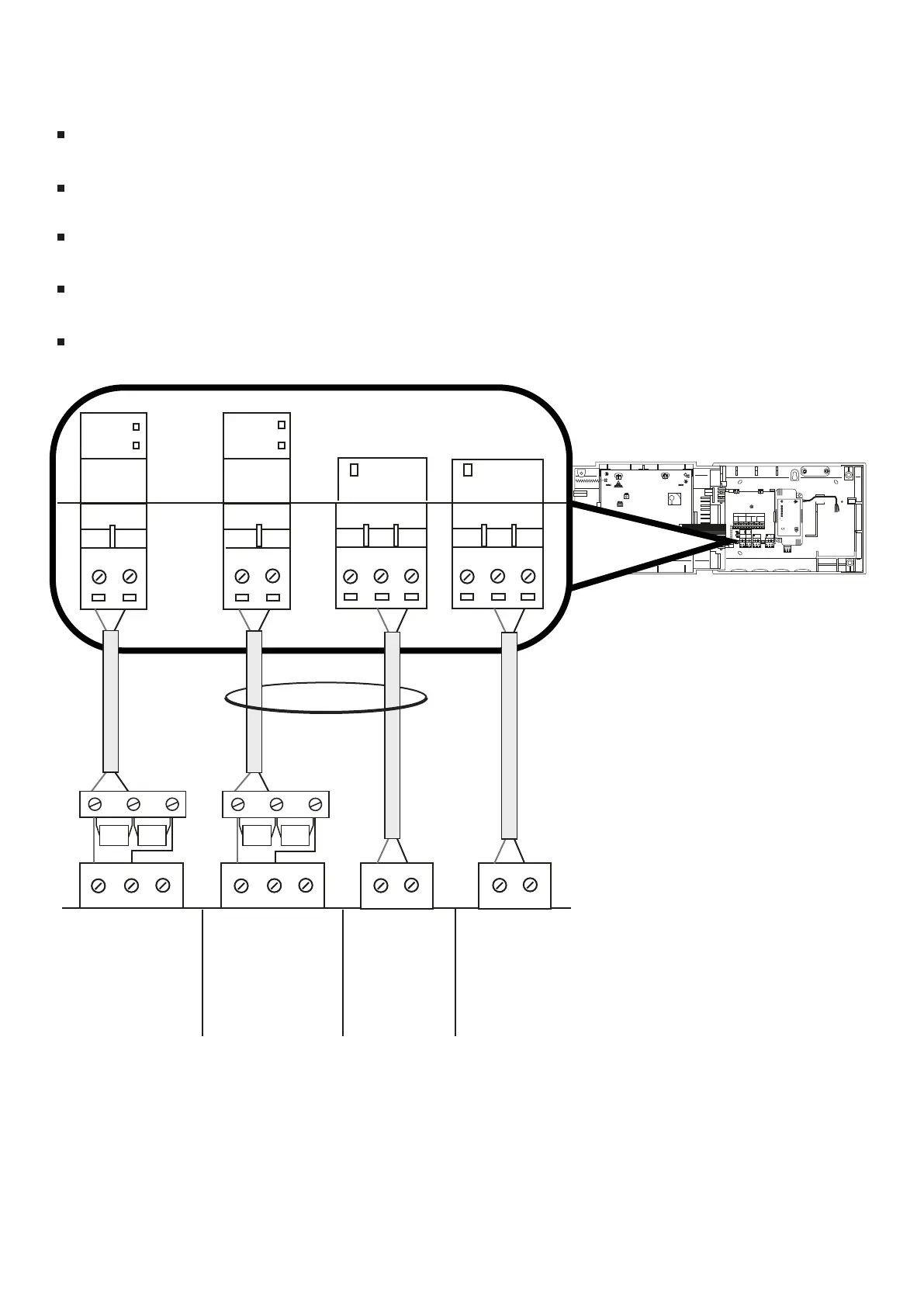

Addressable fire system wiring
FOOTNOTES
*
†
Optional cabling, required only when the following SmartCell devices are added to
the WZM; detectors, call points and I/O Units (I/O units when set to ‘Off When Reset’) -
see page 31 for details on this feature.
Wiring can be normally open or normally closed operation as required.
SKIP THIS STEP IF CONNECTING TO A CONVENTIONAL FIRE SYSTEM.
Wire the inputs as shown below, using the resistor pack provided.
If an input is not being used, leave the 20 kΩ resistor as factory fitted.
Both outputs are voltage free and rated 30 V @ 1 A.
The maximum cable length to connected devices is 10 m.
