EMS SmartCell User Manual

©2020 EMS Ltd. All rights reserved Page 9 of 36 MK349-0001-99 (Issue 1) 22/10/2020 AJM

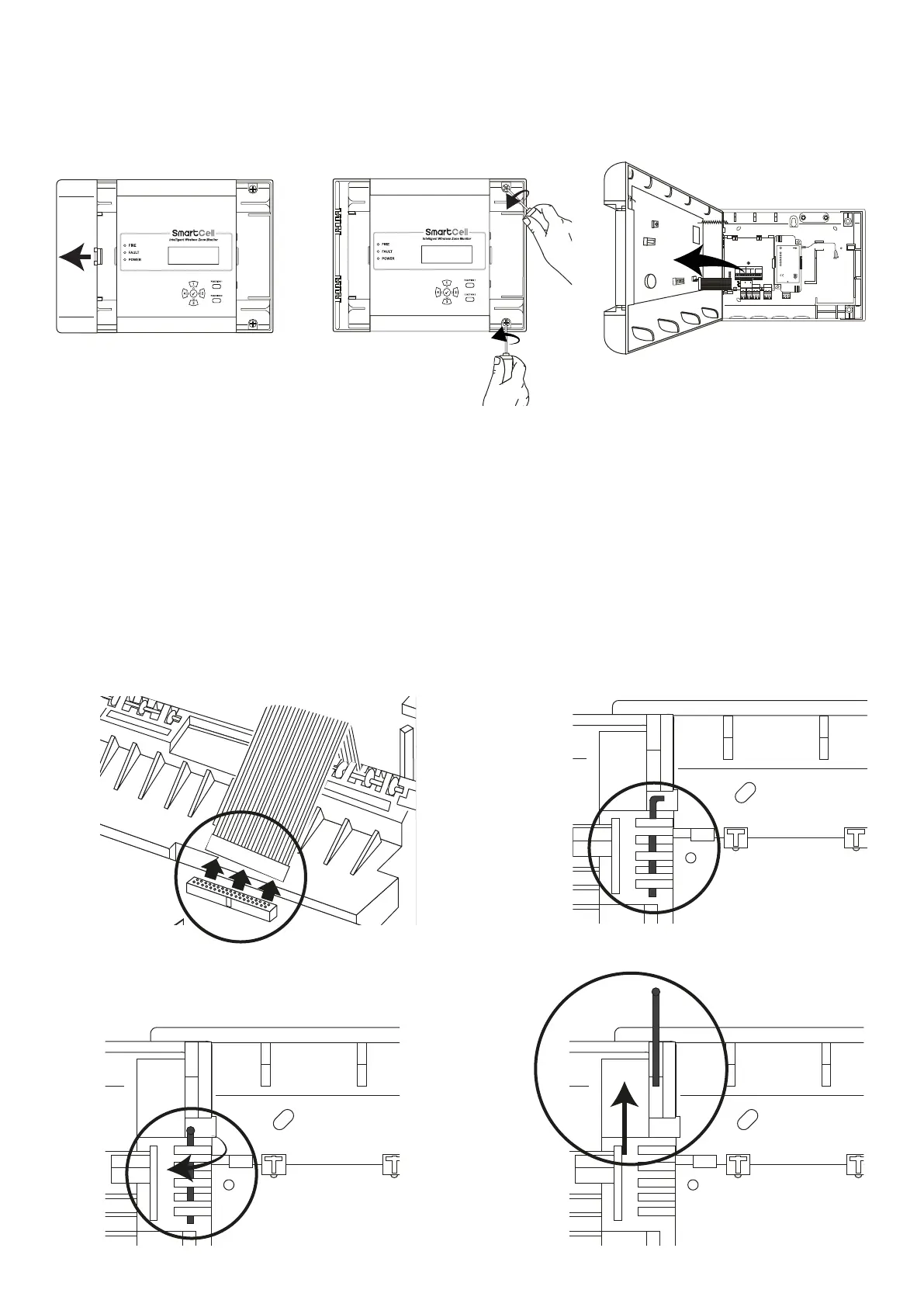

Optional door removal
1.
3.
Disconnect the ribbon cable, then turn and release the door hinges.
Open WZM
1. Unclip side cover.
2. Loosen screws.
230 VAC variant shown
3. Open door.
Refer to the ‘Side
cover removal’ section
(page 8) for details.
2.
4.
FAULT
NC C NO
FIRE
NC C NO
ACTIVE ACTIVE
FAULT FAULT
INPUT1 INPUT2
A B A B
EN54-4 UNIVERSAL PSU
SC-60-1000
INPUT: 220-240VAC, 50Hz, 0.3A
OUTPUT: 5.0-8.5VDC, 0.8A MAX
STATUS
FAULT
MAINS / CHARGER FAIL
BATTERY LOW
BATTERY FAIL
START
INPUT
For additional information refer to TSD042
0359-CPR-00267
15 0905
SLIDE TO
REMOVE
EOL
(+) (-) (+) (+) (-) (+) (-) (+) (-) (+) (+) (-)
SOUNDER A
L1 L1 L2 EOL ALARM L1 L1 L2
IN OUT RES IN OUT
ZONE
A
B
C
D
