EMS SmartCell User Manual

©2020 EMS Ltd. All rights reserved Page 8 of 36 MK349-0001-99 (Issue 1) 22/10/2020 AJM
FIRE
FAULT
POWER
FUNCTION 1
FUNCTION 2
1
2
3
4
Intelligent Wireless Zone Monitor
80 character
display
Status LEDs
Function
buttons
Le side cover
release clip
Navigation &
confirmation
buttons
Right side cover
release clip

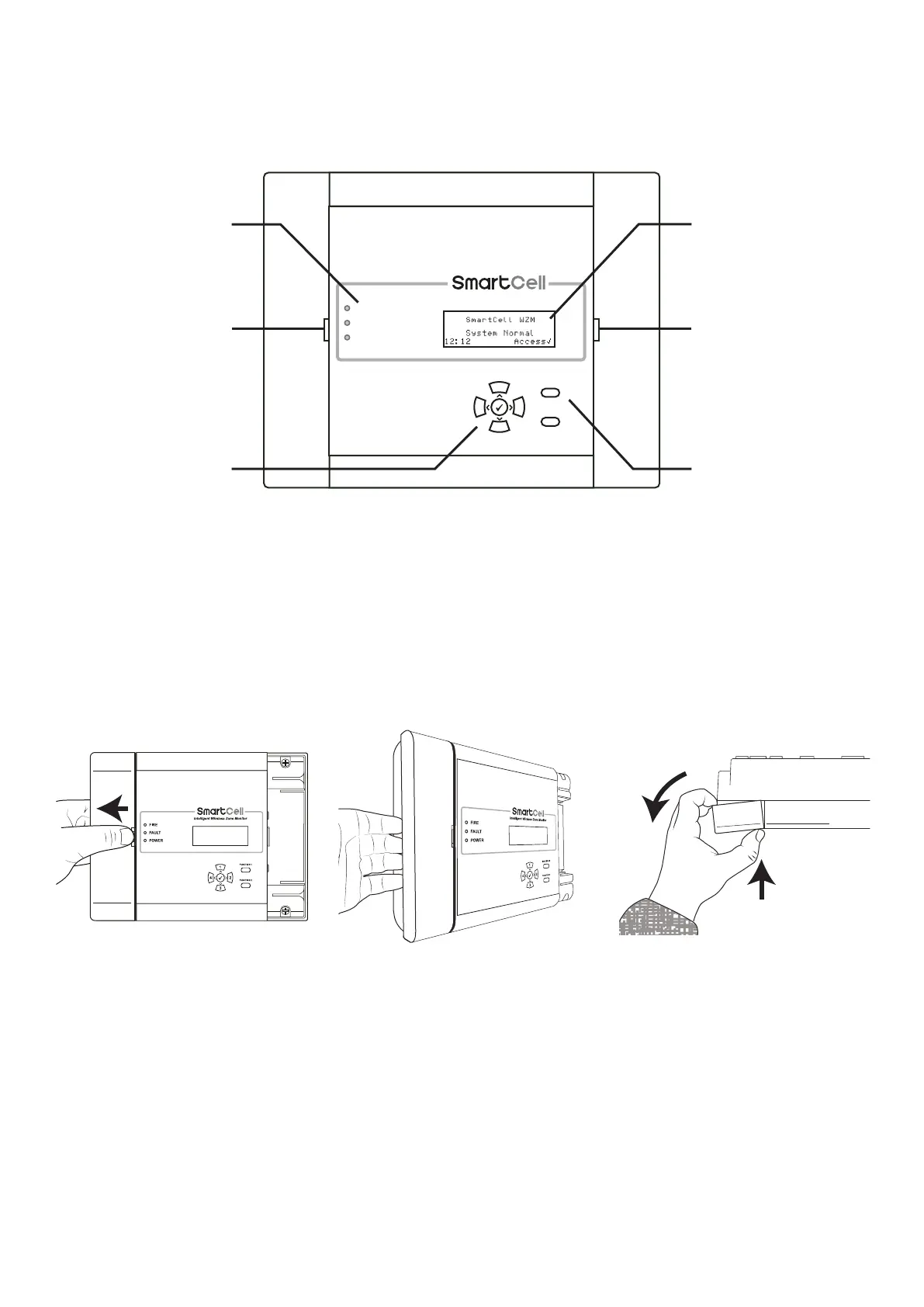

WZM features
(A)(A)
(B)
Side cover removal
The following steps illustrate how to remove the side covers:
Slide the side cover
sideways, creating a
gap as shown.
Press the cover’s
releasing clip with
your thumb (A), and
simultaneously rotate
the side cover
anti-clockwise (B), as
viewed overhead to
remove the cover.
Position your fingers
behind the cover’s
protruding edge.
1. 2. 3.
