Cerabar S/Deltabar S/Deltapilot S FOUNDATION Fieldbus Parameter description (Local operation and FieldCare)
Endress+Hauser 201

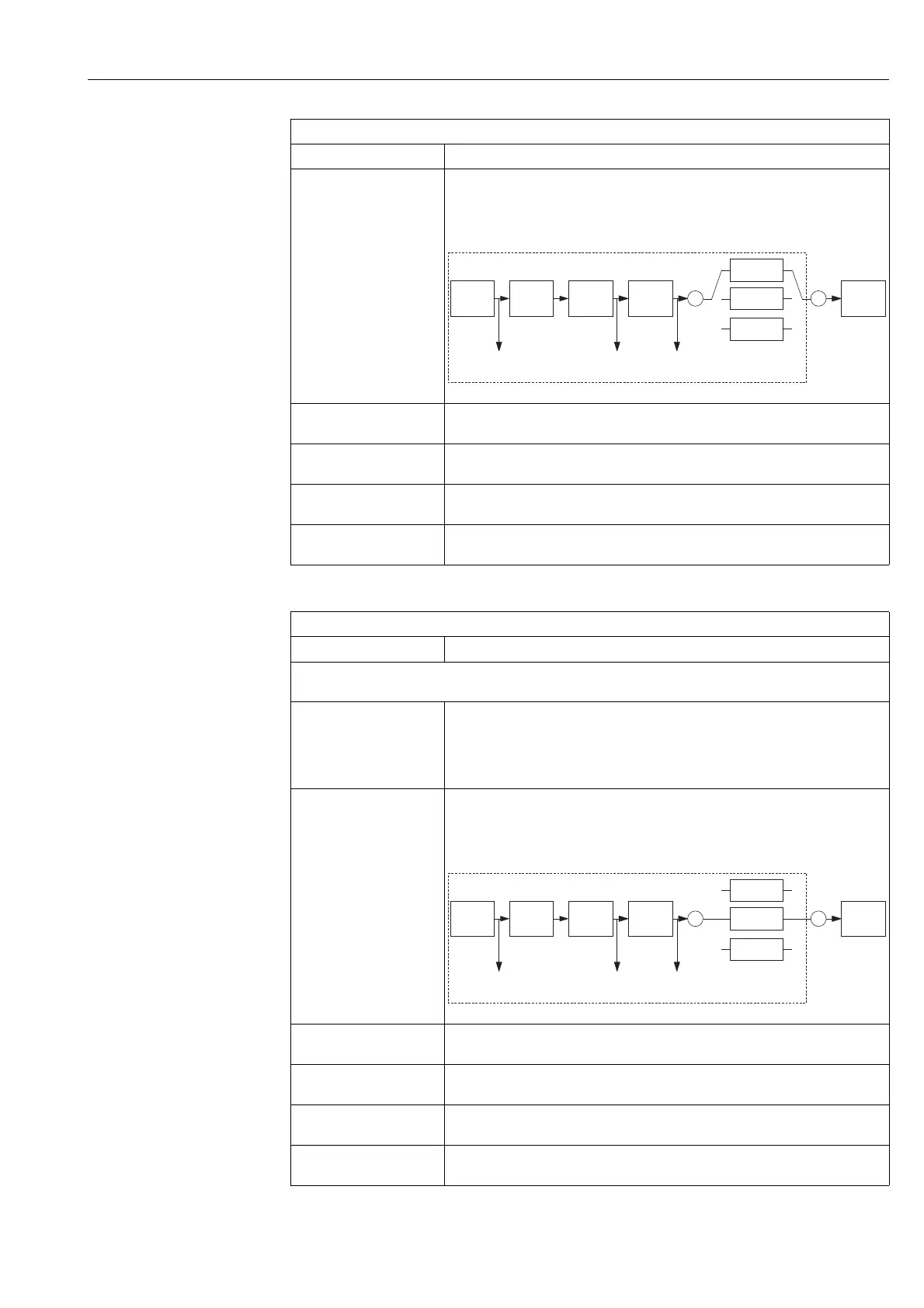

PRESSURE (301)
Display
Displays the measured pressure after sensor recalibration, position adjustment and
damping. This value corresponds to the MEASURED VALUE parameter in the "Pressure"
measuring mode.
P01-xMD7xxxx-05-xx-xx-en-000
CORRECTED PRESS. (434)
Display
Displays the measured pressure after sensor trim and position adjustment and before
damping. → See also PRESSURE diagram.
SENSOR PRESSURE (584)
Display
Displays the measured pressure before sensor trim, position adjustment and damping.
→ See also PRESSURE diagram.
SENSOR TEMP. (367)
Display
Displays the temperature currently measured in the sensor. This can deviate from the
process temperature.
MEAS. VAL. TREND (378)
Display
Displays the trend of the primary value of the Transducer Block.
Possibilities: increasing, decreasing, constant
Table 28: OPERATING MENU → PROCESSINFO → PROCESS VALUES "Level"
Parameter name Description
Prerequisite:
• MEASURING MODE = Level
MEASURED VALUE (679)
Display
Displays the measured value
In the "Level" measuring mode with "Linear" or "Pressure linearized" level mode, this
value corresponds to the LEVEL BEFORE LIN. parameter.
In the "Level" measuring mode with "Height linearized" level mode, this value
corresponds to the TANK CONTENT parameter.
PRESSURE (301)
Display
Displays the measured pressure after sensor recalibration, position adjustment and
damping. This value corresponds to the MEASURED VALUE parameter in the "Pressure"
measuring mode.
P01-xMD7xxxx-05-xx-xx-xx-002
CORRECTED PRESS. (434)
Display
Displays the measured pressure after sensor trim and position adjustment and before
damping. → See also PRESSURE diagram.
SENSOR PRESSURE (584)
Display
Displays the measured pressure before sensor trim, position adjustment and damping.
→ See also PRESSURE diagram.
SENSOR TEMP. (367)
Display
Displays the temperature currently measured in the sensor. This can deviate from the
process temperature.
MEAS. VAL. TREND (378)
Display
Displays the trend of the primary value of the Transducer Block.
Possibilities: increasing, decreasing, constant
Table 27: OPERATING MENU → PROCESSINFO → PROCESS VALUES "Pressure"
Parameter name Description
P
PV
Sensor
Analog
Input
Block
Pressure
Level
Flow
PRESSURE
Damping
CORRECTED
PRESS.
Position
adjust-
ment
Sensor
trim
SENSOR
PRESSURE
Transducer Block
P
PV
Sensor
Analog
Input
Block
Pressure
Level
Flow
PRESSURE
Damping
CORRECTED
PRESS.
Position
adjust-
ment
Sensor
trim
SENSOR
PRESSURE
Transducer Block
