3 Function group "basic setup" (00) Levelflex M
16 Endress+Hauser
bypass / pipe
The "bypass / pipe" option is designed especially for the installation of probes in a bypass or a still-
ing well. If this option is selected, the upper blocking distance is preset to 100 mm.
coax probe (not relevant for FMP43)
Select the "coax probe" option when using a coaxial probe. When this setting is made, the evalu-
ation is adapted to the high sensitivity of the coax probe. This option should, therefore, not be
selected when using rope or rod probes.
concrete wall
The "concrete wall" option takes into account the signal-damping property of concrete walls
when mounting with < 1 m distance to the wall.

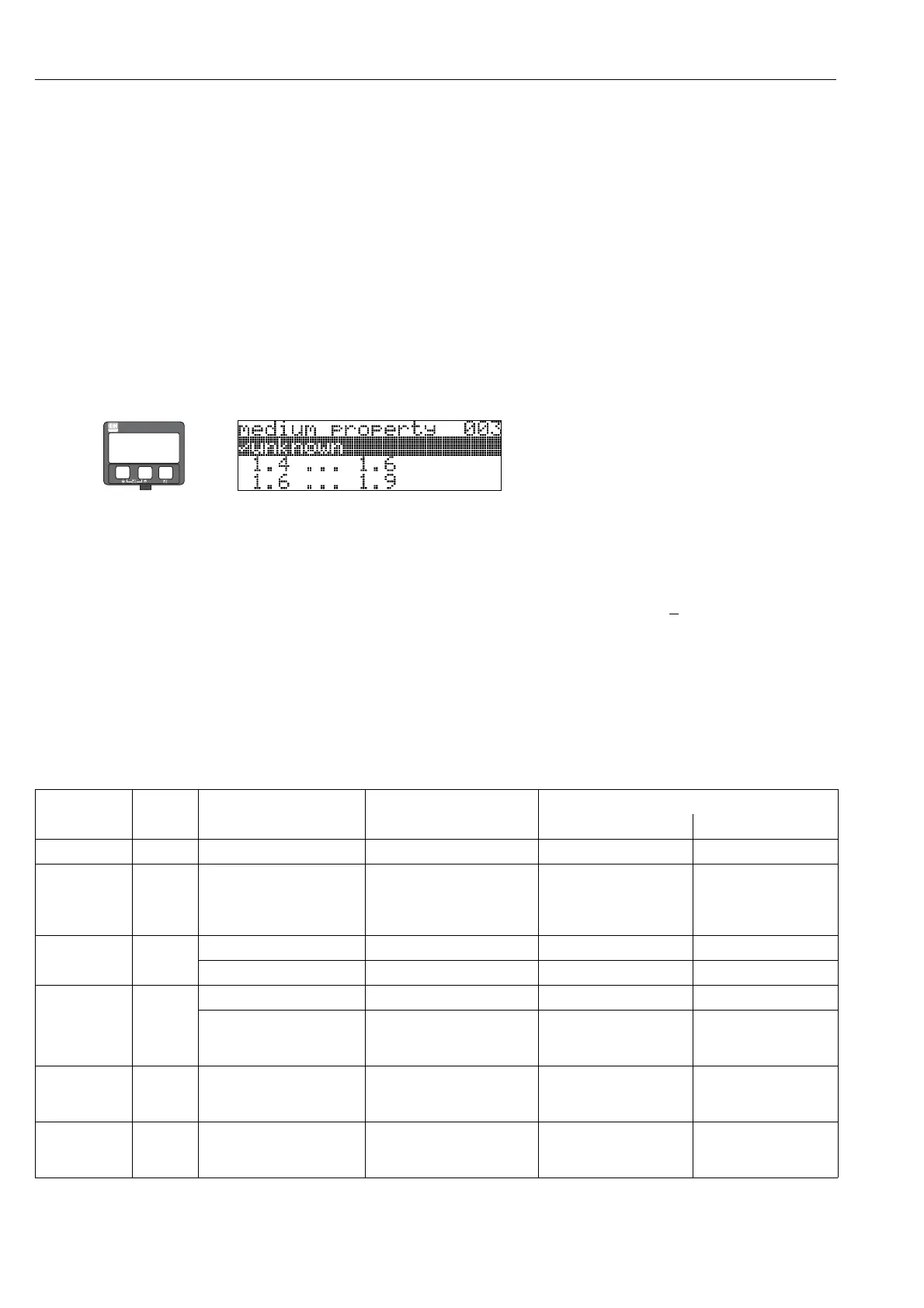

3.3 Function "medium property" (003)
This function is used to select the dielectric constant.
Selection:
• unknown
• 1.4 ... 1.6
FMP40: for coaxial and Rod probe with installation in metallic pipes <
DN 150
FMP41C, FMP45: 1,4 for installation in metallic pipes)
• 1.6 ... 1.9
• 1.9 ... 2.5
• 2.5 ... 4.0
• 4.0 ... 7.0
•> 7.0
FMP40:
⇒
ENDRESS + HAUSER
E
+
–
Media group DC (εr) Typical bulk solids Typical liquids
Measuring range
bare metallic probes PA-coated rope probes
1 1.4...1.6 Condensed gases, e.g. N
2
, CO
2
4 m / 157", only coax probe —
2 1.6...1.9
Plastic granulate
White lime, special cement
Sugar
Liquefied gas, e.g. Propane
Solvent
Frigen / Freon
Palm oil
25...30 m / 984...1181" 12,5...15 m / 492...590"
3 1.9...2.5
Portland cement, plaster Mineral oils, fuels 30...35 m / 1181...1378" —
Flour — — 15...25 m / 590...984"
4 2.5...4
Grain, seeds
⎯⎯25...30 m / 984...1181"
Ground stones
Sand
Benzene, styrene, toluene
Furan
Naphthalene
35 m / 1378" 25...30 m / 984...1181"
5 4...7
Naturally moist (ground) stones,
ores
Salt
Chlorobenzene, chloroform
Cellulose spray
Isocyanate, aniline
35 m / 1378" 35 m / 1378"
6 >7
Metallic powder
Carbon black
Coal
Aqueous solutions
Alcohols
Ammonia
35 m / 1378" 35 m / 1378"
