Levelflex M 1 Notes on use
Endress+Hauser 9
1.5.2 Display symbols

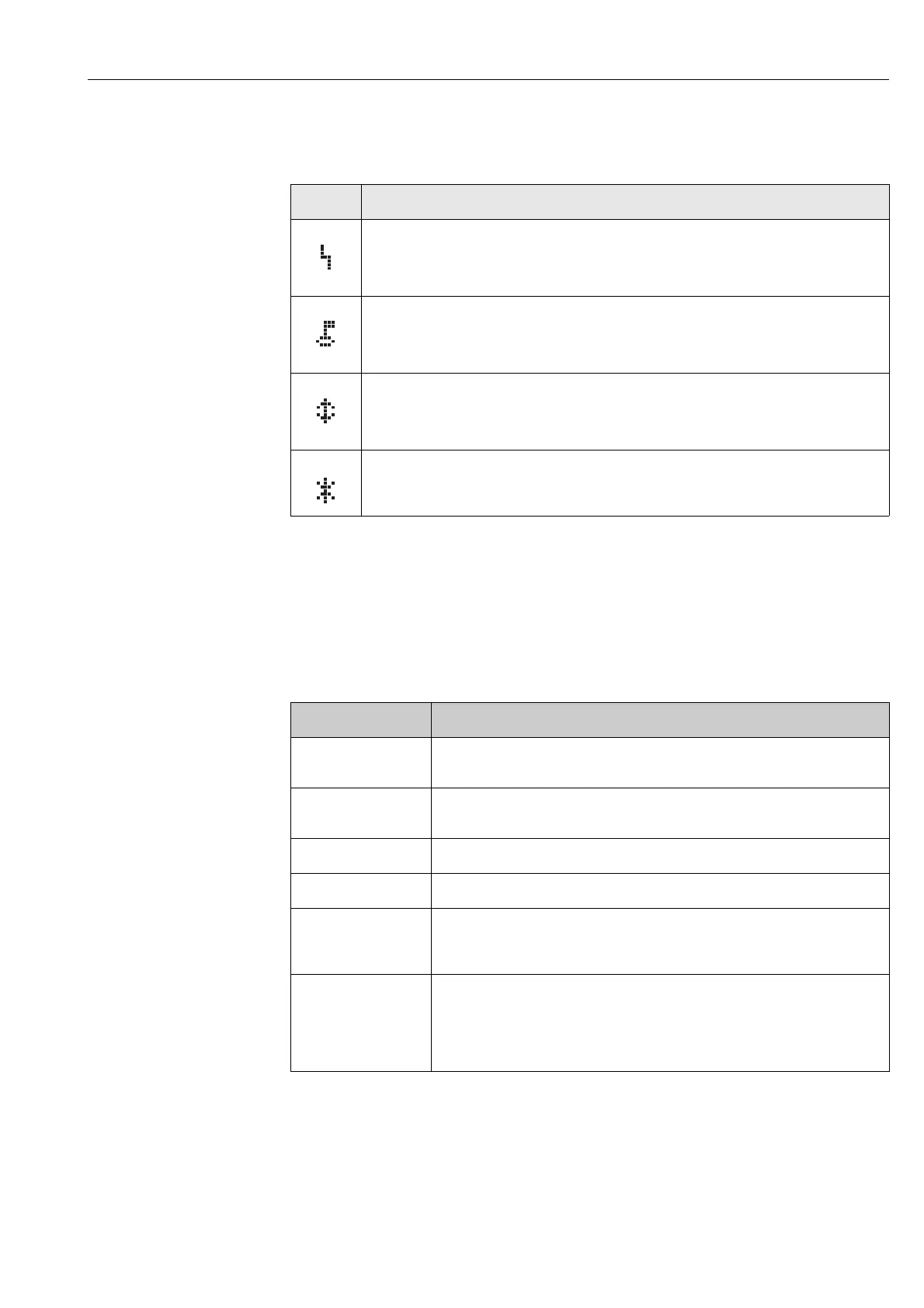

The following table describes the symbols that appear on the liquid crystal display:
Tab. 1-1 Meaning of Symbols
1.5.3 Key assignment
The operating elements are located inside the housing and are accessible for operation by opening
the lid of the housing.
Function of the keys
Tab. 1-2 Function of the keys
Symbols Meaning
ALARM_SYMBOL
This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates
a warning.
LOCK_SYMBOL
This lock symbol appears when the instrument is locked,i.e. if no input is possible.
COM_SYMBOL
This communication symbol appears when a data transmission via e.g. HART, PFOFIBUS-PA or FOUN-
DATION Fieldbus is in progress.
SIMULATION_SWITCH_ENABLE
This communication symbol appears when simulation in FOUNDATION Fieldbus is enabled via the DIP
switch.
Key(s) Meaning
O or V
Navigate upwards in the selection list
Edit numeric value within a function
S or W
Navigate downwards in the selection list
Edit numeric value within a function
X or Z Navigate to the left within a function group
F or M Navigate to the right within a function group, confirmation.
O and F
or
S and F
Contrast settings of the LCD
O and S and F
Hardware lock / unlock
After a hardware lock, an operation of the instrument via display or
communication is not possible!
The hardware can only be unlocked via the display. An unlock parameter must
be entered to do so.
