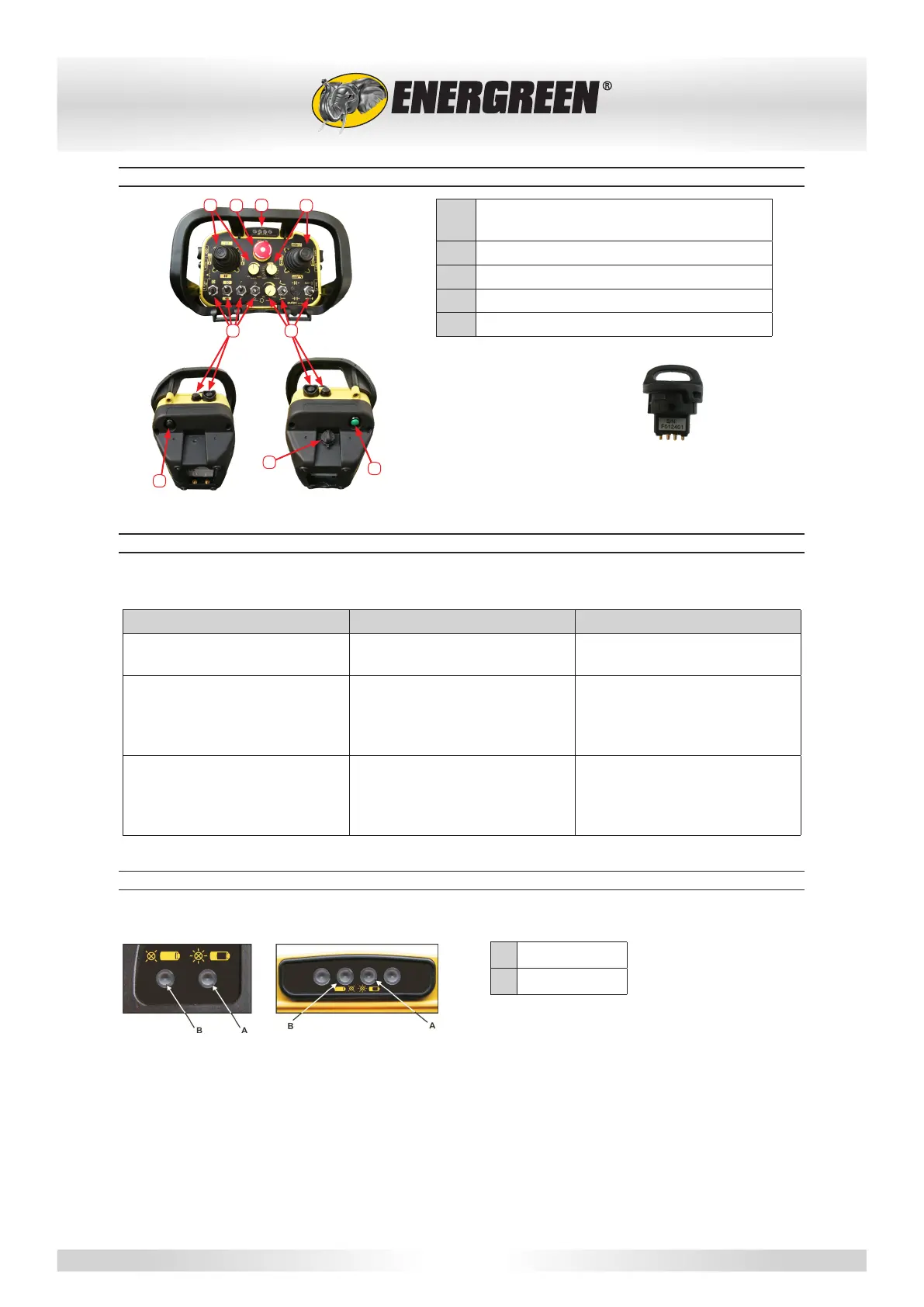

6.4.1 - REMOTE CONTROL DESCRIPTION
A
B
C
A
A A
A
E
D
6.4.2 - REMOTE CONTROL PLATES
The following plates are present in the transmitter unit.
Plate Position Information contained
Remote control unit identica-
tion plate
This is found in the S-KEY: to
read it extract the S-KEY.
The serial number (S/N) of the
remote control
Transmitter unit identication
plate
This is to be found in the bat-
tery housing, take the battery
out to read it.
The year of manufacture, the
battery code and the identica-
tion number of the transmitter
unit (TU ID)
Rating plate This is to be found in the bat-
tery housing, take the battery
out to read it.
The MODEL, TYPE and main
technical data of the transmit-
ter unit, the markings and any
remote control trademarks.
6.4.3 - REMOTE CONTROL LIGHT SIGNALS
The transmitter unit may feature two or four LEDs.
In both cases there is always a green LED and a red LED that give information concerning the
remote control.
In the 4 LED version, the side LEDs are red and give data coming from the machine (Data
Feedback Function).
A
Actuators (joystick, selector switches,
buttons)
B Emergency Stop Button
C LED
D ENTER button
E S-KEY (electronic ignition key)
S-KEY
A Red LED (a)
B Green LED
