ENERGREEN RoboMAX - Remote Control

31
© 2017 Energreen Srl
Professional machinery

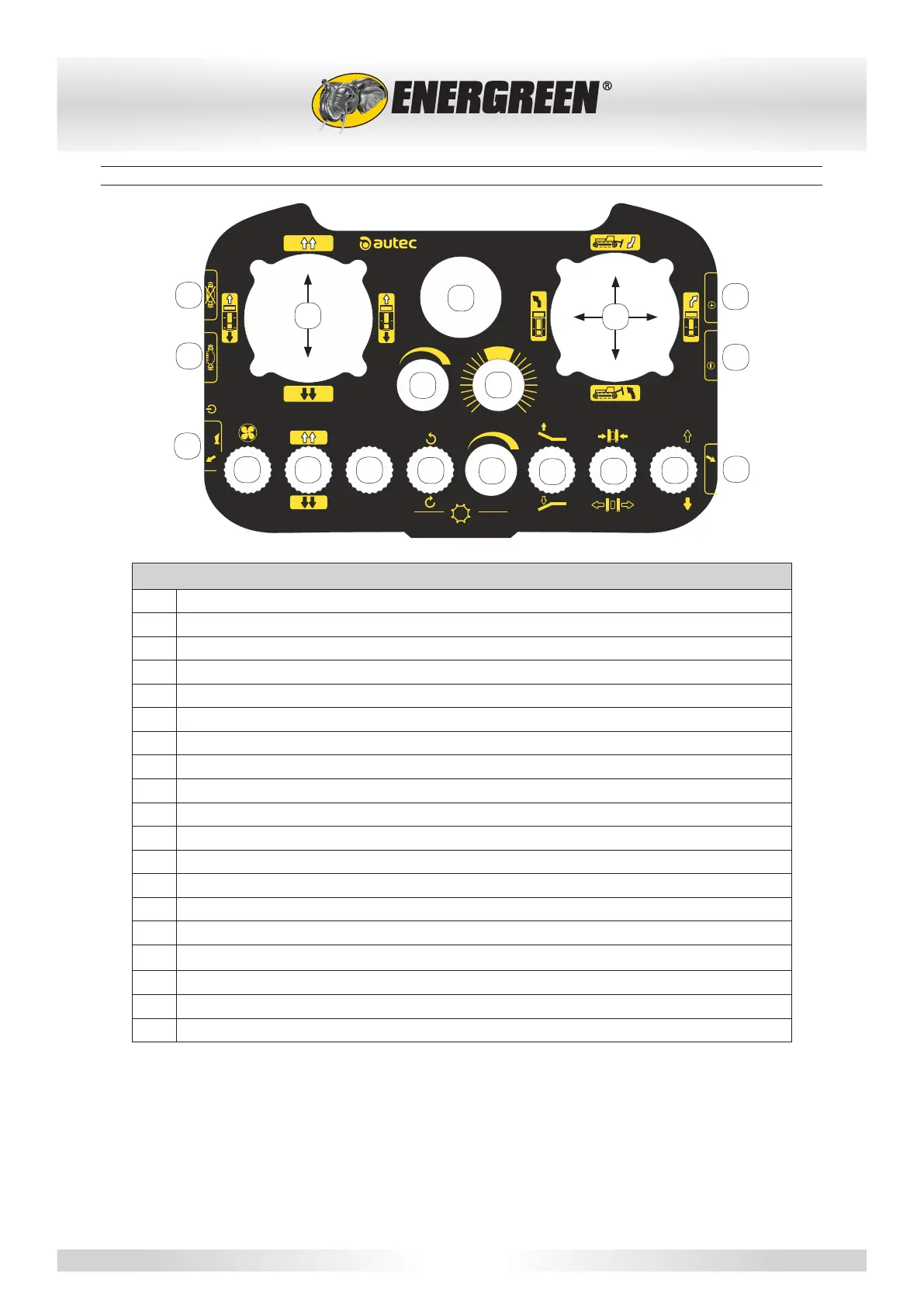

6.4 - REMOTE CONTROL
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
REMOTE CONTROL FUNCTIONS
A Forward movement/ backward movement joystick
B Steering / equipment lifting joystick
1 Diesel engine rpm speed increase button
2 Fan rotation reversal button
3 Auxiliary service button
4 Auxiliary service selector
5 Auxiliary service selector (optional)
6 Open / close ail head guard selector
7 Flail head RPM increase / decrease potentiometer
8 Flail head clockwise / anti-clockwise rotation selector
9 Slow / fast speed selector
10 Manoeuvre progress reversal selector switch
11 Reversible fan start button
12 Remote control - receiver unit connection search button
13 Engine ignition button
14 Engine power down button
15 Speed of progress regulation potentiometer
16 Right / left direction corrector potentiometer
17 Emergency button
