To change the oil, carry out the procedure below:

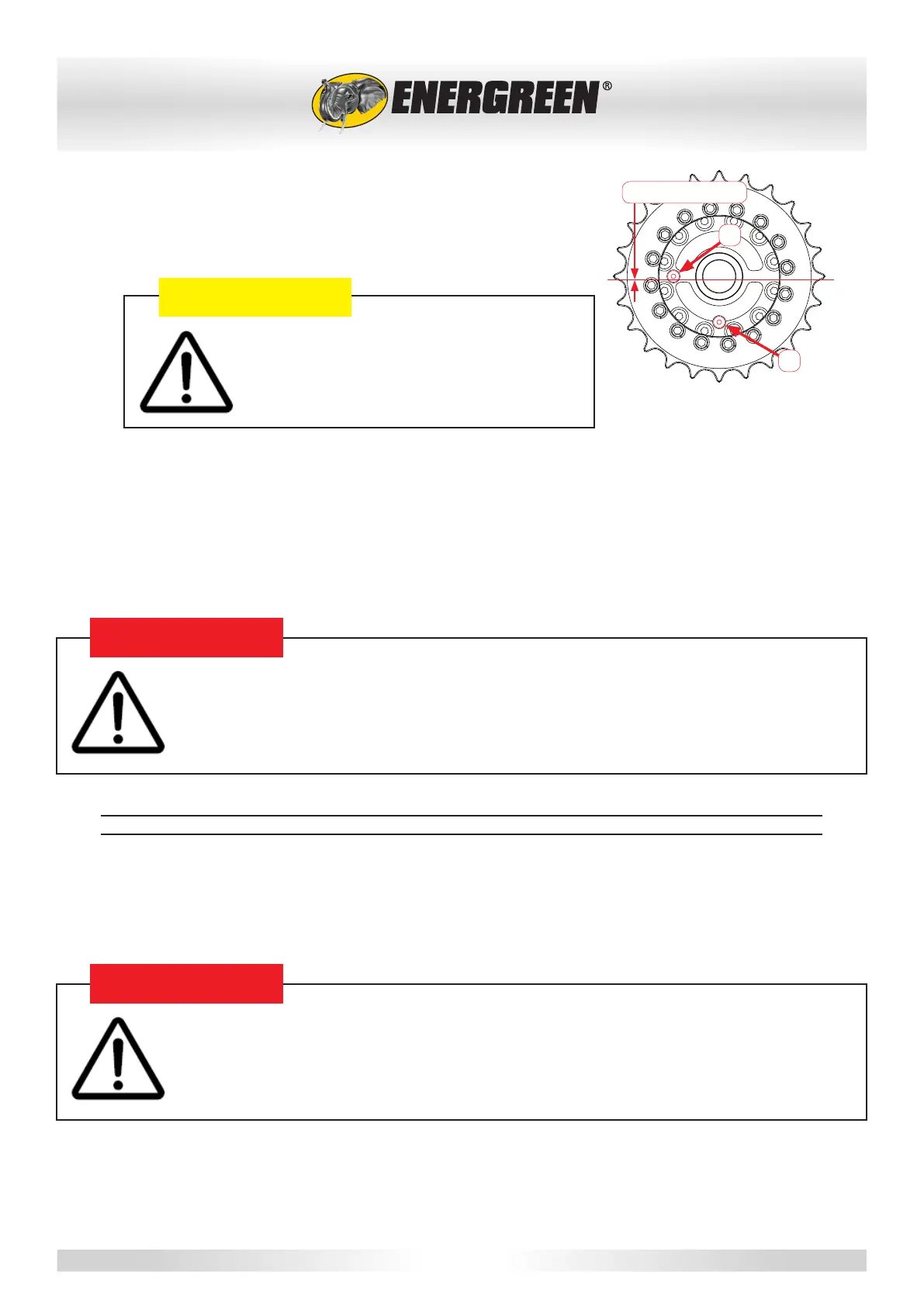

1. Position the machine on a level surface. Then turn the tracks
until the drainage plug (B) is in the lower part of the reduction
unit.
2. Turn off the engine and remove the ignition key
Remove the oil caps very carefully because a
possible overpressure inside the gear reducer
could expel them violently outwards.
WARNING:
3. Open the plug on the higher level (A).
4. Undo the drainage plug (B) and let the oil ow out into a sufciently large receptacle; to
facilitate the drainage operation you should work while the oil is warm.
5. Wait for a few minues until all the oil has run out then screw the plug (B) back in.
6. Rell the gear reducer with 1.3 litres of the appropriate oil (see previous table in section 9.4.1)
through the hole of the cap (A).
7. Screw up the cap (A).
8. Carry out the same procedure for the other gear reducers.
DANGER:
• The oil spilled during the change can cause personnel to slip. Wear protective clothing
and anti-slipping shoes and immediately remove any traces of oil.
• Since the oil is considered special waste, it must be disposed of according to the anti-
pollution regulations in force.
9.8 - MAINTENANCE OF THE HYDRAULIC MOTORS AND HYDRAULIC VALVES
Periodically check that:
• There are hydraulic motor and hydraulic oil leaks. If there are try tightening the xing screws.
• The hydraulic ttings connected to the motor and valves are not loose. If they are, tighten
them.
If the problem persists, Contact ENERGREEN's customer services.
DANGER:
• At operating temperature the hydraulic oil is boiling and sometimes under pressure
too.
• Avoid the skin coming into contact with the boiling oil or its conduits.
Oil level
A
B
