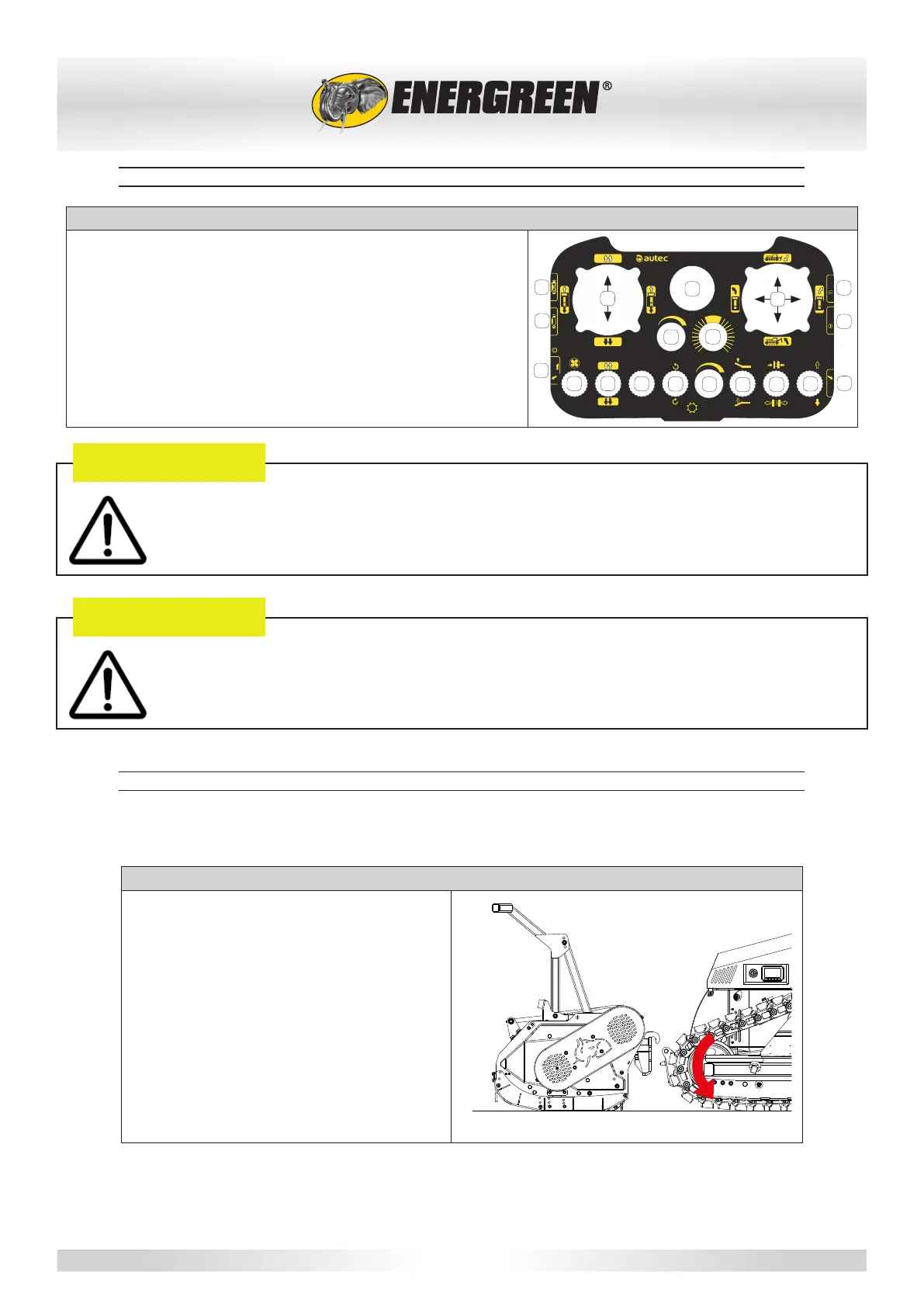

6.5.11 - LIFTING DEVICE
Lifting device
The height of the equipment attached to the front of the machine
can be adjusted using the right-hand joystick (B) (see authorised
equipment). Move the joystick forwards to lower the equipment,
move it backwards to lift it.
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
WARNING:
Rest the tool to the ground and allow the cylinder rod to extend until it reaches the centre of the
slot. In this way, the tool will follow the contour of the ground more accurately (oating effect).
WARNING:
Only work on the lifting device with the equipment not in operation.
6.5.12 - HOW TO ATTACH EQUIPMENT
The machine is tted with a lifting device on which the various approved tools can be attached. To
do this, follow the steps below:
Attaching a tool
1. Start the diesel engine and connect with
the remote control (see section 6.7.1).
2. Lower the lifting device as far as possible
using the right-hand joystick (B).
