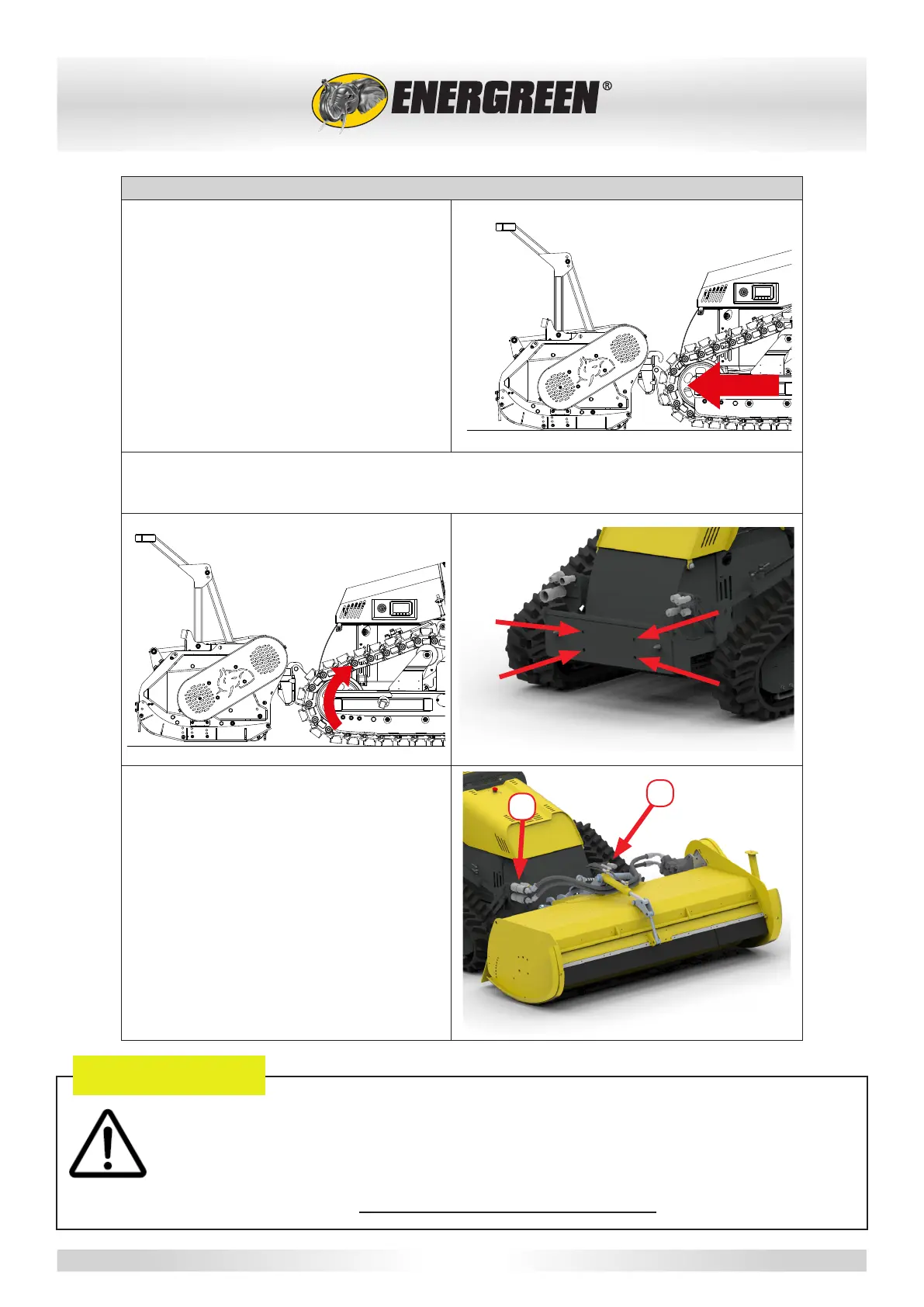

Attaching a tool
3. Slowly move the RoboMAX until it is close
to the mounting plate of the tool that was
previously placed in front of the machine.
4. Using the right-hand joystick (B), raise the lifting device to attach the equipment.
5. Fasten the tool to the support on the machine using four M16 x 60 screws.
6. Turn off the engine.
7. Connect the hydraulic power hoses (A)
to the quick couplings on the machine
(right-hand side), making sure to clean
the couplings before connecting them.
8. Connect the hydraulic services hoses (B)
to the quick couplings (left-hand side).
9. Also carefully check the information
regarding attaching tools and equipment
in the specic manuals of the individual
pieces of authorised interchangeable
equipment.
B
A
WARNING:
Firmly tighten the hydraulic couplings after hitching the equipment.
Failure to tighten the quick couplings (even partially) can cause the hydraulic motor of the
tool to break and / or the oil seal to be ejected.
MAXIMUM TIGHTENING TORQUE 50 Nm
