6.5.9 - STEERING BIAS CONTROL

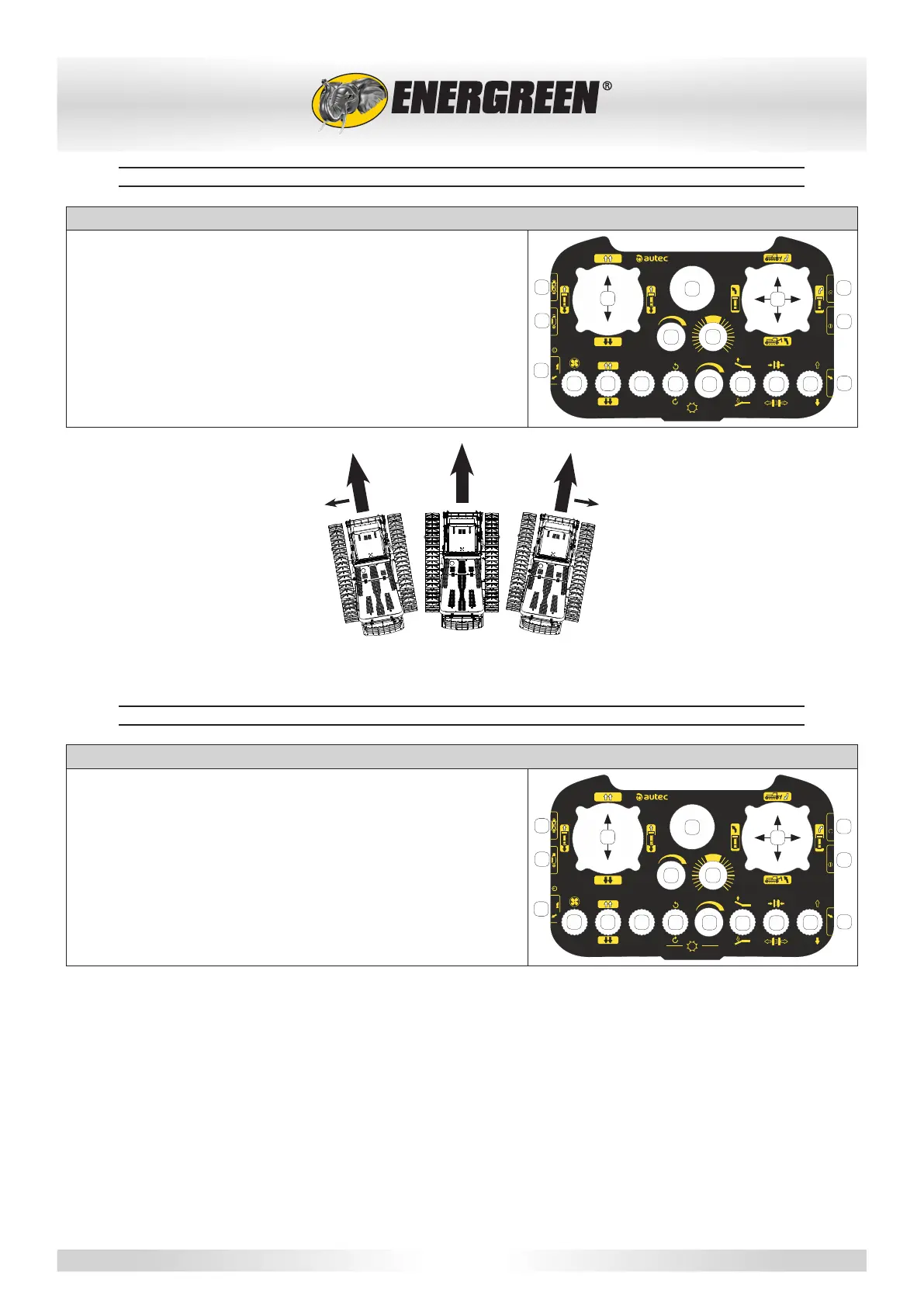

Steering bias control
Potentiometer (16) enables the direction of travel to be
compensated when working on steep slopes.
Turn the potentiometer to the right or left to correct the path of
the machine.
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
6.5.10 - DIRECTION CONTROLS SWAP
Direction controls swap
If the selector switch (10) is activated the functions of the joystick
(A) will be inverted.
