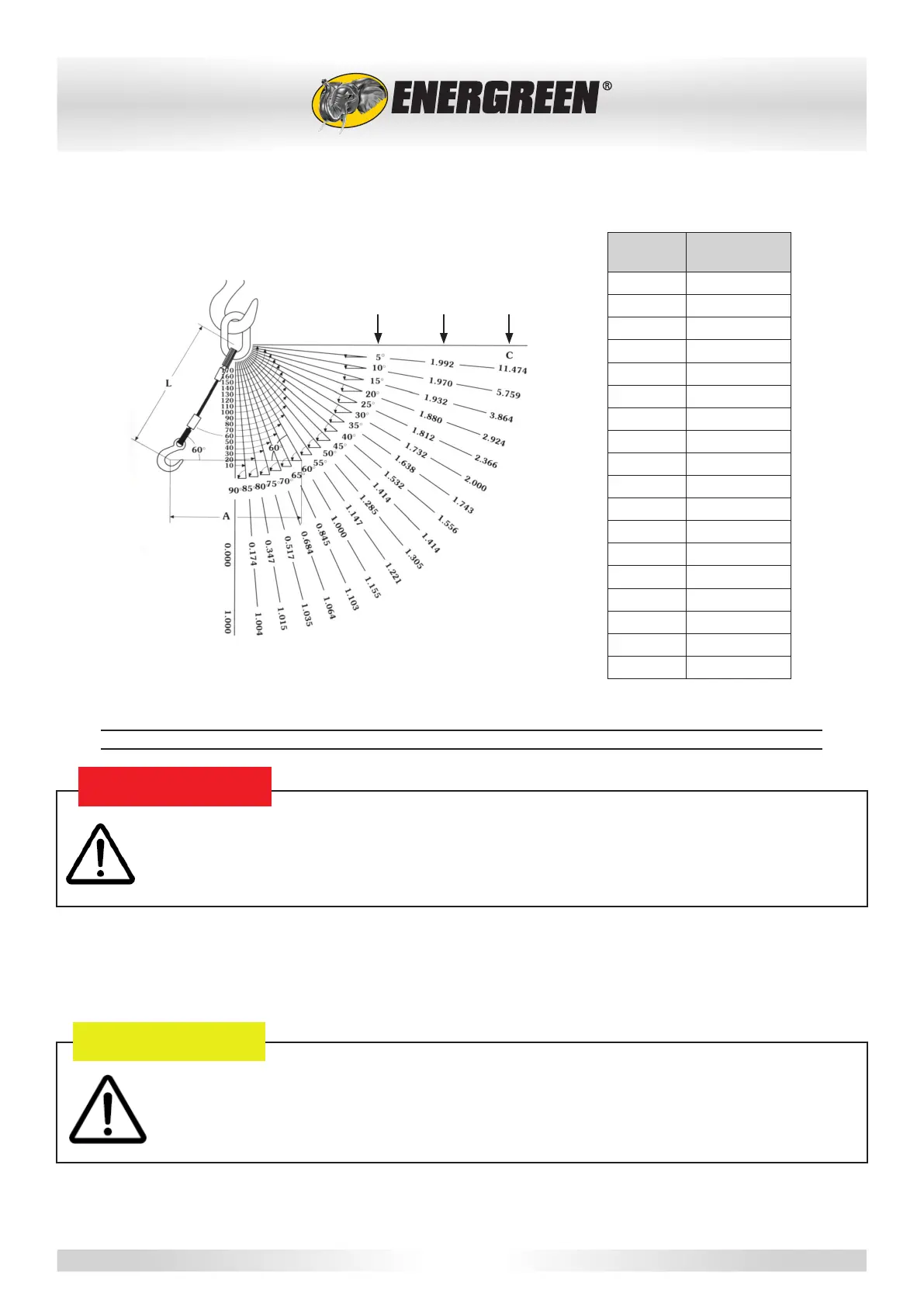

It should be noted that when using wire ropes, slings or chains to lift the machine, you must comply with
the diagram below that indicates the minimum lifting angles.
Angle at
top
Load increase
factor
0° 1
10° 1,004
20° 1,015
30° 1,035
40° 1,064
50° 1,103
60° 1,155
70° 1,221
80° 1,305
90° 1,414
100° 1,556
110° 1,743
120° 2,000
130° 2,336
140° 2,924
150° 3,864
160° 5,759
170° 11,474
Rope
opening
angle
Angle of rope
with respect to
horizontal
A/L
Load
increase
factor
7.2 - TOWING THE MACHINE
• We emphasise that this is a difcult and dangerous operation because of the weight of the
machine, the fact that it is tracked and the friction generated.
• When the machine is to be towed, use a metal cable that is strong enough to tow the machine.
DANGER:
If the machine becomes stuck, the negative brake of the gearbox can be released. To do this, remove the
motor and the cover of the gearbox and disconnect the internal joint.
In any case, the weight of the machine and the fact that it is a tracked vehicle makes it difcult to tow. It is
therefore recommended to lift it.
WARNING :
Make sure that the machine cannot move before disconnecting the wheel gear units. The ma-
chine should therefore be secured via the winch (optional) or the lifting points on the carriage
and/or the tracks blocked with wooden wedges.
Place a suitable container under the gear unit to collect the oil.
