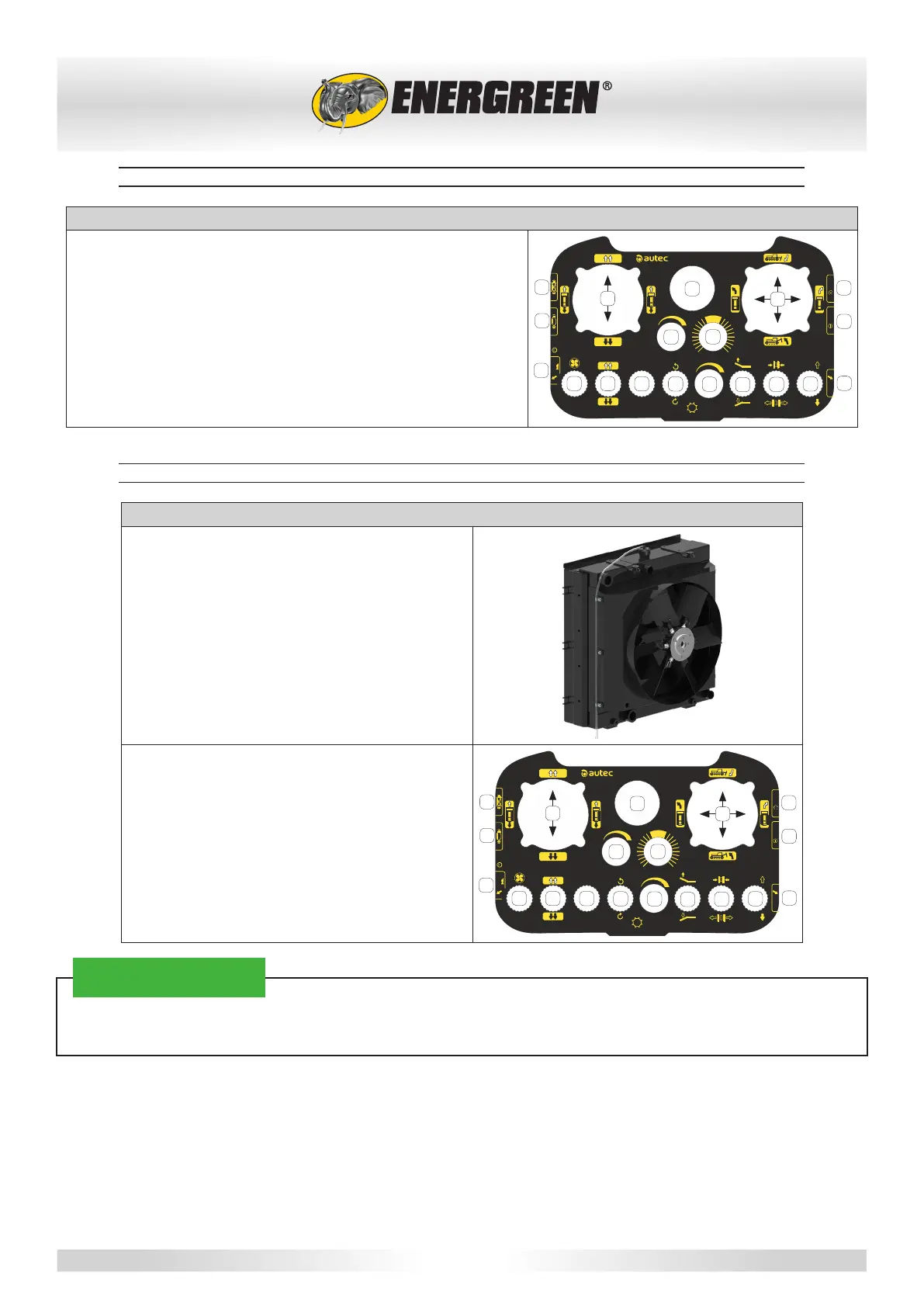

6.5.15 - OPENING THE HEAD GUARD
Opening the head guard
Moving the selector (6) upwards actuates the cylinder that opens
the head guard.
Moving it downwards closes the guard.
NOTE:
If you use a tool other than a ail head, refer to its use and
maintenance manual as this function may have a different
use.
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
6.5.16 - REVERSIBLE FAN CONTROL
Reversible fan control
The machine is tted with a ventilation system
consisting of a reversible fan. One of the
advantages of this system is that it allows the
radiator to be cleaned, removing any cutting
residuals.
Pressing the button (11) reverses the direction of
the engine fan. The blades rotate for as long as
the button is pressed.
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
Before reversing the direction of rotation of the fan blades, reduce the speed of the diesel engine to idle
speed, actuate the reverse blade control and then gradually increase the speed of the diesel engine.
