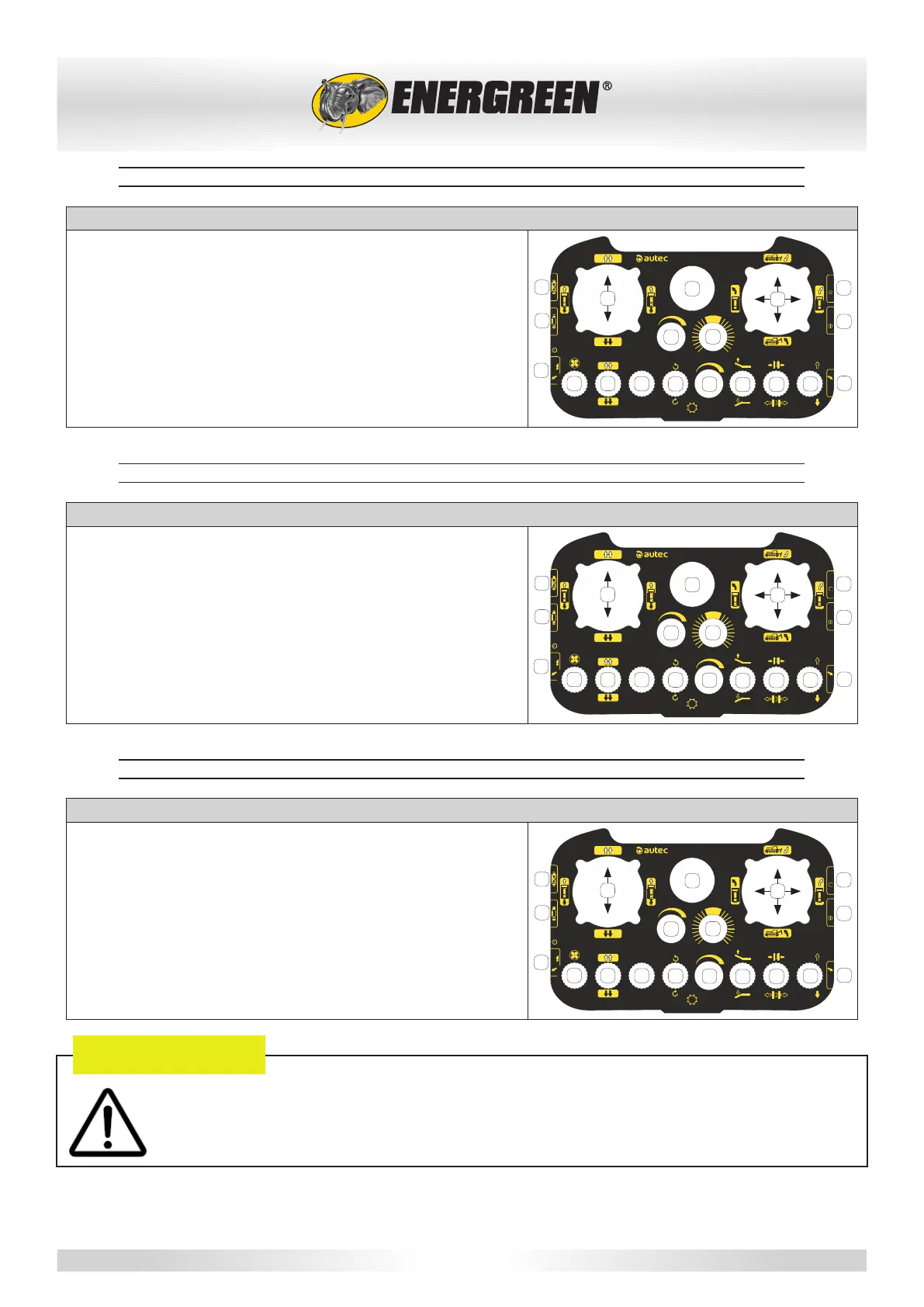

6.5.6 - MOVING THE MACHINE FORWARDS AND BACKWARDS
Moving the machine forwards and backwards
To move the machine forwards or backwards, move the left-hand
side joystick (A) forwards or backwards.
It is a proportional control so the more you move the joystick the
faster the machine moves.
The top speed that can be achieved will be determined by the
potentiometer position (15) and the speed selected (9).
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
6.5.7 - SPEED ADJUSTMENT POTENTIOMETER
Speed potentiometer
The potentiometer (15) regulates the maximum speed of the
machine from 0 to 100%. The potentiometer setting chosen will
depend on the various work conditions that the operator will
come across and should always ensure maximum control over
the machine.
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
6.5.8 - STEERING
Steering
The machine is steered by using the right-hand side joystick
(B). Move it to the right or left in to steer the machine. Used in
combination with the left-hand joystick (A) it makes it possible to
steer the machine by 180° (counter-rotation).
rpm
rpm
STOP
START
AUX
AUX 1
AUX 1
II°
I°
0%
100%
SPEED
0%
100%
LEFT
RIGHT
S-KEY
10
15
16
8
7
9
17
14
13
12
11
A
B
1
2
3
4
5
6
WARNING:
Carry out the steering manoeuvre with the machine on a at level surface.
