Professional machinery
XR2
XR6
XF3 XF4 XF27 XF26 XF5

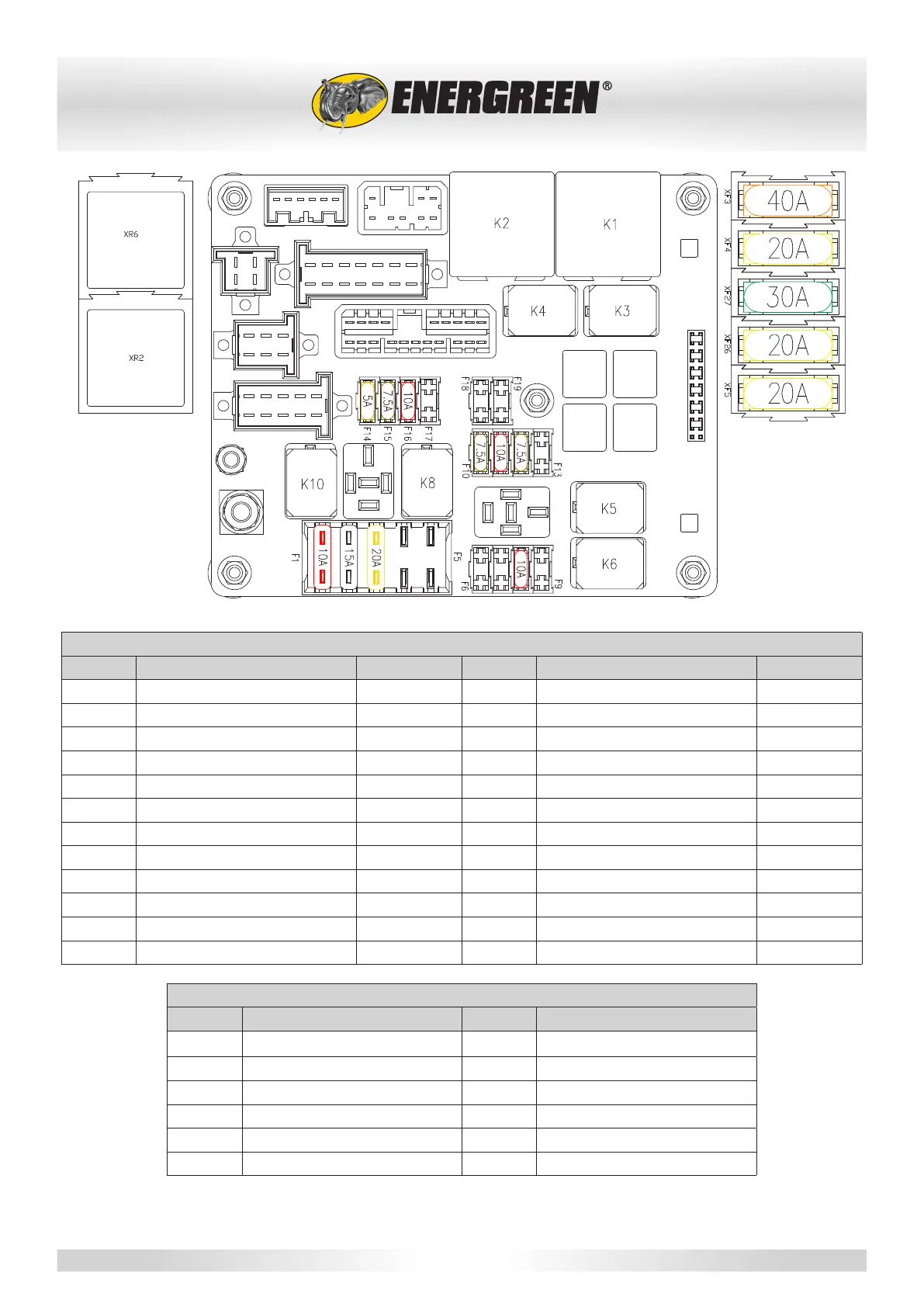

KEY TO FUSES
Fuse Description Ampere (A) Fuse Description Ampere (A)
F1 Radio / manual controls 10 F2 Engine control unit 15
F3 Work lights / beacon light 20 F4 --- ---
F5 --- --- F6 --- ---
F7 --- --- F8 Horn 10
F9 --- --- F10 Diesel pump 7.5
F11 Power outlet 10 F12 Key 7.5
F13 --- --- F14 Alternator 5
F15 Sensors 7.5 F16 VE LE70 / ECU power supply 10
F17 --- --- F18 --- ---
F19 --- --- XF3 +30 battery 40
XF4 +30 VP 20 XF5 +30 starter motor 20
XF26 +30 engine control unit 20 XF27 +30 EGR relay 30
RELAY TABLE
Relay Description Relay Description
K1 EGR valve K2 ---
K3 --- K4 Start up enabling
K5 Klaxon K6 ---
K7 --- K8 ---
K9 --- K10 Power supply Remote control
XR2 Services relay XR6 Start up relay
