Section B - Mounting the breakers
Install DER breakers
2
3
4
1
Slotted Phillips
machine screw
Slotted Phillips
Machine screw
Retainer
Retainer
IQ Combiner 5/5C Quick Install Guide19

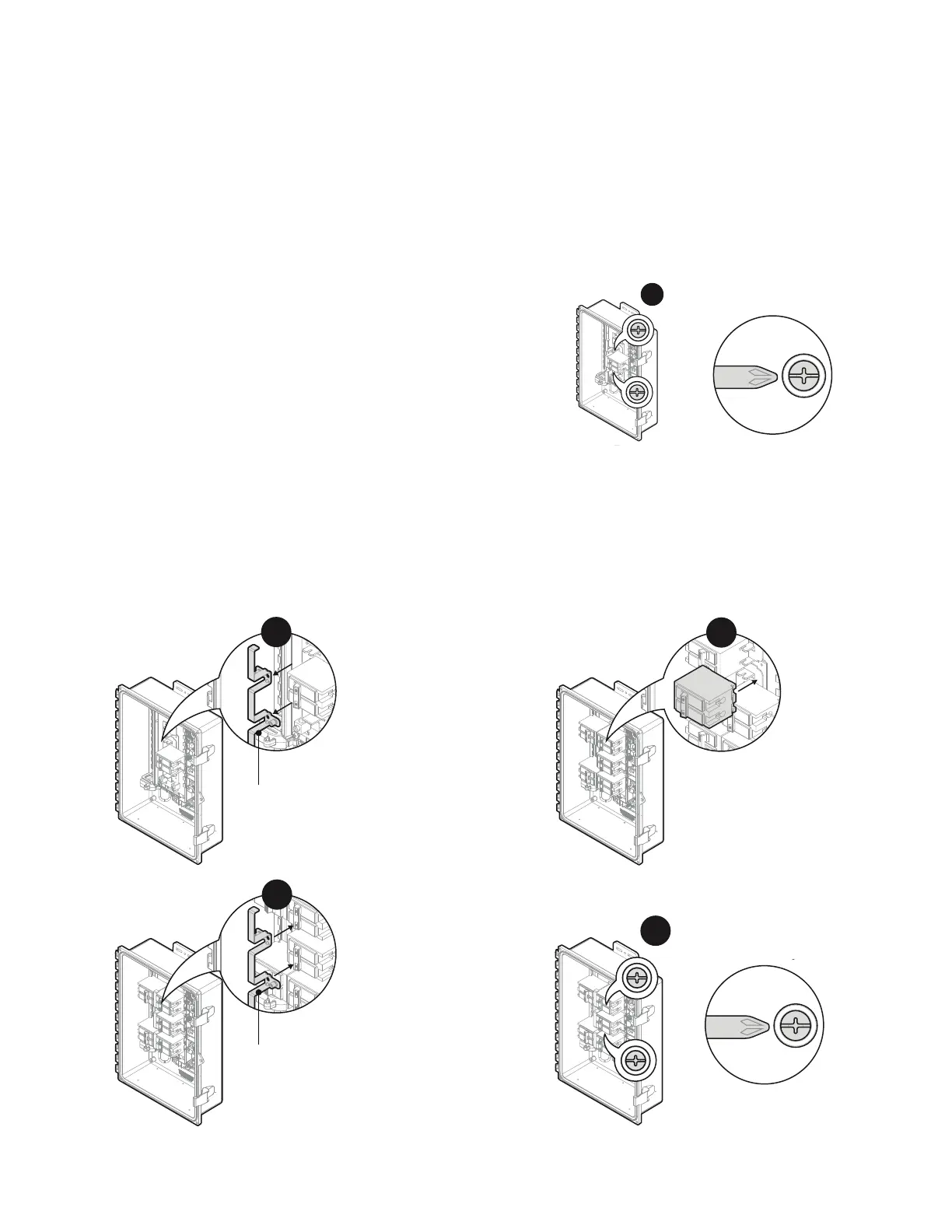

1. Unscrew the captive/thumb screws from the hold-down kit
retainer.
2. Remove the metal sheet retainer from the hold-down kit.
3. Snap the breaker onto the busbar using the breaker positions
indicated. The hold-down kit can be used for one or more (up
to four) DER circuit breakers. When installing both PV and IQ
Battery on the IQ Combiner, it would be easier to install the PV
breakers on the lower breaker slots and IQ Battery breakers on
the upper breaker slots.
4. Assemble the sheet metal retainer onto the plastic part.
5. Torque captive/thumb screws. Avoid over-torquing.
NOTE: Follow all steps when using X-IQ-AM1-240-5-HDK or X-IQ-
AM1-240-5C-HDK (IQ Combiner 5/5C with hold-down kit). For
X-IQ-AM1-240-5 or X-IQ-AM1-240-5C (IQ Combiner 5/5C without
hold-down kit), follow only step 3.
