enphase IQ Combiner 5C Quick Install Guide

Mobile Connect
Checking the cellular modem status LEDs

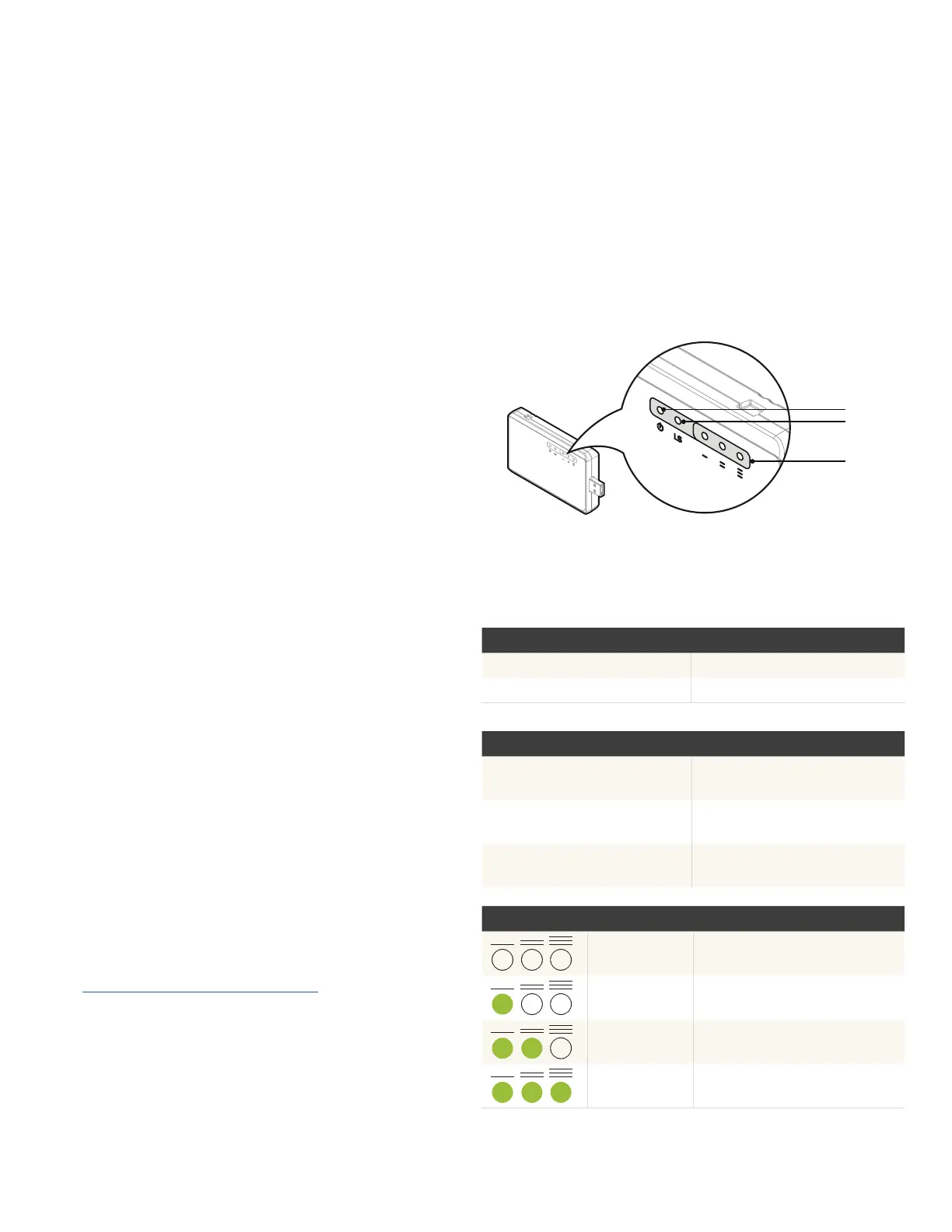

The modem has the following status LEDs. The LEDs are located
on the upper right side of the front panel, as shown in the below
diagram:
POWER LED INDICATES
O DC power not present
On DC power present
LINK LED INDICATES
Flashing slowly
(200 ms high/200 ms low)
Searching for available network
Flashing slowly
(1,800 ms high/200 ms low)
Idle
Flashing quickly
(125 ms high/125 ms low)
Data transfer in progress
SIGNAL LEDS DESCRIPTION INDICATES
All o Very weak signal
Bar 1 ON Weak signal
Bar 1 and 2 ON Good signal
Bar 1, 2, and 3 ON Very good signal
The IQCombiner5/5C paired with the Mobile Connect provides
plug-and-play connectivity to the Enphase Installer Platform. The
Mobile Connect, is precongured for data service and becomes
activated when connected to a powered IQCombiner5/5C.
The IQGateway collects module-level and system-level production
data, consumption data, and, if congured, IQBattery data at
predened periods of time, typically at 15-minute intervals. The
report setting for an IQCombiner with the Mobile Connect is low
bandwidth mode, which transmits data to the Enphase App four
times a day. After transmission, the data may take several minutes to
display in the Enphase Installer Platform.
Regulatory notices
FCC statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment o and on, you are encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the cellular modem.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit dierent from
that to which the receiver is connected.
• Contact Enphase Support for assistance
(https://enphase.com/contact/support). Changes or
modications not expressly approved by the party responsible
for compliance may void the user’s authority to operate the
equipment. This Class B digital apparatus complies with industry
Canada ICES-003.
The following tables list the LED indicator status. The LEDs may be
dicult to see if you view them from an angle. View the LEDs from
the front for a clear view of the LED color.
IQ Combiner 5/5C Quick Install Guide 50
Power
Link
Signal
