enphase IQ Combiner 5C Quick Install Guide

This is the preferred conguration when homeowners want to
minimize their utility bill, reduce their carbon footprint, and have the
option to save the excess power generated by their solar system for
consumption in non-sunlight hours. A site can store the energy the
solar system makes and use it anytime, day or night, rain or shine.
The microinverter ranges supported in this conguration are
IQ6/IQ7 or IQ8. The battery supported in this conguration is
the IQBattery5P. The IQCombiner 5/5C supports a total of 80
A of solar and battery circuits. Based on the total system size
(solar+IQBattery5P) being installed, homeowners have the option
of installing the IQBattery5P either on the IQCombiner5/5C or
on the main load center. If the total system size is less than 80 A, it is
recommended to install the IQBattery5P (along with the solar) on
the IQCombiner5/5C.

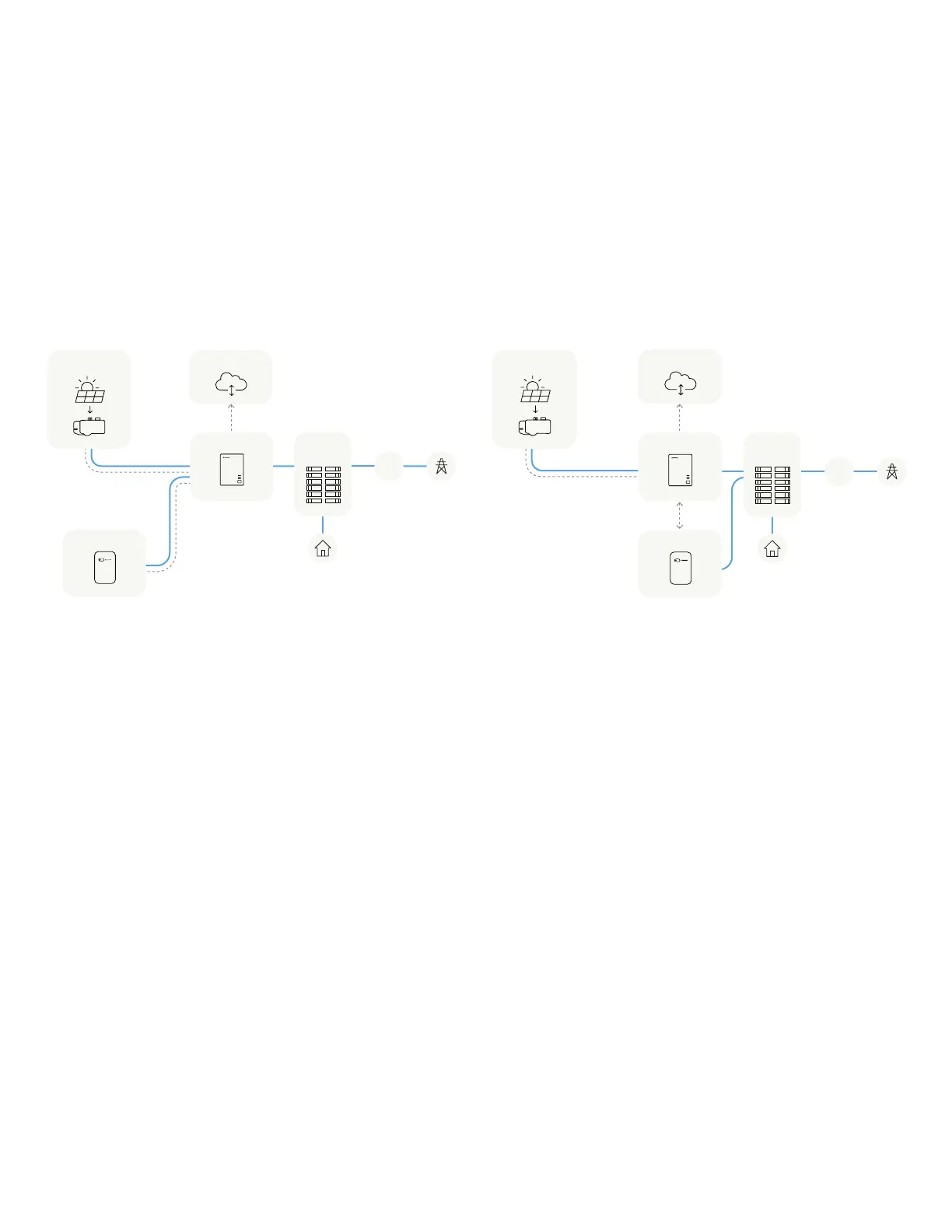

IQBattery 5P connected to IQCombiner5/5C IQBattery 5P connected to main load center
System congurations
Scenario 2:
Solar + Battery without backup
GridUtility meter
Wh
Home loads
Control
wiring
Wi-Fi/Ethernet
& Cellular
AC power line
Enphase Cloud
PLC over AC line
Main load
center
IQ Battery
IQ Combiner 5/5C
IQ6/IQ7 or IQ8
Microinverter
Utility meter
Wh
Control
wiring
Wi-Fi/Ethernet
& Cellular
AC power line
PLC over AC line
Grid
IQ6/IQ7 or IQ8
Microinverter
IQ Combiner 5/5C
Enphase Cloud
Home loads
IQ Battery
Main load
center
IQ Combiner 5/5C Quick Install Guide 6
