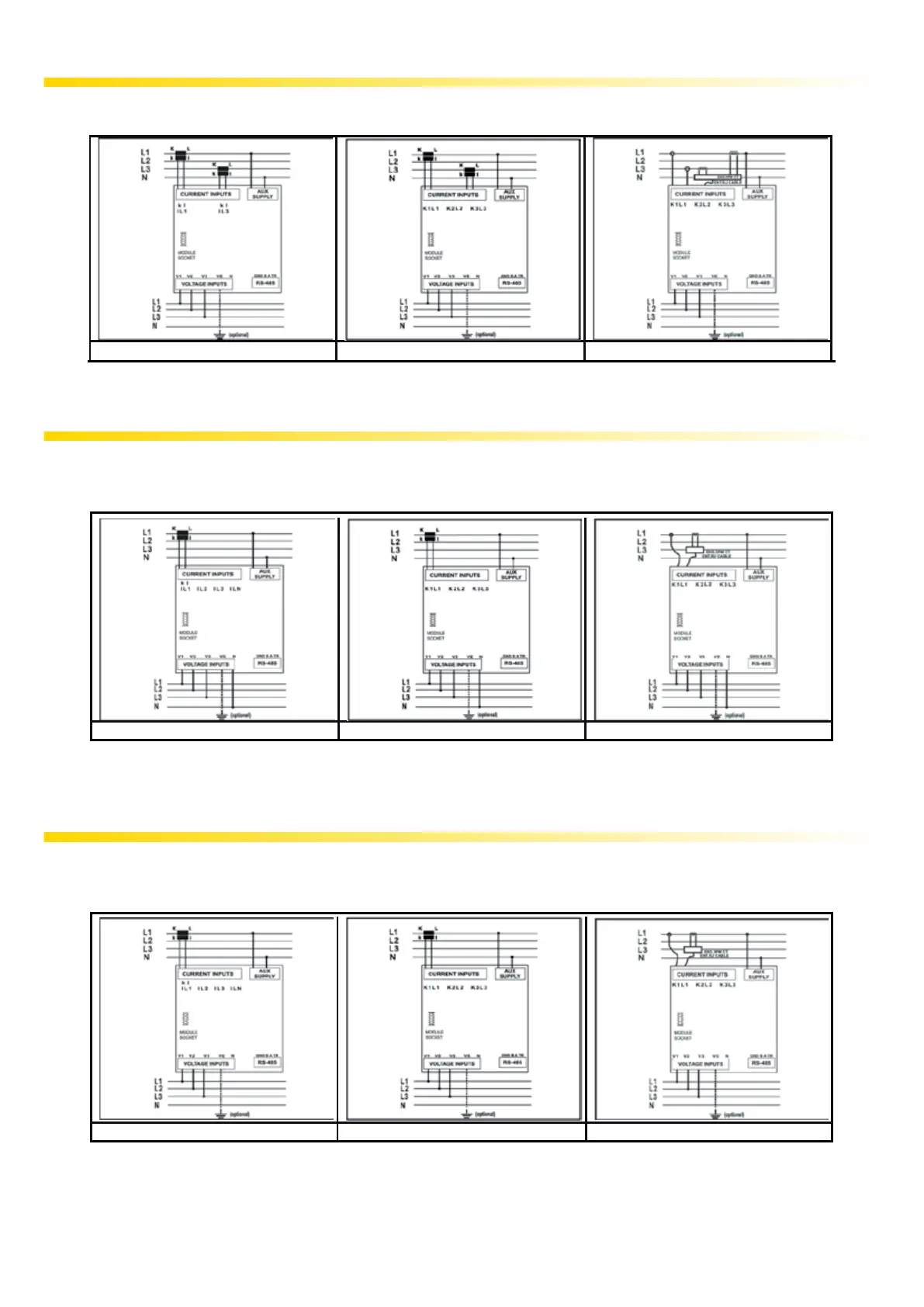

4.3. Aron without Neutral Connection
Three voltages, two current connection is made in this connection type.
MPR-4X M PR-4X-OG/OGT M PR-4X-PM
4.4. 3P4W BLN (3 Phase Balanced with Neutral) Connection
For this conguration, four voltage connections and one current connection is used. The device
shows the same current value, which is measured from the rst phase, for the rest phases.
MPR-4X PR-4X-OG/OGT PR-4X-PM M
M
4.5. 3P3W BLN (3 Phase Balanced without Neutral) Connection
For this conguration, three voltage connections and one current connection is used. The device
shows the same current value, which is measured from the rst phase, for the rest phases.
MPR-4X MPR-4X-OG/OGT MPR-4X-PM
