5.1.2 Power and Power Factor Screens

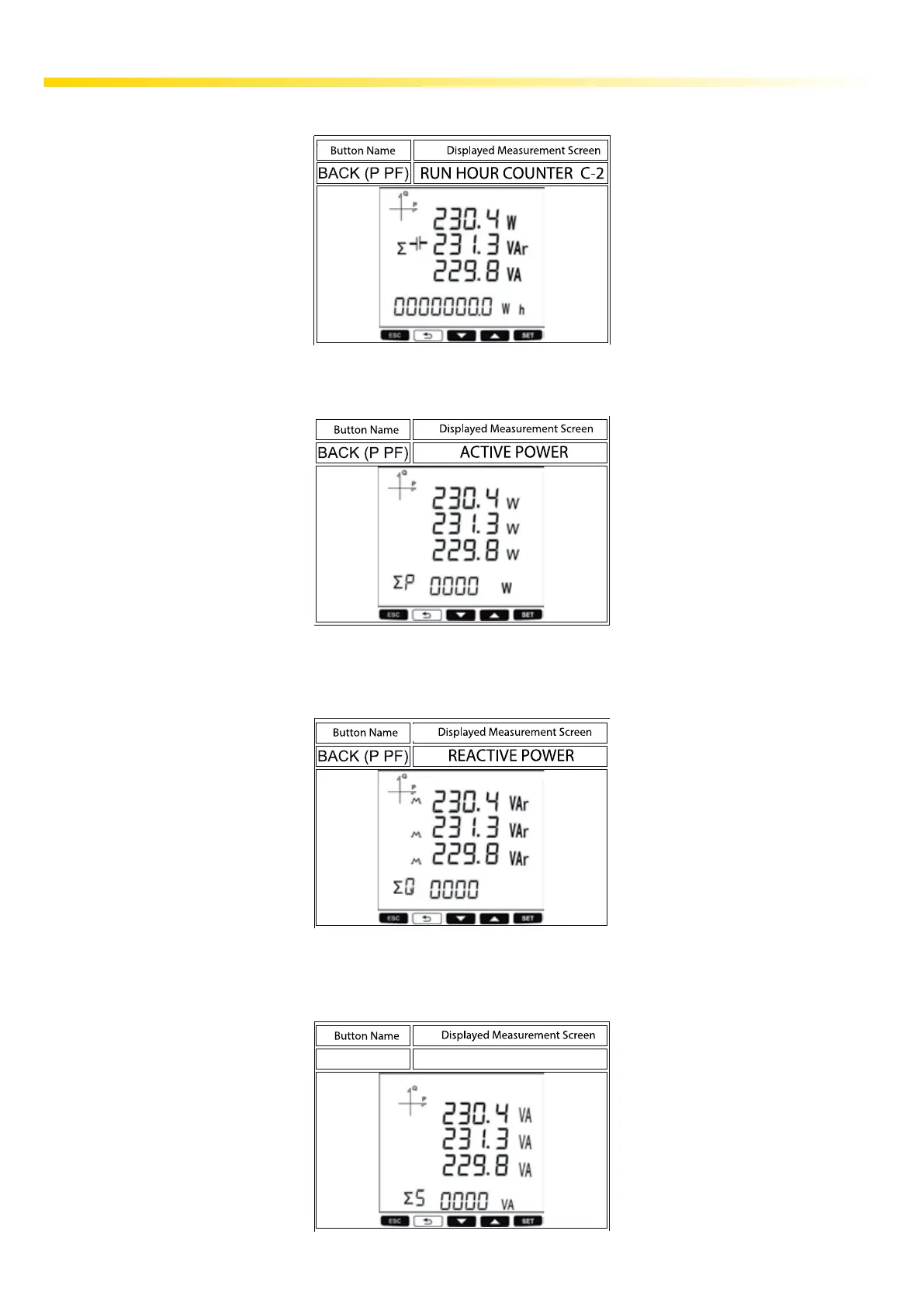

In this menu you can view Total Power (sum of active, reactive and apparent power).
In this screen you can display Active power values for each phases. Sum of all active power values
stand at the last row.
In this screen you can display Reactive Power values for each phases. Sum of all reactive power
values stand at the last row.
In this screen you can display Apparent Power values for each phases. Sum of all apparent power
values stand at the last row.
BACK (P PF)
REACTIVE POWER
