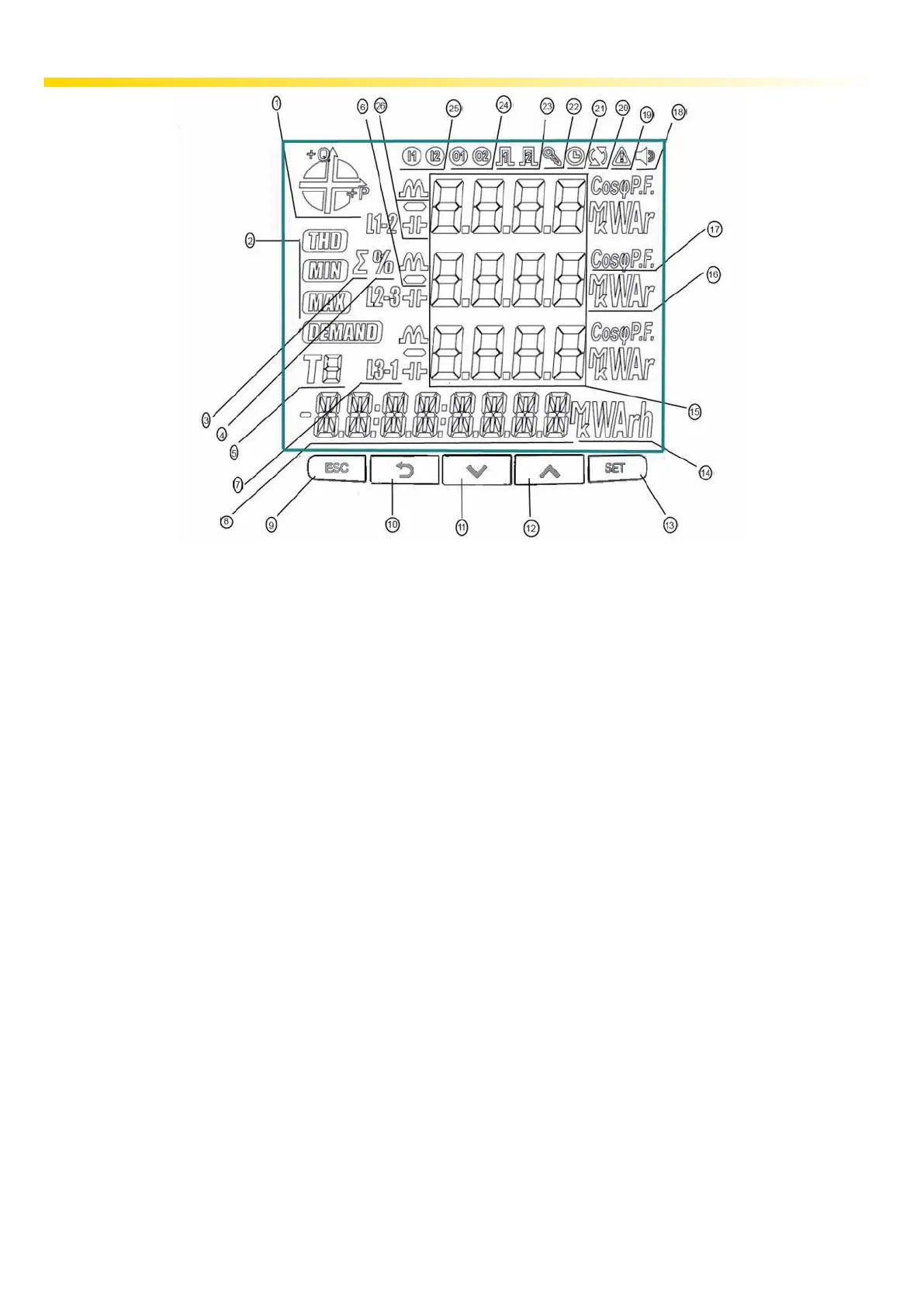

3.4.2. Screen
1- Indicates on which quadrant the network is operating.
2- Indicates that the corresponding screen is one of THD, MIN, Maximum or DEMAND screens.
3- Indicates the total value. (I.e. ΣTHD)
4- Indicates the percent values.
5- Indicates for which tari the energy measurement is.
6- Indicates negative value.
7- Indicates L1, L2, L3 and L1-2, L2-3 and L3-1 measurements.
8- Indicates energy value or time.
14- Indicates the unit of the energy value
15- Indicates measurement results of related screen.
16- Indicates the unit of the measured values.
17- Indicates the value is cosØ or power factor.
18- Indicates whether the alarm is active.
19- Indicates a warning.
20- Indicates whether a connection failure.
21- Indicates that the alarm clock is active.
22- Indicates that the device is locked.
23- Indicates which pulse output is active.
24- Indicates which digital output is active.
25- Indicates which digital input is active.
26- Indicates the measurement is inductive or reactive.
