5. OPERATING INSTRUCTIONS
5.1 Measurement Screens
In this section, the screens to be displayed in order according to the buttons used when the device is
in measurement mode are shown.

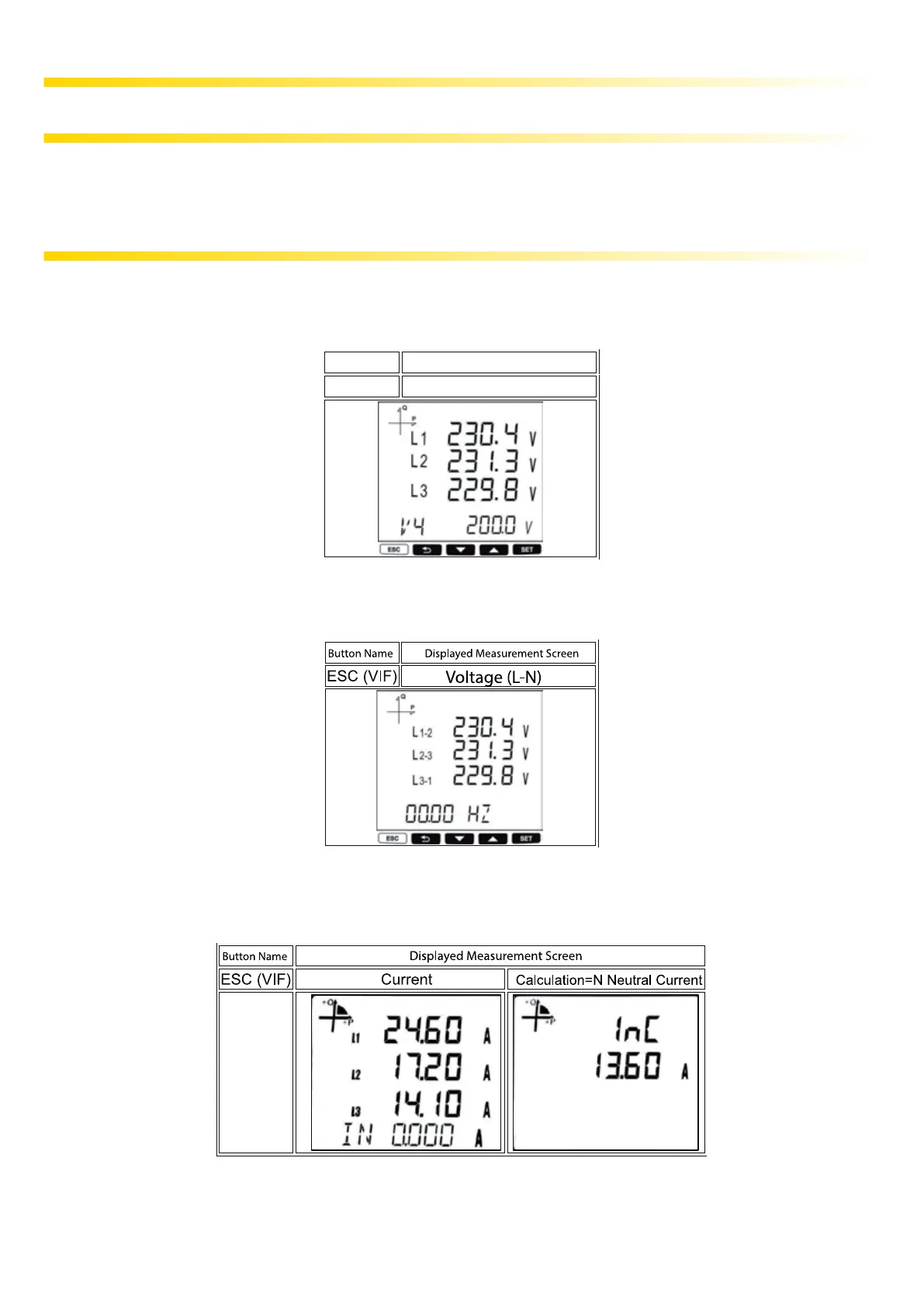

5.1.1 Current, Voltage and Frequency Screens
In this screen you can display measured Phase-Neutral values for each phases.
ESC (VIF)
Button Name Displayed Measurement Screen
Voltage (L-N)
In this screen you can display Phase-Phase Voltage Values. Measured frequency value stands at the last row.
In this screen you can display measured Current and neutral Current values for each phase.
