5.2.4.2. RS-485 Baud Rate Setting
RS-485 communication speed of the device can be set to one of the following options:
1. 2400 bps
2. 4800 bps
3. 9600 bps
4. 19200 bps
5. 38400 bps
6. 57600 bps
7. 115200 bps

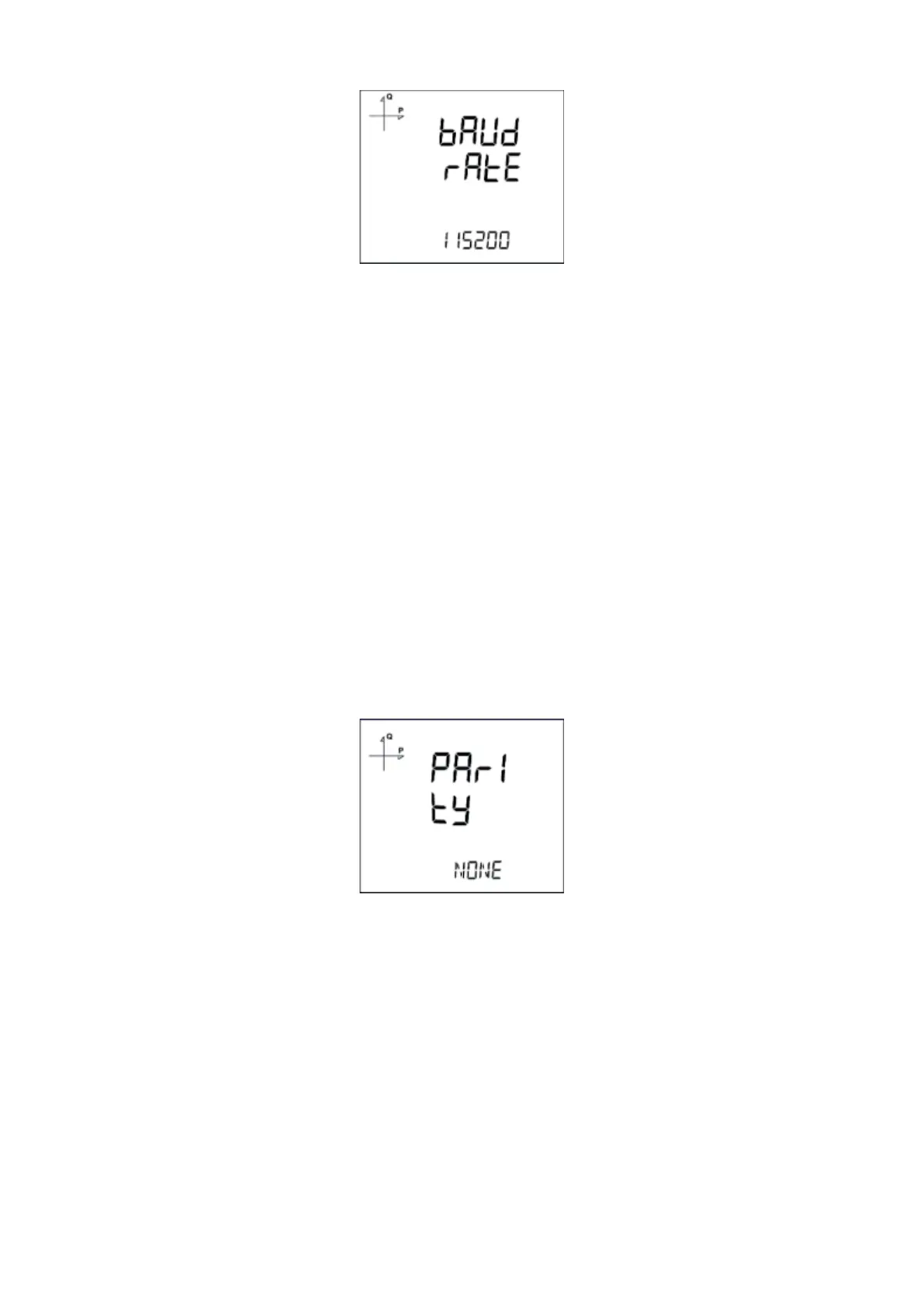

1. Press the SET button while on RS-485 baud rate screen.
2. Press the SET button to start selecting the baud rate value.
3. Select your communication speed by using UP/DOWN buttons.
4. When exiting from the menu with the BACK button, don’t forget to save the changes.
5.2.4.3. RS-485 Parity Setting
Communication parity of the device can be set as Odd, Even or None. Factory default setting for
parity is NONE.
1. Press the SET button while on RS-485 parity screen.
2. Press the SET button to start selecting the parity option.
3. Select your parity by using UP/DOWN buttons.
4. When exiting from the menu with the BACK button, don’t forget to save the changes.
