56

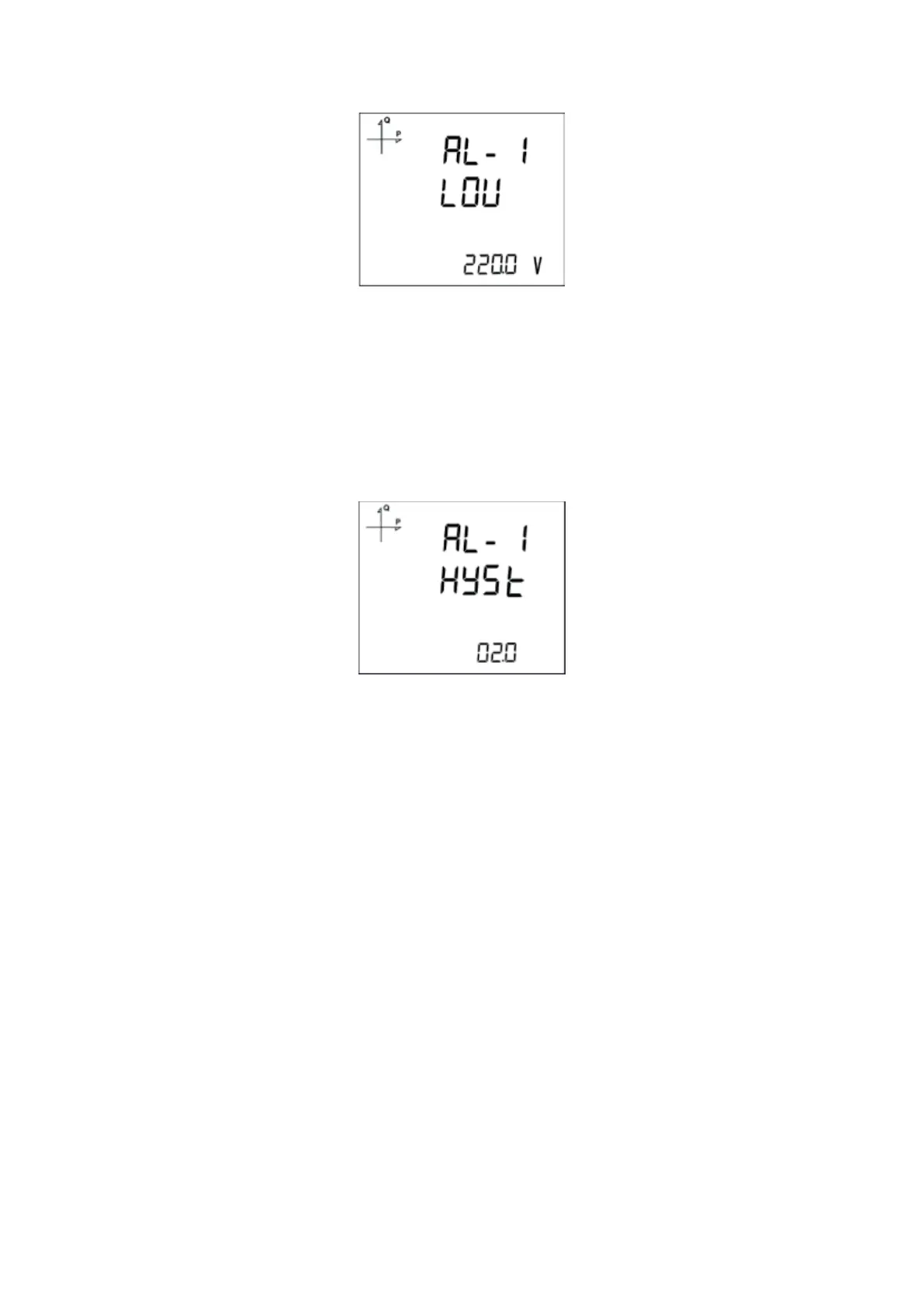

5.2.13.5. Low Alarm Limit Settings
A low limit for the alarm is entered in this menu.
1. While Alarm Enable is selected, nd Alarm Low menu with UP/DOWN buttons.
2. Press the SET button. Enter the low alarm limit with UP/DOWN buttons.
3. Press the SET button after completing your selection.
4. Alarm parameters can be saved for 4 di󰀨erent alarms separately.
5. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.
5.2.13.6. Alarm Hysteresis Setting
A hysteresis value for the alarm is entered in this menu.
1. While Alarm Enable is selected, nd Alarm Hyst menu with UP/DOWN buttons.
2. Press the SET button. Enter the hysteresis value for the alarm as % with UP/DOWN buttons.
3. Press the SET button after completing your selection.
4. Alarm parameters can be saved for 4 di󰀨erent alarms separately.
5. When exiting from the menu with the BACK button, don’t forget to save the changes.
