Double limb circuit with adapter:
1. Plug the adapter (see image below) into the front of the EO 150 ventilator and screw tightly
to ensure the connection.
2. Attach any required accessories (see image below).
3. Connect the inspiratory tubing to the inspiratory port and the exhalation tube to the
exhalation port.
4. Select the circuit type and perform a calibration.

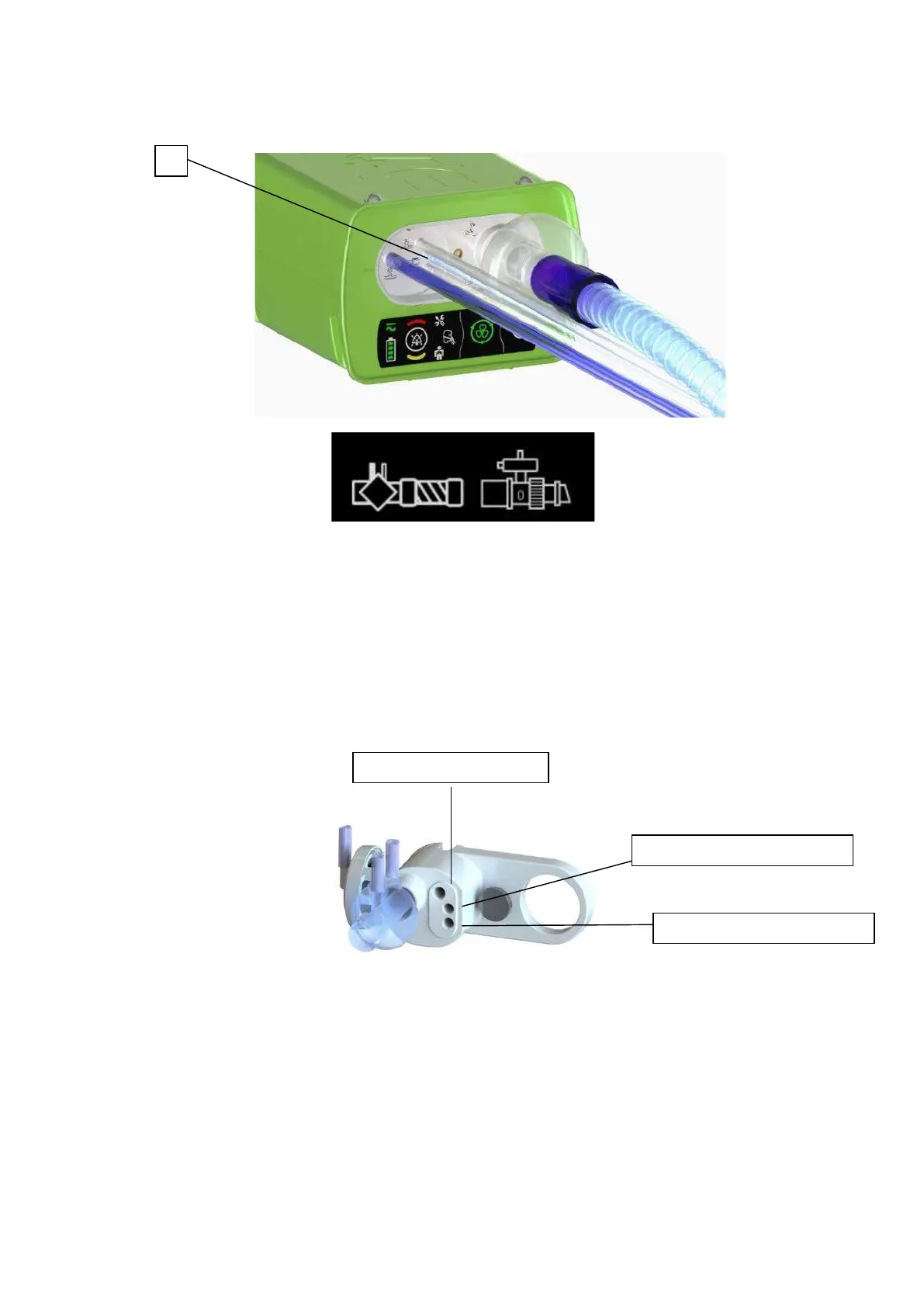

Image: Double Limb Adapter
Exhalation Valve Control Line
Proximal Flow Sensor (Blue Line)
Proximal Flow Sensor (Clear line)
To Next Page
