Connecting circuit configurations
Single limb circuit with valve:
1. Attach any accessories that may be required (eg. Humidifier or filter)

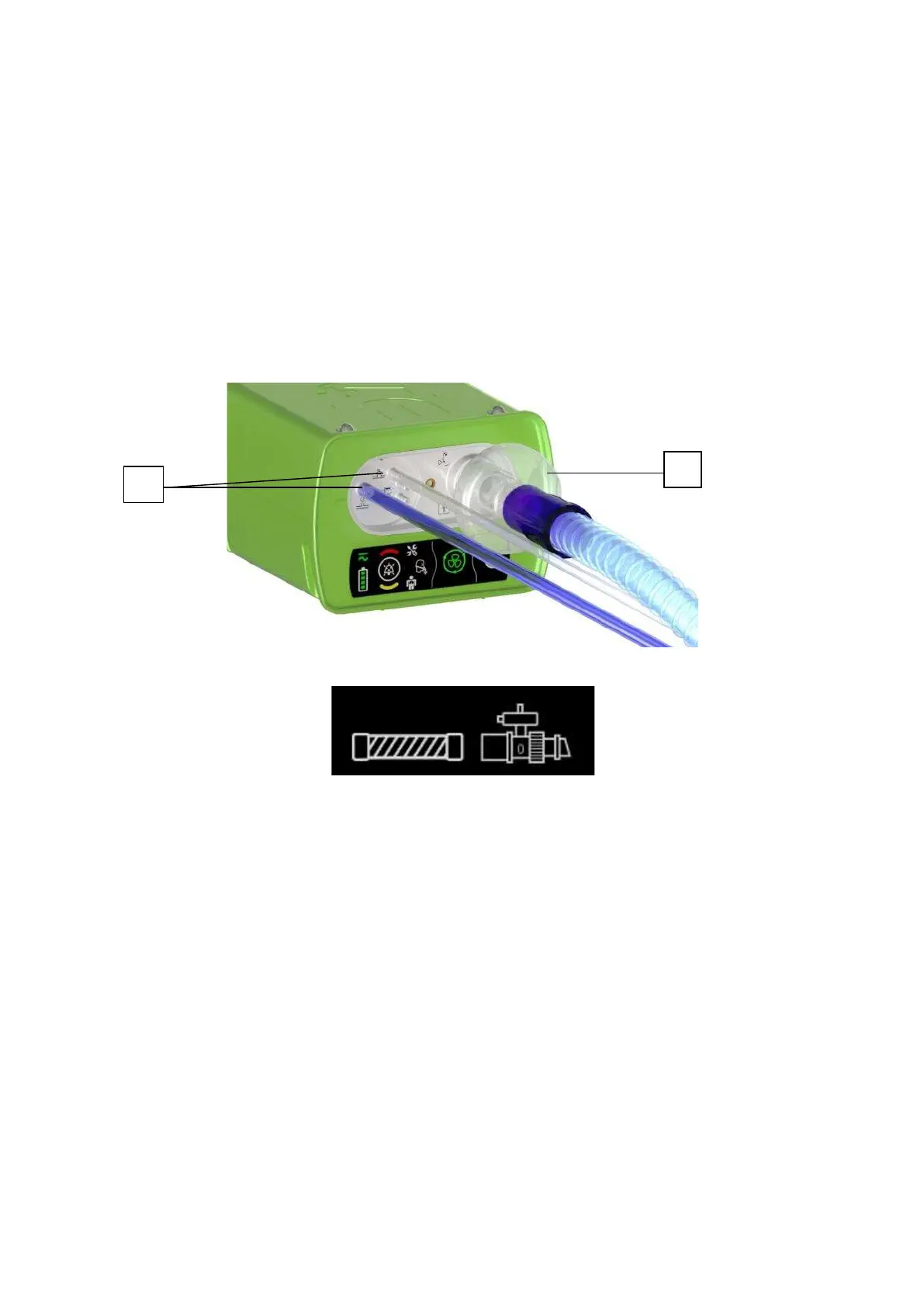

2. Connect the tubing to the inspiratory/circuit port on the front of the device (see image)
3. Attach the proximal pressure line and the valve to the proximal pressure and valve ports.(see
image)
4. Select the circuit type and patient type (adult/pediatric) in the configuration menu and
perform a calibration.
5. Attach the patient mask or other interface to the patient circuit.
Single limb circuit with proximal flow:
1. Follow steps 1-3 of the single limb with valve (see above)
2. Add the proximal flow sensor to the patient circuit end (blue tube on patient side)
3. Connect the proximal flow tubes to the proximal flow connectors (blue tube to upper
connector)
4. Verify that the blue tube on the flow sensor is closest to the patient side.
5. Select the circuit and patient type and perform a calibration.
