The photo above shows the same flashlight at a severe angle to horizontal. If your
cylinder is not horizontal to the X-beam the laser will lose focus as the carriage head
moves across the flashlight. This causes the engraving quality on the right hand side
to suffer dramatically.
Use the scissor jack to
raise the right side of the
cylinder so that the
engraving/cutting surface
is horizontal.

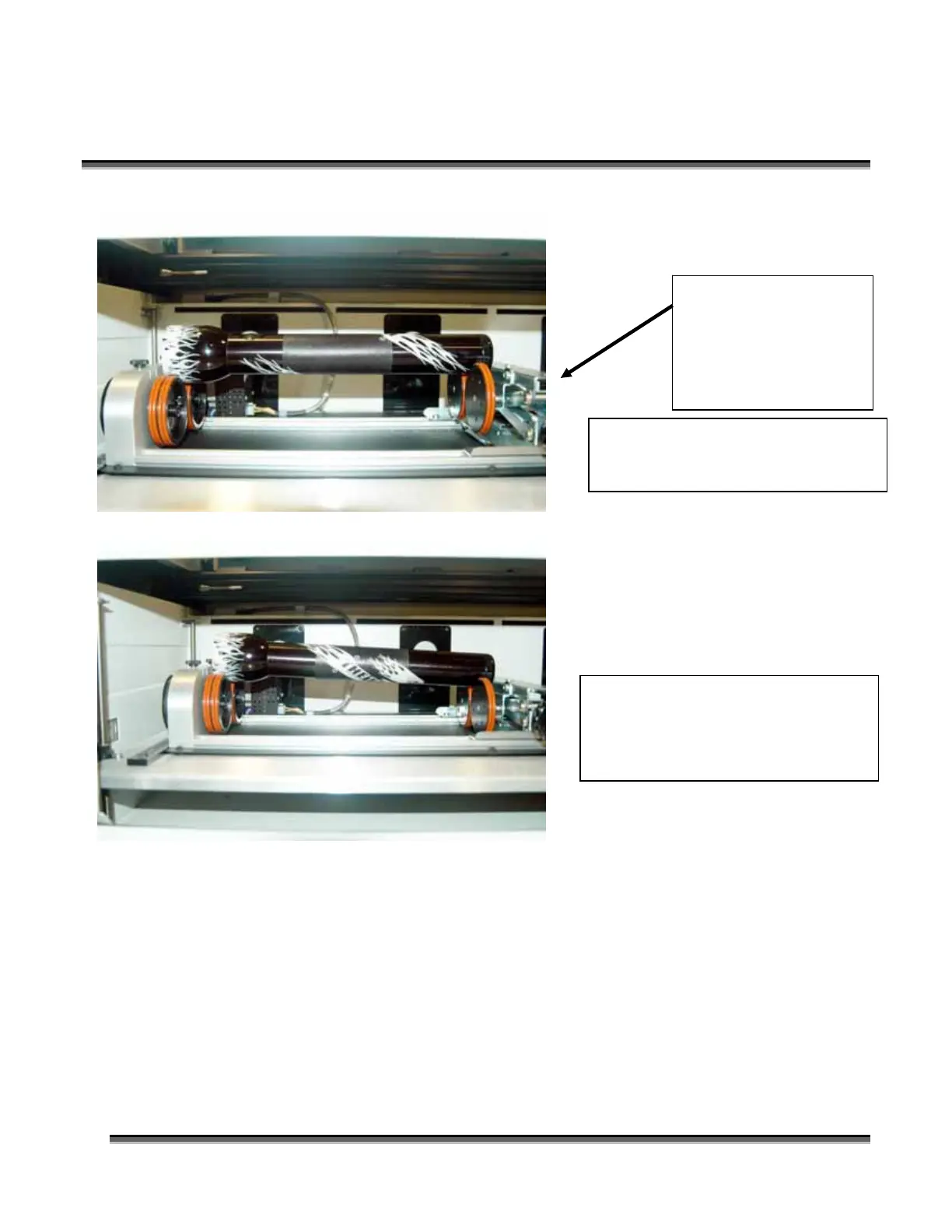

Incorrect Setup – The flashlight
is not horizontal. Raise the right side
of the flashlight by turning the jack
screw.
Correct Setup – The flashlight is
horizontal to the X-Beam.
