Appendix C Additional Dashboard Instructions
238

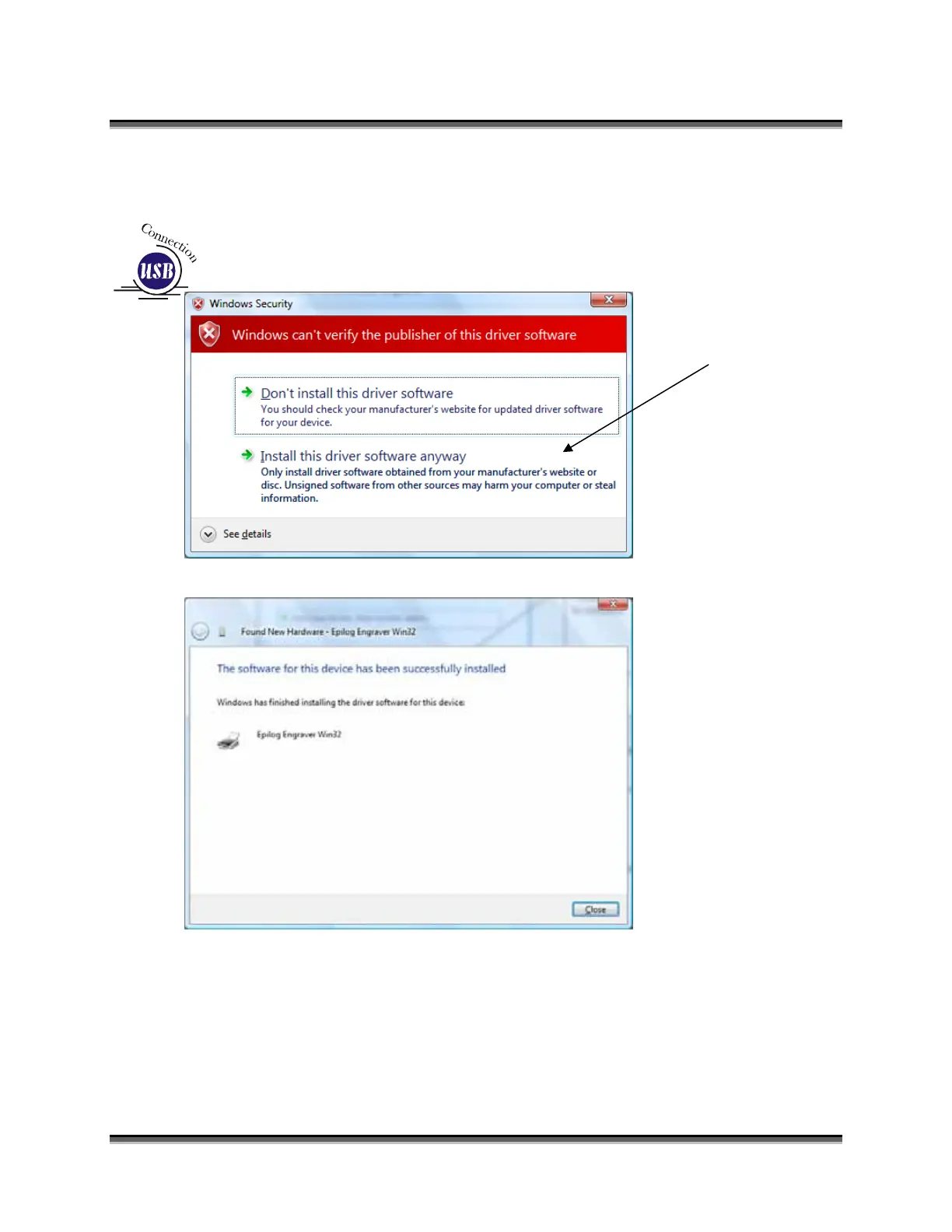

Click
on
Install this
driver software anyway
.
The driver will be
installed by Windows.
When you close this
screen you’re finished
installing the driver. You
can now print to the
laser!
251
253
Table of Contents
Table of Contents
3
Fire Warning
9
Lifting Warning
10
Introduction
11
How to Use this Owner's Manual
11
Epilog Laser Setup
15
Section 1: Safety
17
Laser Safety
17
Electrical Safety
19
Fire Safety
20
Safety Features and Regulatory Compliance
21
CE Certification
25
Section 2: Dos and Don'ts
27
Don't
27
Section 3: Getting Started
29
Setting up Your Laser System
29
Connecting the Exhaust
30
Connecting Electrical Power
33
Laser Cooling Requirements and Operating Temperatures
34
Section 4: Connecting the Laser to Your Computer
35
Connecting the Laser to Your Computer
35
USB Port
36
Ethernet (NET) Port
36
Section 5: Installing the Epilog Dashboard Print Driver
37
Installing the Dashboard Driver Using an Ethernet Connection and a Crossover Cable
38
Section 6: Quick Start & Easy Setup
57
Artwork Setup
59
Job Setup
62
Basic Operations
67
Section 7: Using the Epilog Dashboard Driver
69
General Tab
72
Advanced Tab
104
Color Mapping Tab
117
Additional Dashboard Driver Features
127
Changing Dashboard Driver Defaults
129
Section 8: Using the Front Control Panel
131
Keyboard Commands
132
Job Storage
140
Section 9: Standard & Optional Machine Features
141
Red Dot Pointer
142
Air Curtain
142
Air Curtain Pump
142
Vector Cutting Grid/Vacuum Table
143
Zing 24 Rotary Attachment
147
Pin Table
164
Section 10: Engraving Machine Cleaning
170
Cleaning - Important
170
Fire Warning
170
Laser Tube
174
Section 11: Engraving Machine Calibration / Maintenance
175
Calibration Settings Using the Keyboard
175
Section 12: Speed and Power Recommendations
179
Engraving Speed
179
Engraving Power
179
Recommendations
181
Multiple Passes
182
30 Watt - Epilog Zing
183
Watt - Epilog Zing
184
50 Watt - Epilog Zing
185
60 Watt - Epilog Zing
186
Section 13: Material Engraving Techniques
187
Acrylic
187
Fire Warning
187
Anodized Aluminum
190
Brass - Painted
190
Glass
192
Notary Seals - Delrin
194
Plastic
195
Rubber Stamps
197
Wood
205
Section 14: Material Suppliers
211
Technical Support, Troubleshooting and Specifications
217
Section 15: in Case of Difficulty
219
Contacting Technical Support
219
Avoiding Common Print Problems
220
Section 16: Specifications
223
Zing 16 X 12 Specifications
223
Zing 24 X 12 Specifications
224
Compatibility
225
Recommended PC
225
Other Computer Hardware Recommendations
227
About the Laser
228
Federal Communications Commission (FCC) Notice
229
Section 17: Upgrading the Operational Firmware
231
Upgrading Your Firmware
231
Installing New Firmware Onto Your Computer
232
Transferring New Firmware from Your Computer to Your Laser
234
Upgrading the Epilog Dashboard
238
Converting Old .DAT Files to be Compatible with a New Dashboard
239
Appendix Awarranty Statement
243
Appendix Bprinting from Autocad
245
Appendix C Additional Dashboard Print Driver Instructions
249
Dashboard Driver Installation for USB Connection Using Windows Vista
249
Windows Vista Dashboard Driver Installation for Ethernet Connection
253
Windows 7 - Driver Installation Instructions - Setting up the TCP/IP Address in the Computer
270
Index
276
