Chapter 5 Parts List
Epson AcuLaser C2900N
Revision B
Confidential
MiS05102SA

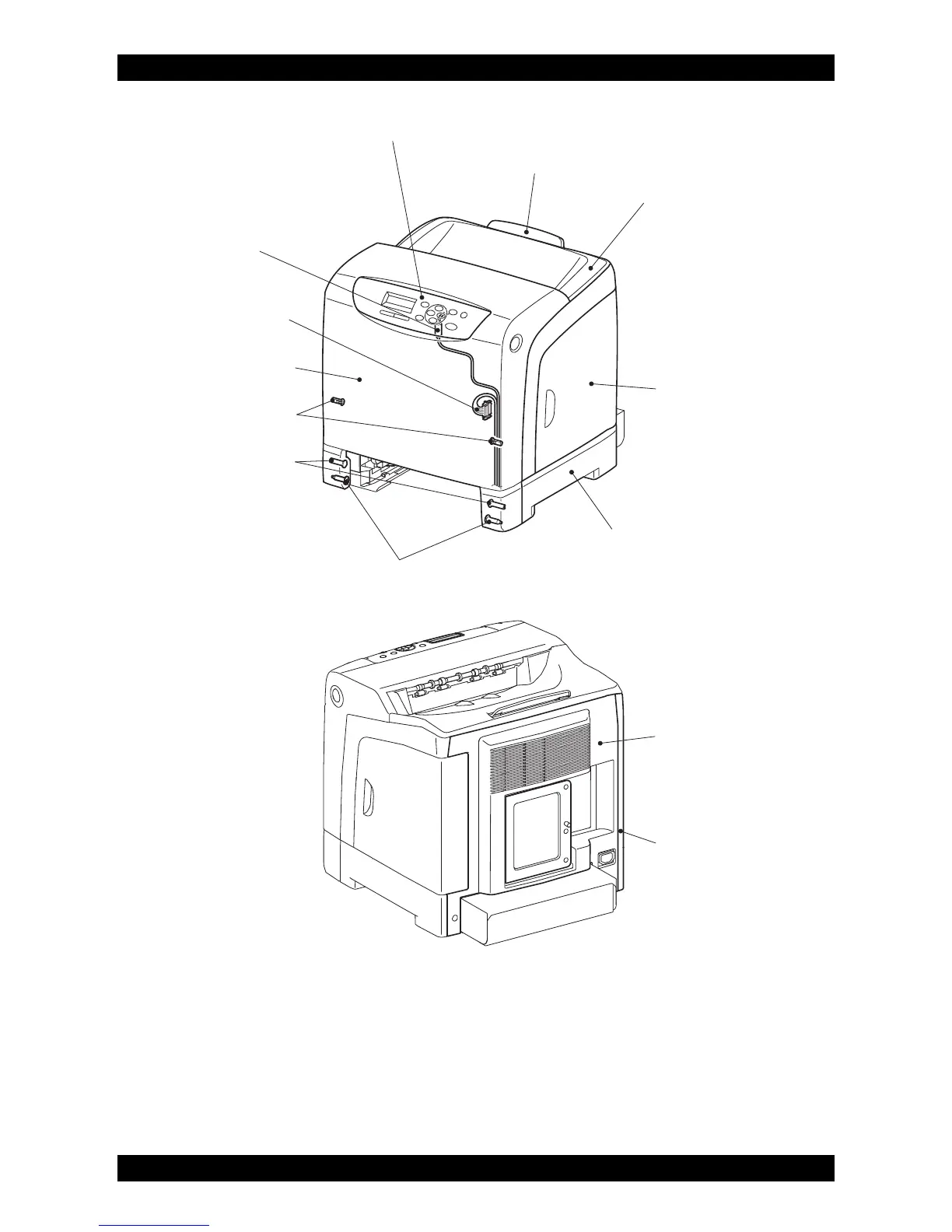

KIT SHAFT PIVOT
[Ref PL1.2.98]
COVER ASSY TOP
[Ref PL1.1.1]
TRAY EXT MAIN
[Ref PL1.1.2]
CONSOLE ASSY PANEL
[Ref PL1.2.3]
COVER SIDE L
[Ref PL1.1.19]
COVER REAR
[Ref PL1.1.3]
COVER SIDE R
[Ref PL1.1.6]
COVER ASSY
WINDOW TNR
[Ref PL1.1.7]
COVER ASSY FRONT MG
[Ref PL1.2.1]
KIT SHAFT LINK FRONT
[Ref PL1.2.96]
KIT SHAFT LINK FRONT
FDR SA
[Ref PL1.2.97]
HARNESS ASSY PNL A
[Ref PL1.2.12]
HARN ASSY DUP RELAY
[Ref PL1.2.13]
