Epson AcuLaser C2900N - Feeding from Paper Tray

6 - 17
Chapter 6 Principles of Operation
Epson AcuLaser C2900N
Revision B
Confidential
2.3 Feeding from Paper Tray
When the paper tray is inserted into the feeder section, the projections on the CHASSIS FDR L
(PL3.1.8) and the CHASSIS FDR R (PL3.1.4) press the LATCH BOTTOM L (PL2.1.14) and the LATCH
BOTTOM R (PL2.1.15) inward until they are unlocked.
This allows the PLATE ASSY BOTTOM (PL2.1.2) to be lifted by the spring pressure of the SPRING N/
F L (PL2.1.3) and SPRING N/F R (PL2.1.4) to the position where it can feed sheets.
Upon the start of sheet feeding from the paper tray, the ROLL ASSY FEED (PL3.2.4) starts rotating
driven by the torque from the DRIVE ASSY MAIN (PL7.1.2) under control of the SOLENOID FEED MSI
(PL3.1.11) to feed the sheets to the REGI ROLL (ROLL REGI METAL: PL3.2.10/ROLL ASSY REGI:
PL3.2.9).

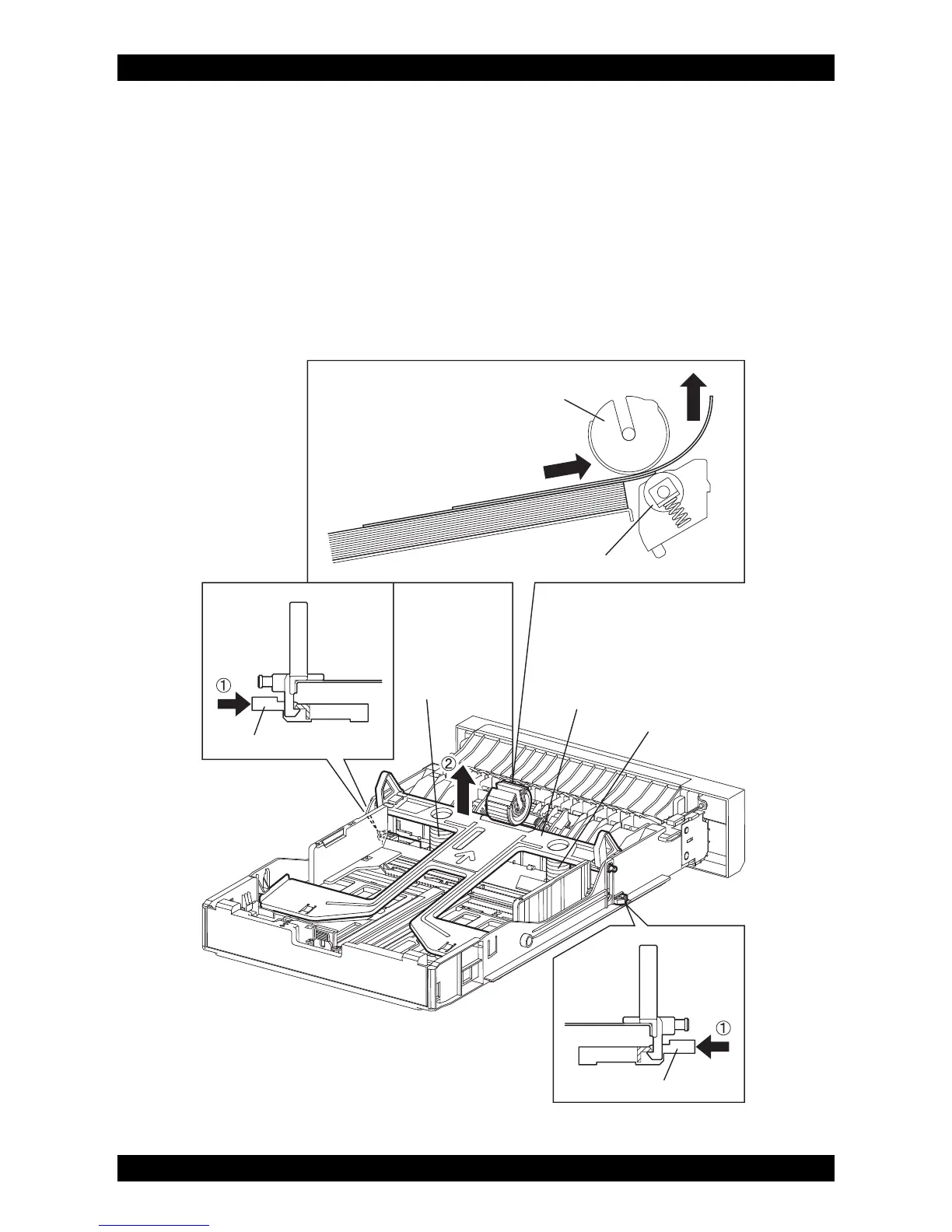

MiS06023SA
LATCH BOTTOM R
LATCH BOTTOM L
SPRING N/F L
PLATE ASSY BOTTOM
ROLL ASSY FEED
Retard Roller
SPRING N/F R
