Epson AcuLaser C2900N Service Manual

6 - 39
Chapter 6 Principles of Operation
Epson AcuLaser C2900N
Revision B
Confidential
3.8 Drive
3.8.1 Major functions
- DRIVE ASSY MAIN (PL7.1.2) (Refer to 6.1 DRIVE ASSY MAIN)
Supplies the drive to parts as follows.
• DRIVE ASSY PH
• TRANSFER ASSY
• CHUTE ASSY FDR REGI
• Drum Cartridge
• DRUM (Y, M, C, K)
- DRIVE ASSY SUB
Supplies the drive to parts as follows.
• FUSER UNIT
• DEVELOPER (YMCK)

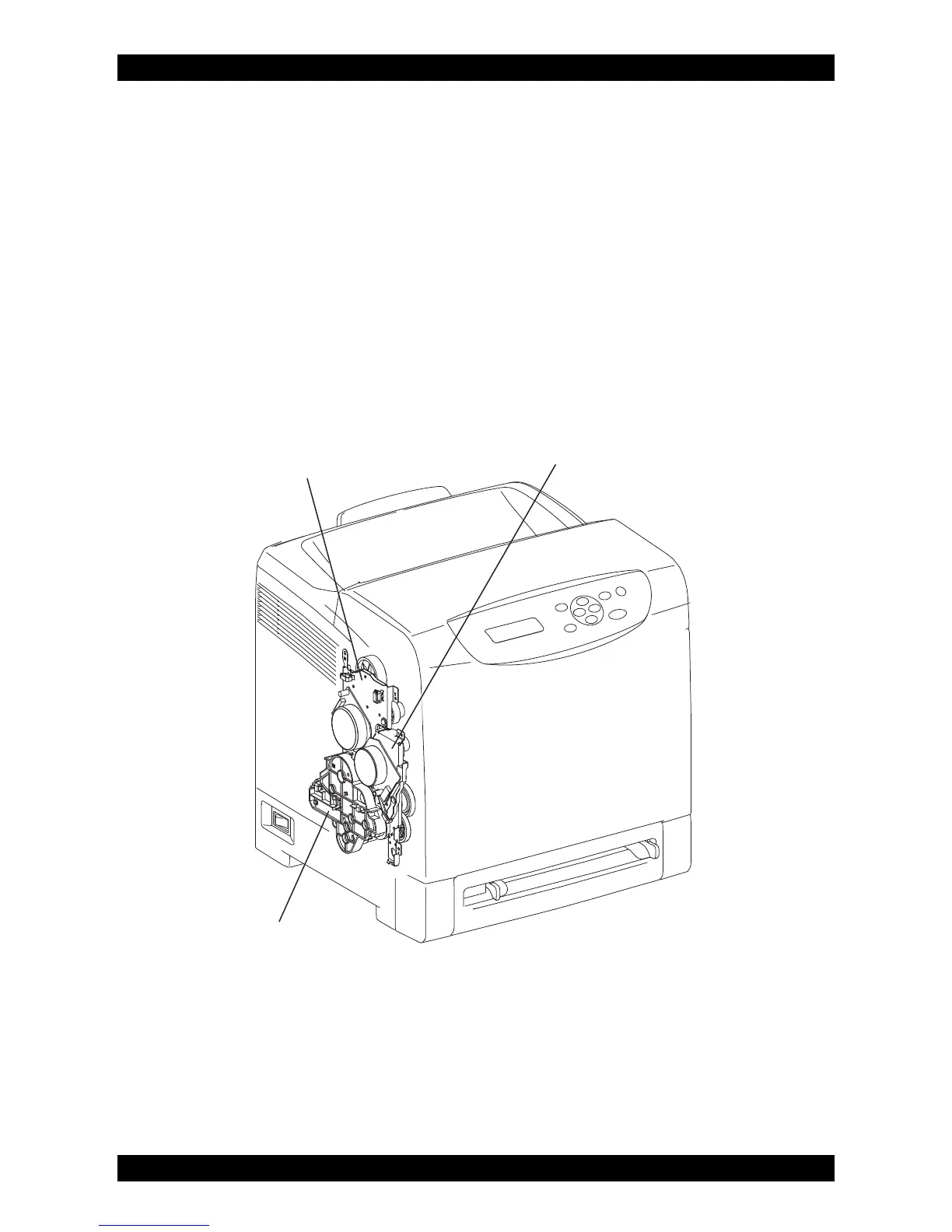

DRIVE ASSY SUB
DRIVE ASSY MAIN
DRIVE ASSY PH
MiS06042SA
