Epson AcuLaser C2900N - Waste Toner Collection

6 - 14
Chapter 6 Principles of Operation
Epson AcuLaser C2900N
Revision B
Confidential
1.3.8 Waste Toner Collection
(1) The excess toner is collected by the cleaner blade contacting the drum, and then carried to the
AUGER CLNG SIDE by the Auger.
(2) The toner is carried by the AUGER CLNG SIDE to the joint to the collection box in the toner car-
tridge.
(3) The toner then falls into the collection box in the toner cartridge.

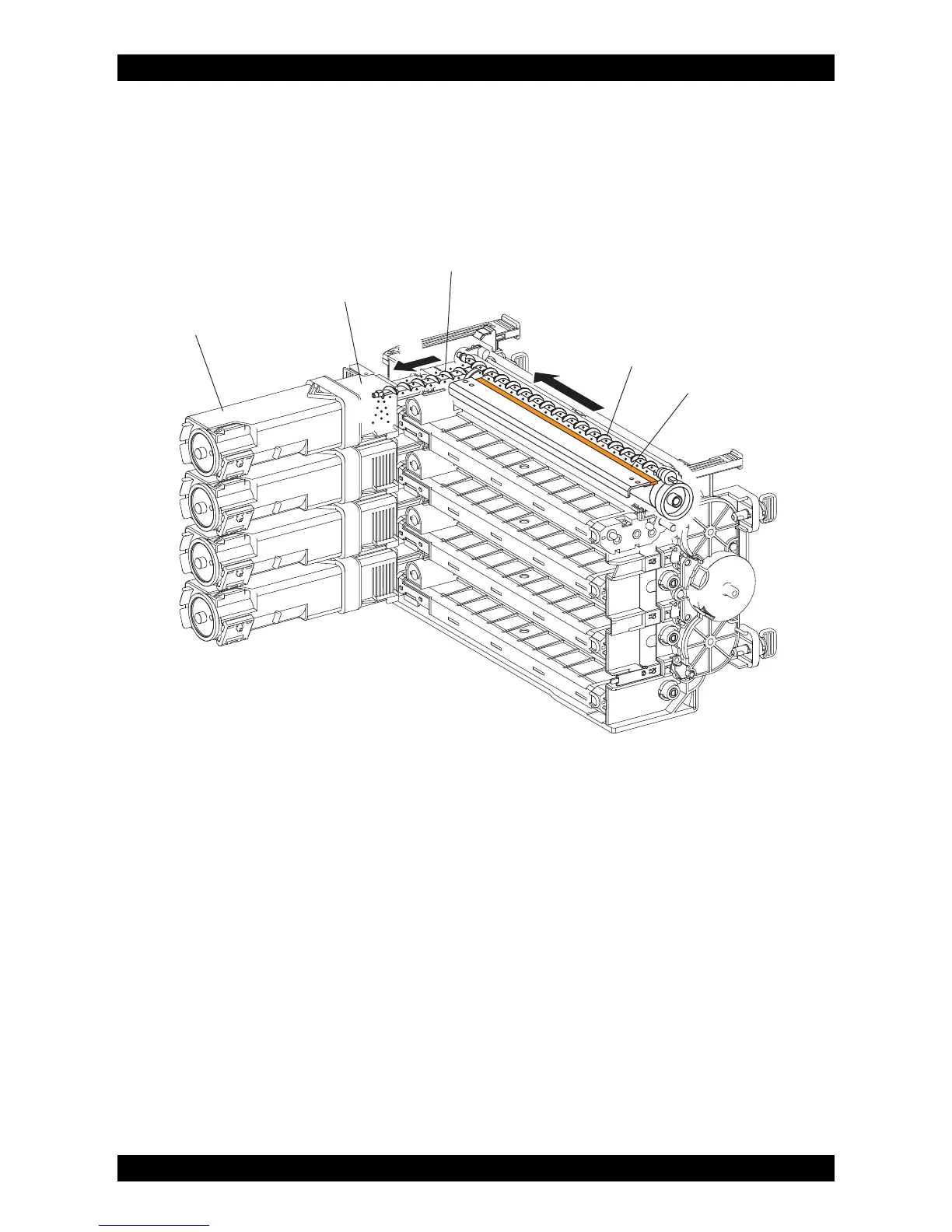

Wsb06006KA
Toner Cartridge
Collection Box
AUGER CLNG SIDE
Auger
Cleaner Blade
1)
2)
3)
