Epson AcuLaser C2900N Service Manual

6 - 20
Chapter 6 Principles of Operation
Epson AcuLaser C2900N
Revision B
Confidential
2.5 Feeding in Registration Section

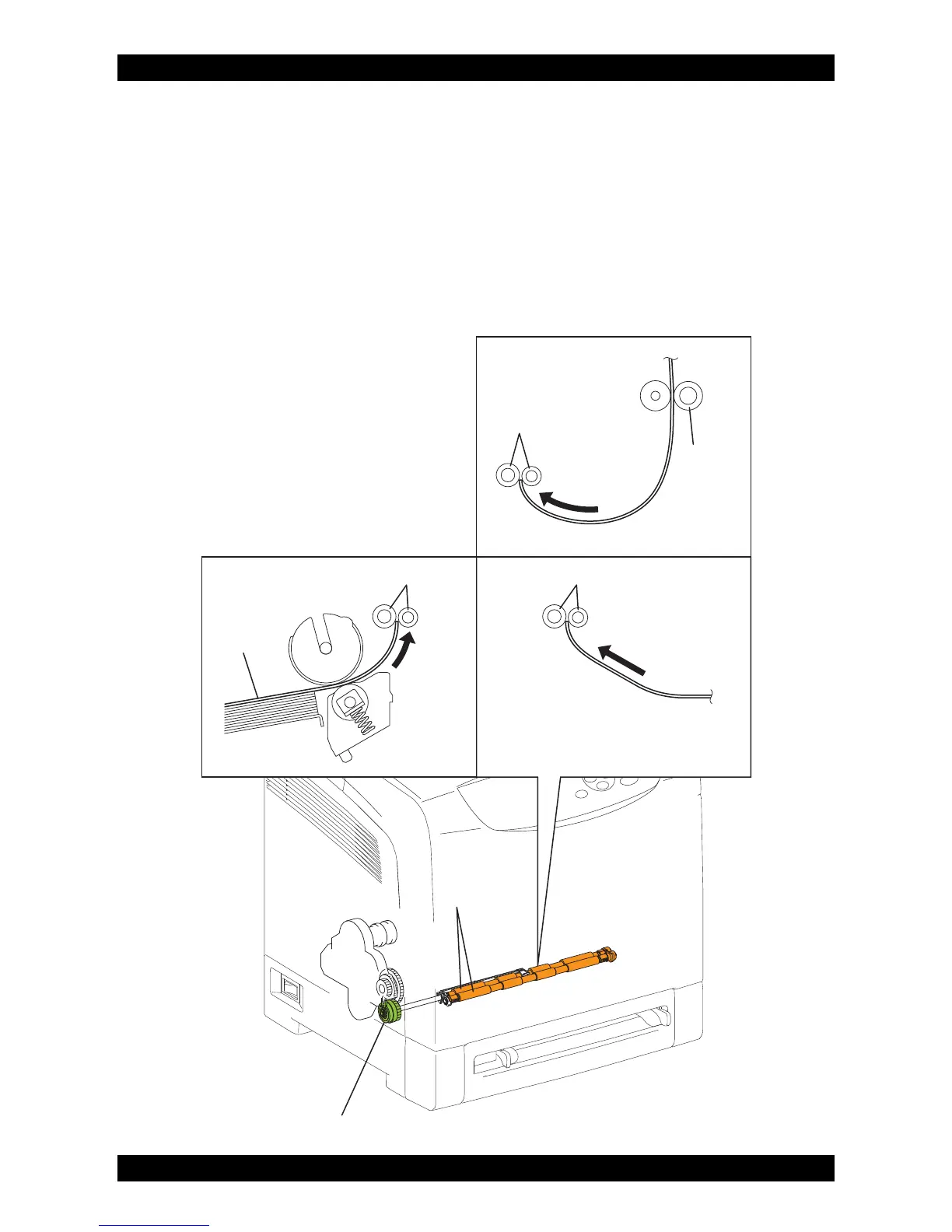

The sheet fed to the registration section from the paper tray, SSI, or duplex section is fed to the toner
transfer section (TRANSFER ASSY: PL6.1.7) by the REGI ROLL (ROLL ASSY REGI: PL3.2.9) that
rotates by the torque from the DRIVE ASSY MAIN (PL7.1.2) under control of the CLUTCH ASSY DRV
(PL3.1.1).
From the duplex section to the registration section, the sheet is fed by the rotation of the ROLL ASSY
DUP (PL11.2.9). (Refer to "2.7 Feeding in Duplex Section")
At the registration section, the lead edge position of the sheet is corrected (Refer to "Lead-edge Regis-
tration") before the sheets are fed to the toner transfer section (TRANSFER ASSY: PL6.1.7).
MiS06026SA
REGI ROLL
CLUTCH ASSY DRV
REGI ROLL REGI ROLL
REGI ROLL
ROLL ASSY
DUP
From Paper tray From SSI
From Duplex
Paper
