6.4 DRIVE ASSY SUB

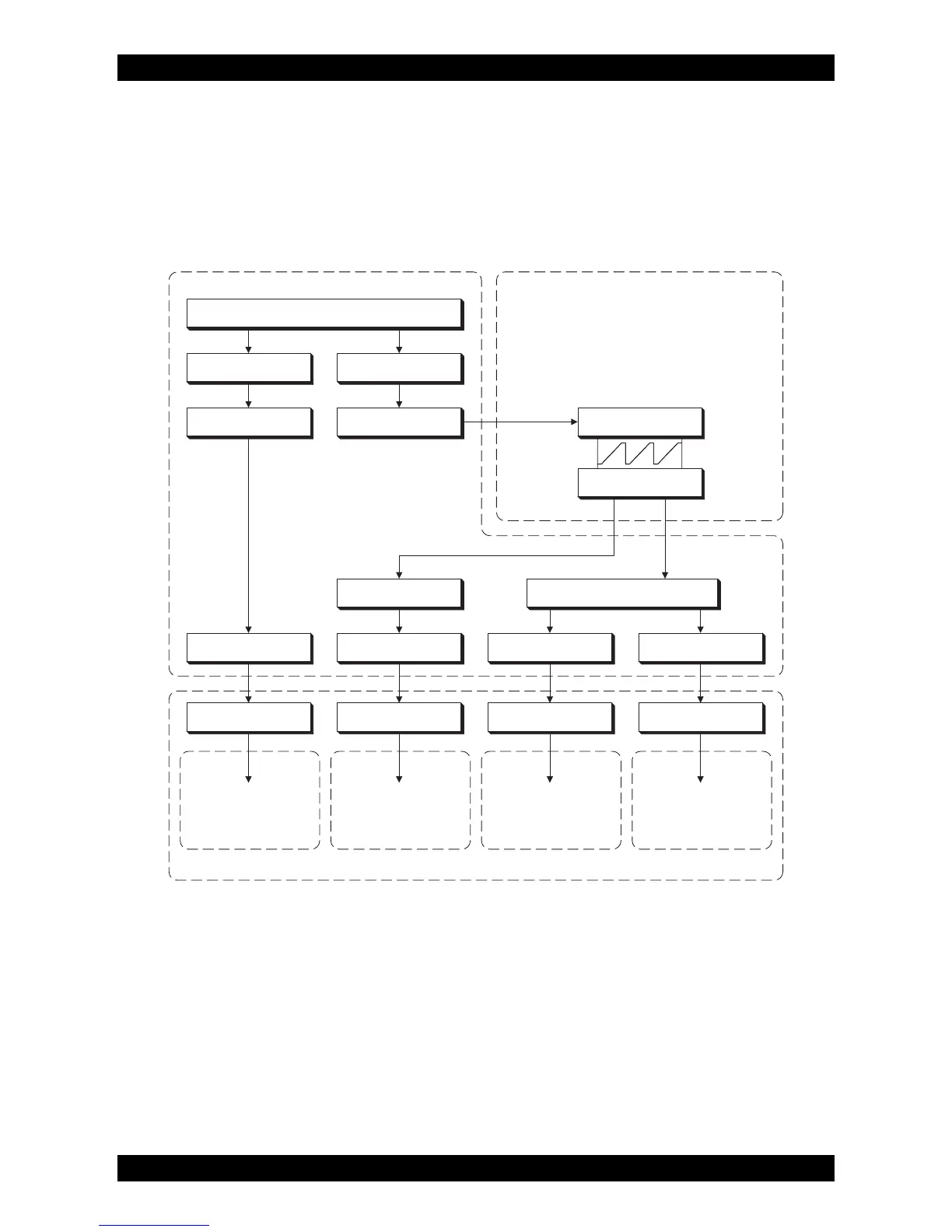

Rotation power of the DRIVE ASSY SUB is transmitted through the route below.
[PAPER HANDLING]
GEAR D1
GEAR D2
GEAR DK
GEAR D1
SUB MOTOR
GEAR D5
GEAR MAG (K)
DRIVE ASSY SUB DRIVE ASSY PH
GEAR D3 IN
GEAR D3 OUT
HSG ASSY DEVE (K)
[ MAGNET ROLL (K) ]
GEAR MAG (C)
HSG ASSY DEVE (C)
[ MAGNET ROLL (C) ]
GEAR MAG (M)
HSG ASSY DEVE (M)
[ MAGNET ROLL (M) ]
GEAR MAG (Y)
GEAR D5 GEAR D5 GEAR D5
GEAR D4
GEAR D4
HSG ASSY DEVE (Y)
[ MAGNET ROLL (Y) ]
Drum Cartridge
MiS06042KA
[ Name of moving parts ]
[ FULL COLOR MODE ]
