Epson AcuLaser C2900N - Customer Replaceable Parts Illustration

5 - 3
Chapter 5 Parts List
Epson AcuLaser C2900N
Revision B
Confidential

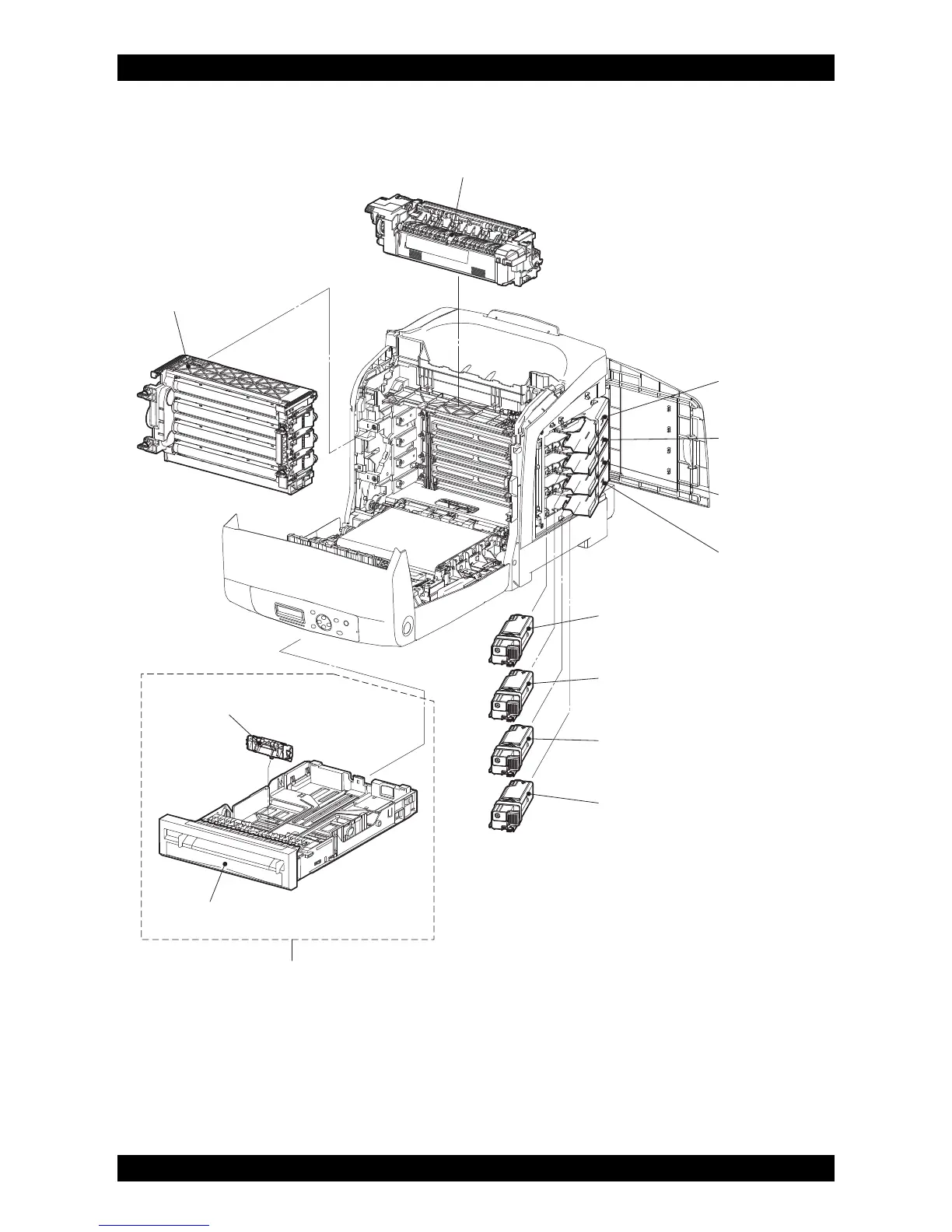

Customer Replaceable Parts Illustration
MiS05101SA
FUSER UNIT
[Ref PL6.1.1]
DRUM CARTRIDGE
[Ref PL4.1.21]
TONER CARTRIDGE (K)
[Ref PL5.1.21]
TONER CARTRIDGE (C)
[Ref PL5.1.22]
TONER CARTRIDGE (M)
[Ref PL5.1.23]
TONER CARTRIDGE (Y)
[Ref PL5.1.24]
HOLDER ASSY
TCRU K
[Ref PL5.1.17]
HOLDER ASSY
TCRU C
[Ref PL5.1.18]
HOLDER ASSY
TCRU M
[Ref PL5.1.19]
HOLDER ASSY
TCRU Y
[Ref PL5.1.20]
HOLDER ASSY RETARD
[Ref PL2.1.5]
HANDLE ASSY CST
[Ref PL2.1.19]
CASSETTE ASSY 250
[Ref PL2.1.1]
