Epson Artison 800 - Upper Housing

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W Revision C
DISASSEMBLY/ASSEMBLY Disassembly Procedures 107
Confidential
4.2.2.5 Upper Housing
 Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy
 Removal procedure

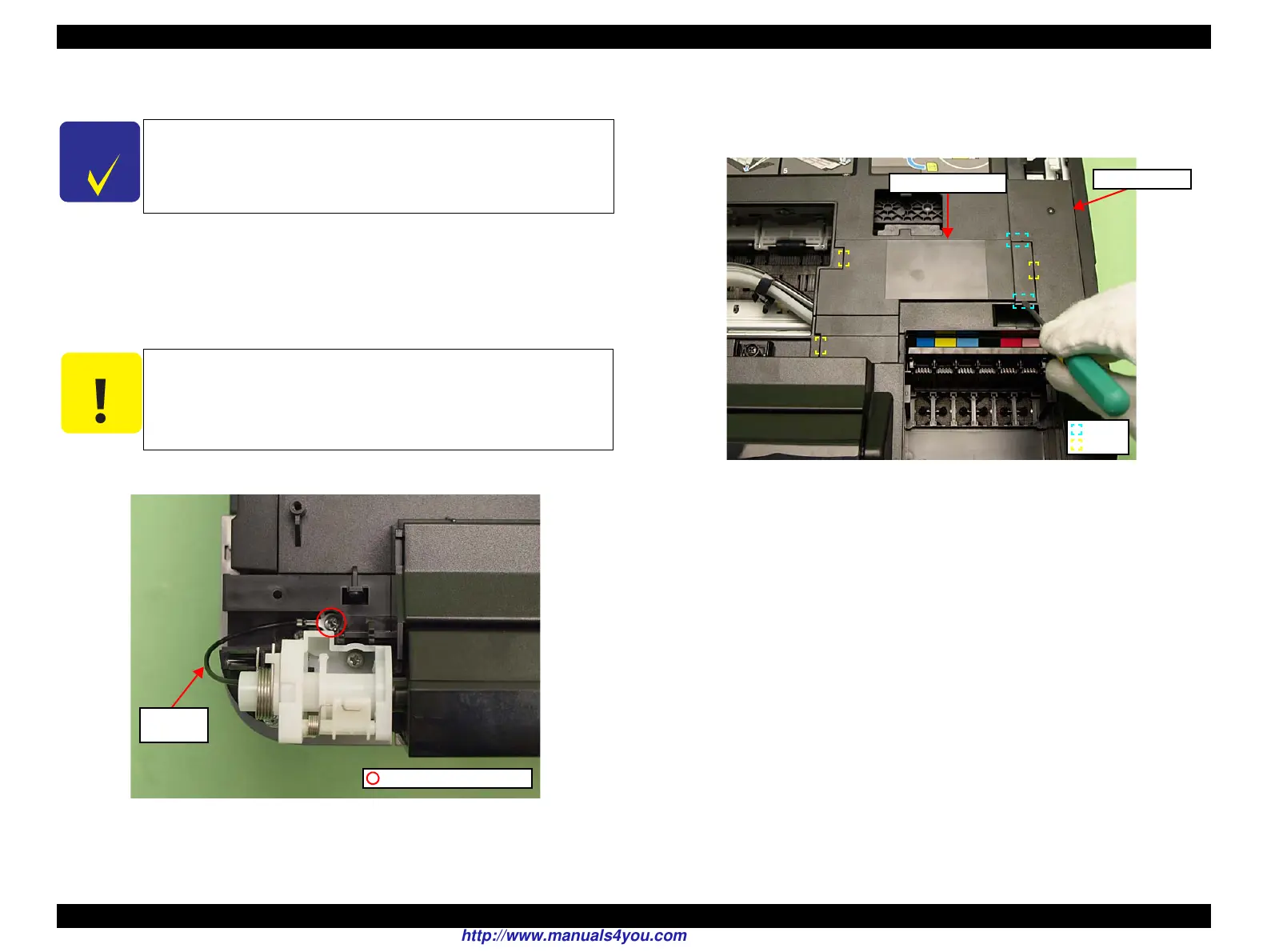

1. Remove the screw (x1) and release the Grounding Wire.
Figure 4-15. Releasing the Grounding Wire
2. Release the hooks (x2) and ribs (x3) of the Front Harness Cover with the
flathead screwdriver, and remove the Front Harness Cover from the Upper
Housing.
Figure 4-16. Removing the Upper Housing (1)
C H E C K
P O I N T
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W differ from those of Artisan 800/PX800FW/TX800FW.
See 4.3.1.3 "Upper Housing (Artisan 700/PX700W/TX700W)"
(p188) for the procedures.
C A U T I O N
The Grounding Wire is attached to the frame with a screw. Be
careful not to deform the Frame when removing the screw.
C.B.S. 3x6 (8±1Kgfcm)
Grounding
Wire
Upper Housing
Hook
Rib
Front Harness Cover
