2.1.4 PG setting
Following is the PG setting for Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W.

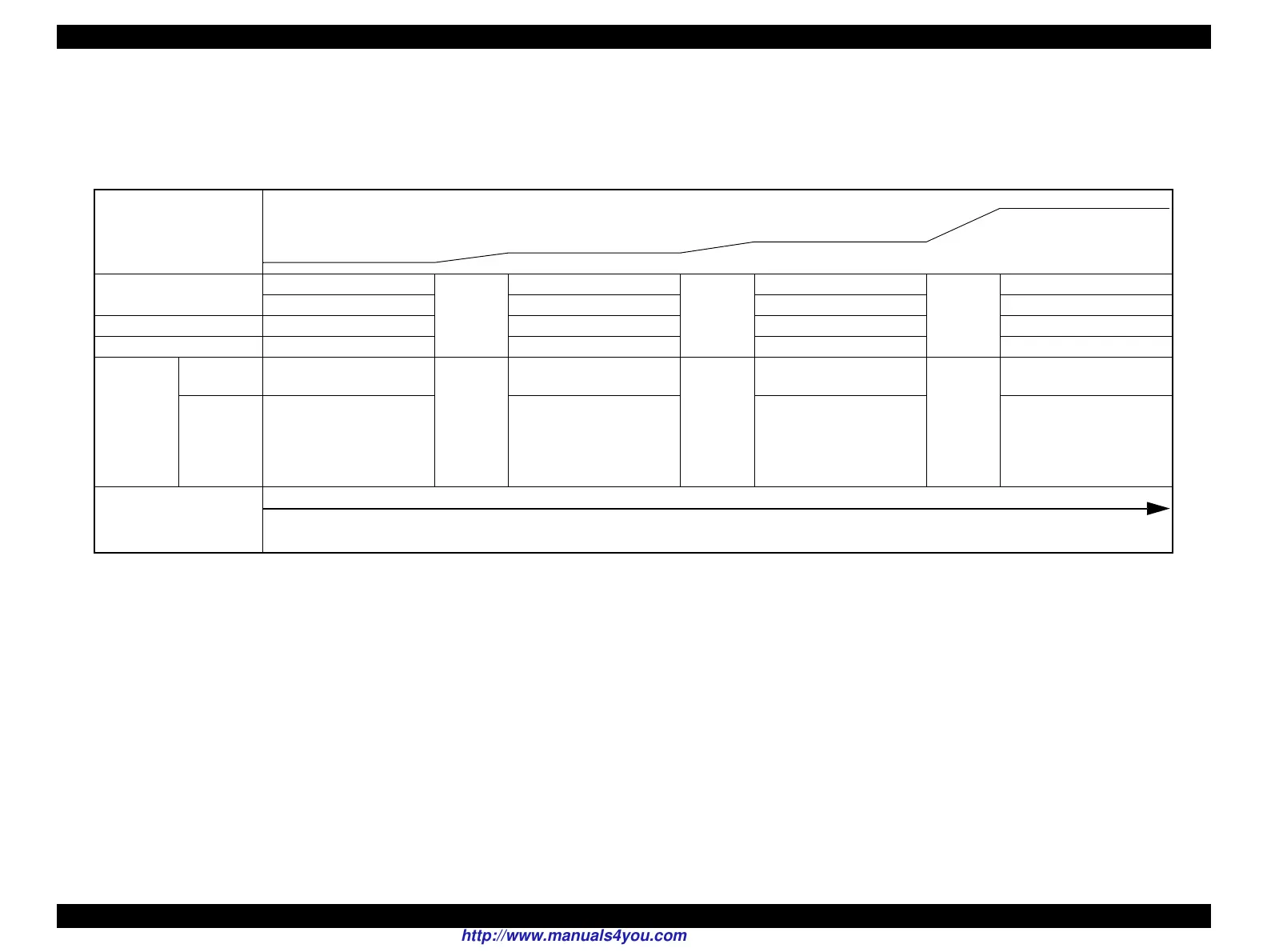

Figure 2-6. PG positions/Cam
PG
Type
Pos.1
→
Pos.2
→
Pos.3
→
Pos.4
PG (-) PG (Typ) PG (+) PG (++)
PG measurement (mm) 1.2 1.7 2.35 5.8
Position name Home position Normal position PG large position PG max position
Description
Printing EPSON brand paper
Plain paper printing
Avoiding friction of PG (-)
Envelope printing
Avoiding friction of PG (Typ)
CD/DVD
Not printing
 Capping
 Wiping
 Ready position after
initialization
 AID
Capping Capping
 Capping
 EJ release
Rotating direction for PF Motor
PG (-)
PG (Typ)
PG (+)
PG (++)
Clockwise
