Epson Artison 800 - PG Offset Value Adjustment

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W Revision C
ADJUSTMENT Adjustment Using Adjustment Program 225
Confidential
5.2.7 PG Offset Value Adjustment
 Overview
To compensate the deviation of the PG position (see Table5.3.1 (p235)) derived from
the difference of the result of PG Adjustment (p235) due to individual variability of the
mechanism, write the notch positions of the parallelism adjustment bushings when PG
Adjustment (p235) is performed into EEPROM to correct the PG position during APG
operation.
 Preparation
After PG Adjustment (p235) is complete, check the notch position of the parallelism
adjustment bushing at the rear on the 0-column side and note down the offset value
according to the figure below.

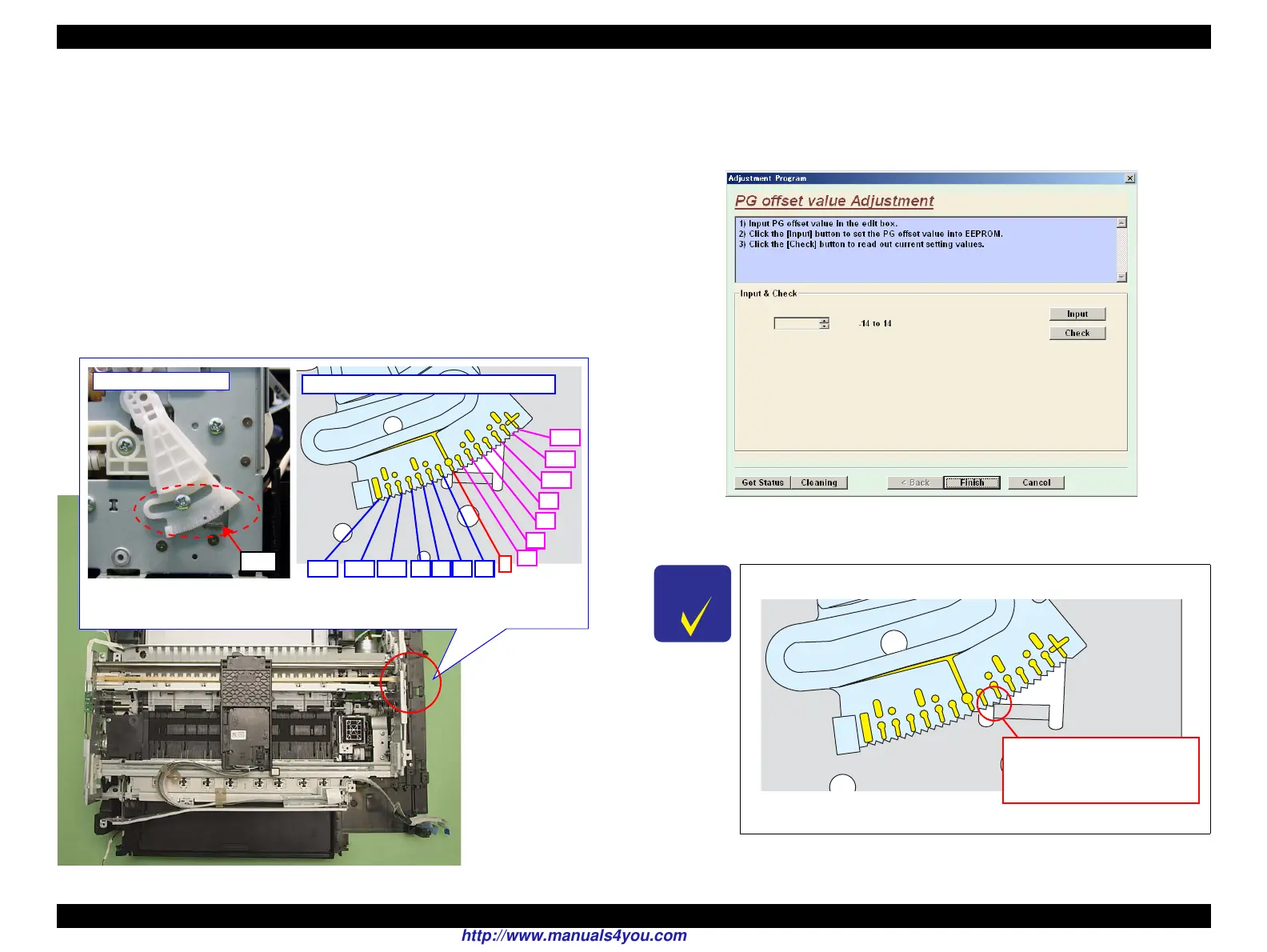

Figure 5-11. Checking the PG Offset
 Setting procedure
1. Start the adjustment program, and select “PG offset value Adjustment” from the
menu.
Figure 5-12. PG offset value Adjustment Screen
2. Enter the PG offset value noted down in advance, and press “Input” button.
Rear on 0-column side
Rib
+4
0
-8 -4-12 -10 -6 -2
Conversion of notch position to offset value
-14
+14
+12
+10
+8
+2
+6
Bushing at the rear on 0-column side has scales in every 2 offsets (notches). As offset
value 0 in center and 1 notch for 1 offset, note down the notch position of bushing
engaged on the rib on the frame.
C H E C K
P O I N T
The following is a sample of the PG offset value.
Figure 5-13. Sample of the PG offset value
Enter “+3” into adjustment
program because the notch
position of bushing engaged on
the rib is +3 from the center.
