MAINTENANCE Overview 256
Confidential

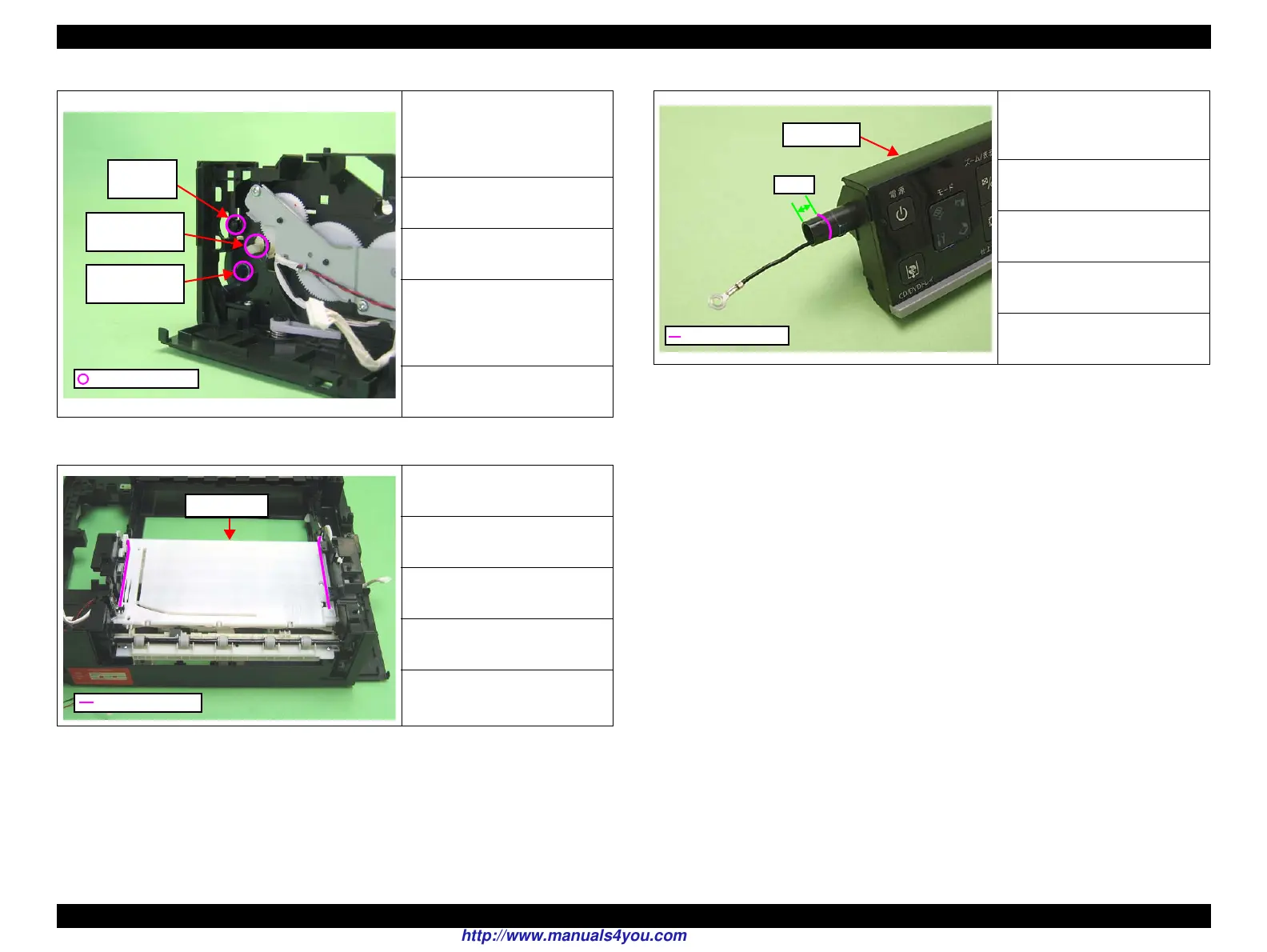

Figure 6-21. Lubrication of the Base Frame
Figure 6-22. Lubrication of the CDR Guide
Figure 6-23. Lubrication of the Panel Unit (Artisan 700/PX700W/TX700W)
<Lubrication Points>
Contact points between the Base
Frame and the Combination Gear
A, B and Spur Gear A
<Type>
G-71
<Application Amount>
φ 1 x 1 circle
<Application Timing>
Before installing the LD Roller
Shaft and the Intermediate Roller
Shaft
<Remarks>
Apply with injector
<Lubrication Points>
On the CDR Guide
<Type>
G-74
<Application Amount>
Sufficient quantity all along
<Application Timing>
Before installing the CDR Guide
<Remarks>
Apply with injector
Application Point
Spur Gear
A’s shaft
Combination
Gear A’s shaft
Combination
Gear B’s shaft
CDR Guide
Application Point
<Lubrication Points>
On the shaft of the Panel Unit
(3mm away from the left end)
<Type>
G-71
<Application Amount>
φ 1 x 10mm
<Application Timing>
Before installing the Panel Unit
<Remarks>
Apply with injector
Application Point
Panel Unit
3mm
