Epson BrightLink 710Ui User Manual

174

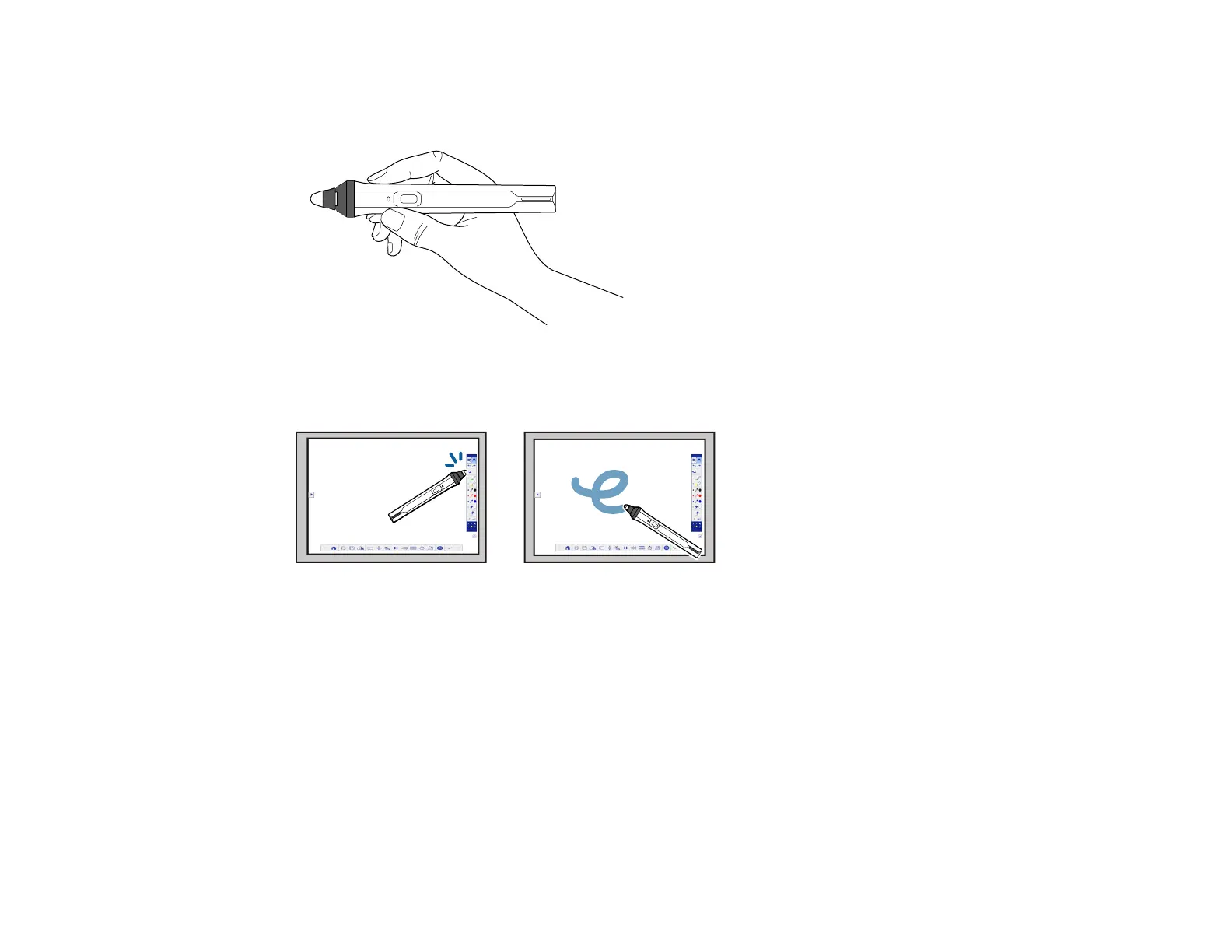

• For best performance, hold the pen perpendicular to the board, as shown below. Do not cover the
black section near the tip of the pen.
• To write or draw on the projection surface in built-in annotation mode or built-in whiteboard mode, do
the following:
• To select a projected item, such as an icon, tap the projection surface with the pen tip.
• To draw on the projected screen, tap the projection surface with the pen and drag it as necessary.
• To move the pointer, hover over the surface without touching it.
• To switch the pen from drawing tool to eraser, press the button on the side.
Note: You can change the function of the button by changing the Pen Button Function setting in
the Extended menu.

Epson BrightLink 710Ui Specifications

General

Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection technology	3LCD
Contrast ratio (dynamic)	2500000:1
Contrast ratio (typical)	-
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-3 - 3 °
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Placement	Ceiling, Wall
Product type	Short throw projector
Product color	White
Cable lock slot	Yes
Market positioning	Short throw
Cable lock slot type	Kensington
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
3D	No
Supported video modes	1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
Ethernet LAN (RJ-45) ports	1
RMS rated power	16 W
Noise level	38 dB
Noise level (economic mode)	27 dB
Operating temperature (T-T)	0 - 45 °C
Throw ratio	0.22 - 0.37:1
Fixed focal length	4.2 mm
Focal length range	- mm
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	448 W
Power consumption (PowerSave)	348 W
HDMI ports quantity	3
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0

Weight and Dimensions

Depth	439.42 mm
Width	495.3 mm
Height	172.72 mm
Weight	11203 g
